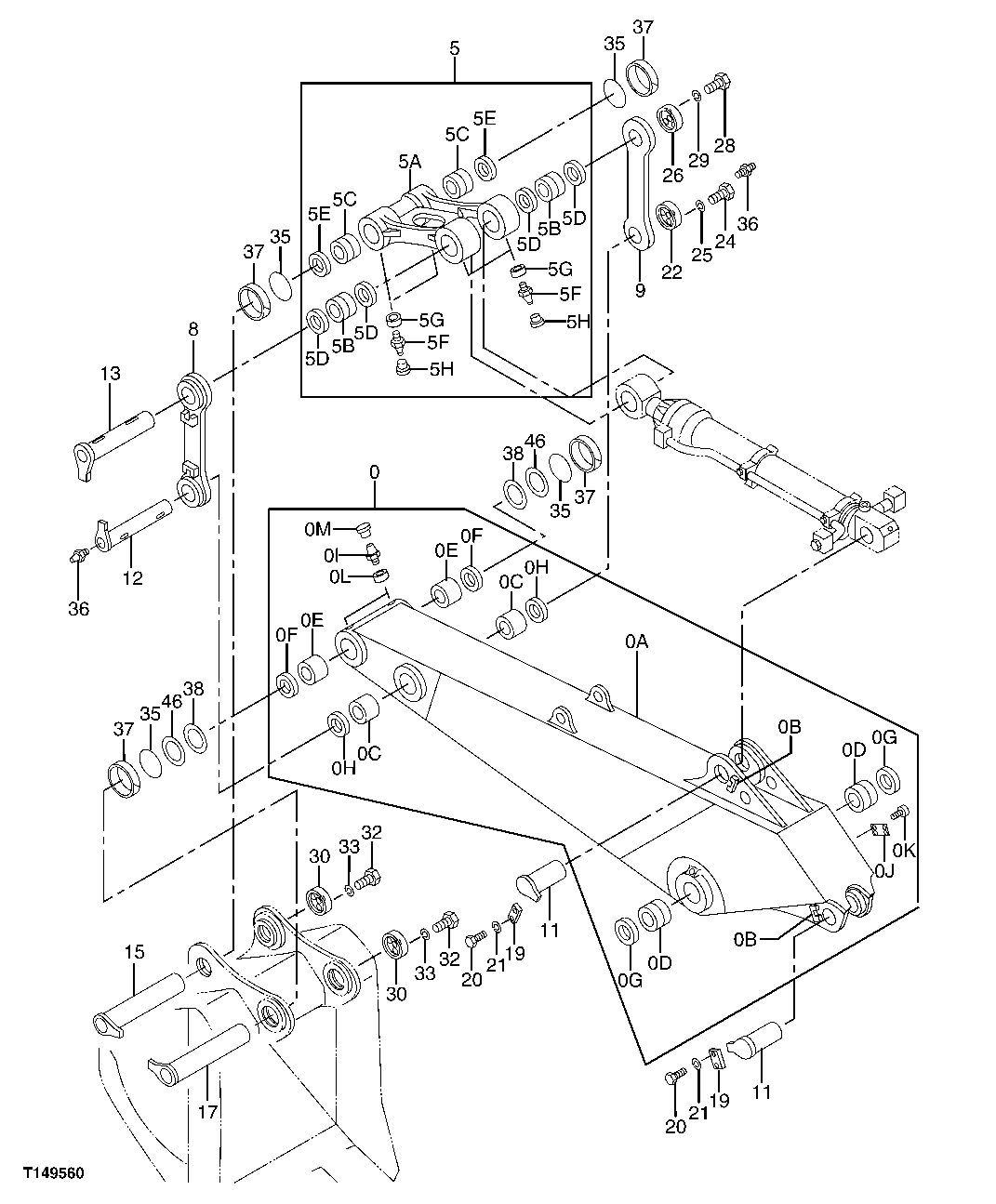

Запчасти John Deere 00C 247 - HEAVY DUTY ARM 3.6M 3340 EXCAVATOR FRAMES

0

9206143

Arm

For HD Arm

1шт.

9233746

Arm

For Reinforced HD Arm

1шт.

0A

Arm

1шт.

0B

4379221

Stop

(SUB FOR TH4379221)

2шт.

0C

4129729

Bushing

2шт.

0D

4218719

Bushing

(SUB FOR TH4129729)

2шт.

0E

4421175

Bushing

2шт.

0F

4254520

Seal

2шт.

0G

4251766

Seal

(SUB FOR AT202303)

2шт.

0H

4251212

Seal

(SUB FOR TH4251766)

2шт.

0I

TH100074

Lubrication Fitting

2шт.

0J

4454761

Plate

(SUB FOR AT217082)

1шт.

0K

37H99

Screw

0.100" X 1/4" (SUB FOR AT217081)

2шт.

0L

4130686

Plate

2шт.

0M

4105912

Cap

2шт.

5

9206144

Link

For HD Arm

1шт.

9205875

Link

For Reinforced HD Arm

1шт.

5A

1029818

Link

For HD Arm

1шт.

7041049

Link

For Reinforced HD Arm

1шт.

5B

4234708

Bushing

(SUB FOR TH4234708)

2шт.

5C

4461278

Bushing

2шт.

5D

4251753

Seal

(SUB FOR TH4251753)

4шт.

5E

4251767

Seal

(SUB FOR TH4251767)

2шт.

5F

TH100074

Lubrication Fitting

4шт.

5G

4130686

Bushing

(SUB FOR AT217082)

4шт.

5H

4105912

Cap

(SUB FOR AT217081)

4шт.

8

8065547

Link

For HD Arm (SUB FOR TH8065547)

1шт.

8086908

Link

For Reinforced HD Arm

1шт.

9

8065548

Link

For HD Arm (SUB FOR TH8065548)

1шт.

8085373

Link

For Reinforced HD Arm

1шт.

11

8067795

Pin Fastener

(SUB FOR TH8067795)

2шт.

12

8067798

Pin Fastener

(SUB FOR TH8067798)

1шт.

13

8085461

Pin Fastener

(SUB FOR TH8067801 AND 8067801)

1шт.

15

8085571

Pin Fastener

For HD Arm

1шт.

8085602

Pin

For Reinforced HD Arm

1шт.

17

8058964

Pin Fastener

For HD Arm (SUB FOR TH8058964)

1шт.

8083180

Pin

For Reinforced HD Arm

1шт.

19

4122729

Strap

(SUB FOR AT131696)

2шт.

20

19M7950

Cap Screw

M20 X 45

4шт.

21

12M7070

Lock Washer

20 mm

4шт.

22

4393378J

Stop

(SUB FOR TH4393378 OR 4393378)

1шт.

24

J241645

Bolt

(SUB FOR THM111645 OR M111645)

3шт.

25

12H294

Lock Washer

5/8"

3шт.

26

4393383

Stop

1шт.

28

19M7950

Cap Screw

M20 X 45

3шт.

29

12M7070

Lock Washer

20 mm

3шт.

30

4393381

Stop

For HD Arm

2шт.

4387180

Stop

For Reinforced HD Arm

2шт.

32

19M7950

Cap Screw

M20 X 45 For HD Arm

6шт.

4295167

Cap Screw

For Reinforced HD Arm

2шт.

33

12M7070

Lock Washer

20 mm For HD Arm

6шт.

14M7277

Nut

M20 For Reinforced HD Arm

4шт.

35

4487585

O-Ring

(SUB FOR TH4247424 AND 4247424)

4шт.

36

TH100074

Lubrication Fitting

2шт.

37

Ring

( 4252730 NLA) (SUB FOR TH4252730)

4шт.

38

4379158

Thrust Washer

(SUB FOR TH4379158)

2шт.

46

4379157

Thrust Washer

(SUB FOR TH4379157)

2шт.

50

AT188508

Arm

WHOLE GOODS (INCLUDES ARM, BUCKET C YLINDER, HOSES, AND LINKAGE) (DOES N OT INCLUDE BUCKET) (NOT ILLUSTRATED)

1шт.
