Запчасти John Deere 00C 245 - SINGLE PEDAL CONTROL KIT 3315 CONTROLS LINKAGE

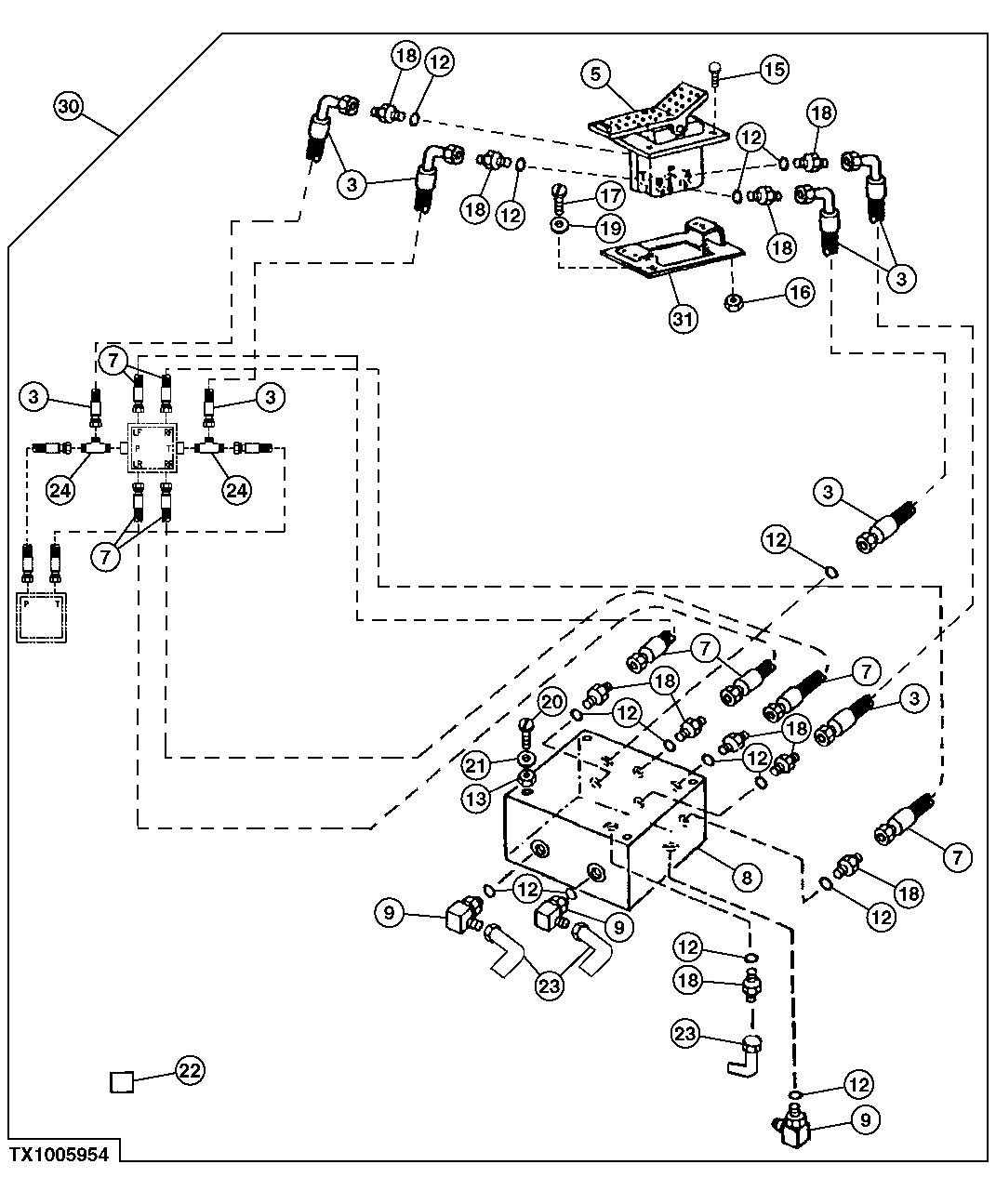

Схема запчастей John Deere 00C - 245 - SINGLE PEDAL CONTROL KIT 3315 CONTROLS LINKAGE

Артикул

Название

Примечание

Количество

3

AT71082

Hydraulic Hose

9/16" X 711 mm (28") X 9/16"

4шт.

5

AT152120

Valve

(FOOT)

1шт.

7

AT215538

Hydraulic Hose

9/16" X 880 mm (34-3/4") X 9/16"

4шт.

8

AT170459

Hyd Actuated Control Valve

INCLUDES (4) AT158988

1шт.

AT158988

Hydraulic Pressure Valve

4шт.

9

AT35121

Elbow Fitting

3шт.

12

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

14шт.

13

14M7273

Nut

M8

4шт.

15

19M7866

Screw

M8 X 20

4шт.

16

14M7298

Flange Nut

M8

4шт.

17

19M7784

Screw

M10 X 20

2шт.

18

R27212

Fitting

11шт.

19

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

20

19M8456

Cap Screw

M8 X 100

4шт.

21

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

22

T153674

Label

(WITHOUT AUXILIARY HYDRAULICS) (LO WER FRONT OF RIGHT SIDE CAB WINDOW)

1шт.

T153676

Label

(WITH AUXILIARY HYDRAULICS) (LOWE R FRONT OF RIGHT SIDE CAB WINDOW)

1шт.

23

AE24616

Elbow Fitting

3шт.

24

AT36921

Tee Fitting

2шт.

30

Field Installation Kit

(WHOLE GOODS) (SINGLE PEDAL PROPEL KIT) ( AT196435 NLA)

1шт.

31

AT115535

Support

1шт.

Выбрано товаров: 21
