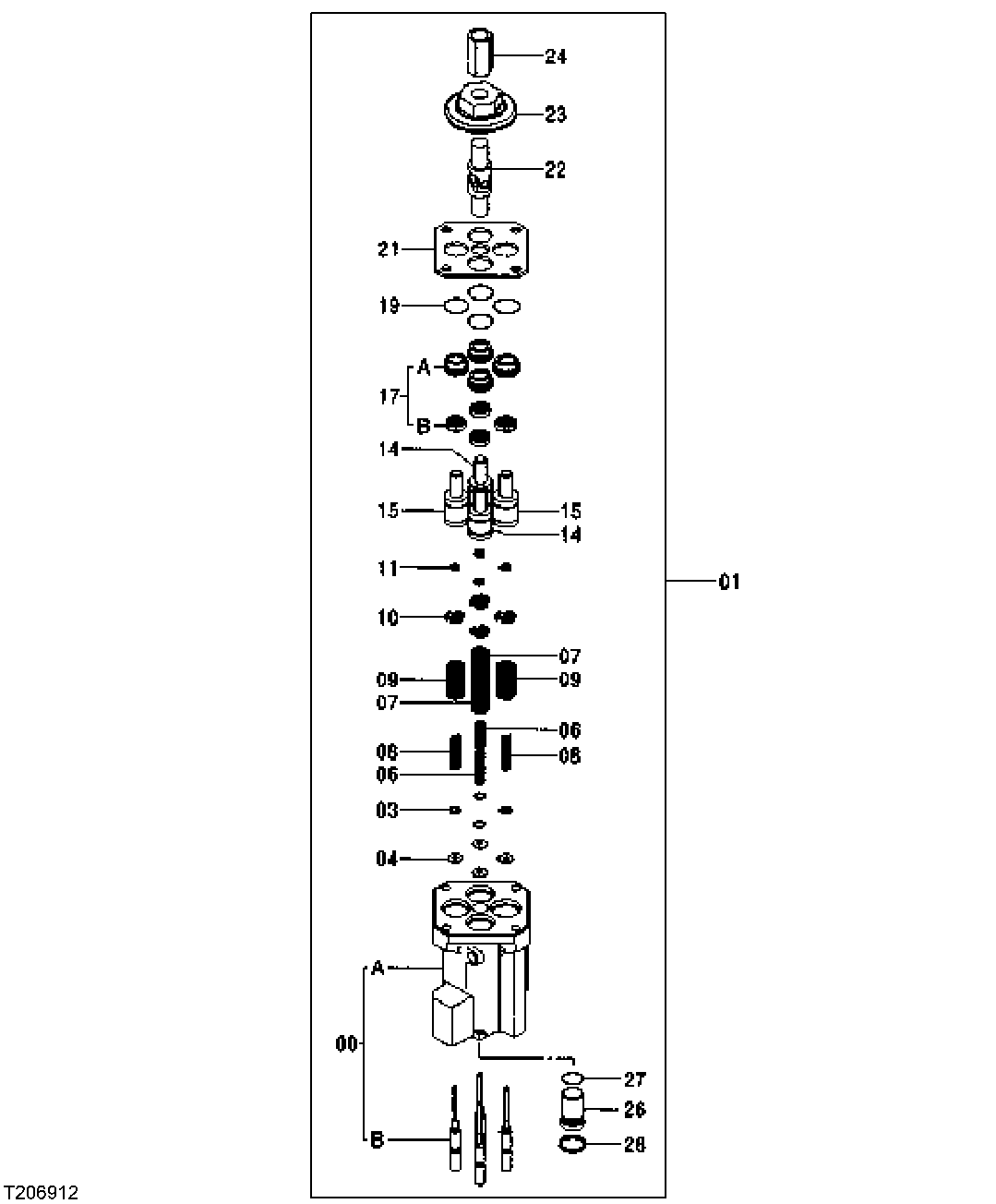

Запчасти John Deere 00C 240 - PILOT CONTROLLER VALVE COMPONENTS (DIG AND SWING) (SN 971045- ) 3315 CONTROLS LINKAGE

0

Case

( 8094446 NLA)

1шт.

0A

Housing

Not Currently Available

1шт.

0B

Spool

Not Currently Available

4шт.

1

9239583

Hydr./Pilot Control Valve

1шт.

3

4662206

Shim

(SUB FOR 4203411)

4шт.

4

4410898

Spacer

4шт.

6

4429120

Spring

2шт.

7

4446960

Spring

2шт.

8

4425414

Spring

2шт.

9

4421771

Spring

2шт.

10

4615610

Guide

4шт.

11

4437333

Snap Ring

4шт.

14

9759157

Piston

2шт.

15

9759158

Piston

2шт.

17

9246436

Sleeve

4шт.

17A

Sleeve

Not Currently Available

1шт.

17B

Seal

Not Currently Available

1шт.

19

4201993

O-Ring

4шт.

21

4614296

Plate

1шт.

22

4335060

Universal Joint

1шт.

23

4639115

Cam

(SUB FOR 4437106)

1шт.

24

4182067

Jointer

1шт.

26

4614286

Plug

1шт.

27

4170585

O-Ring

1шт.

28

4614331

Snap Ring

1шт.
