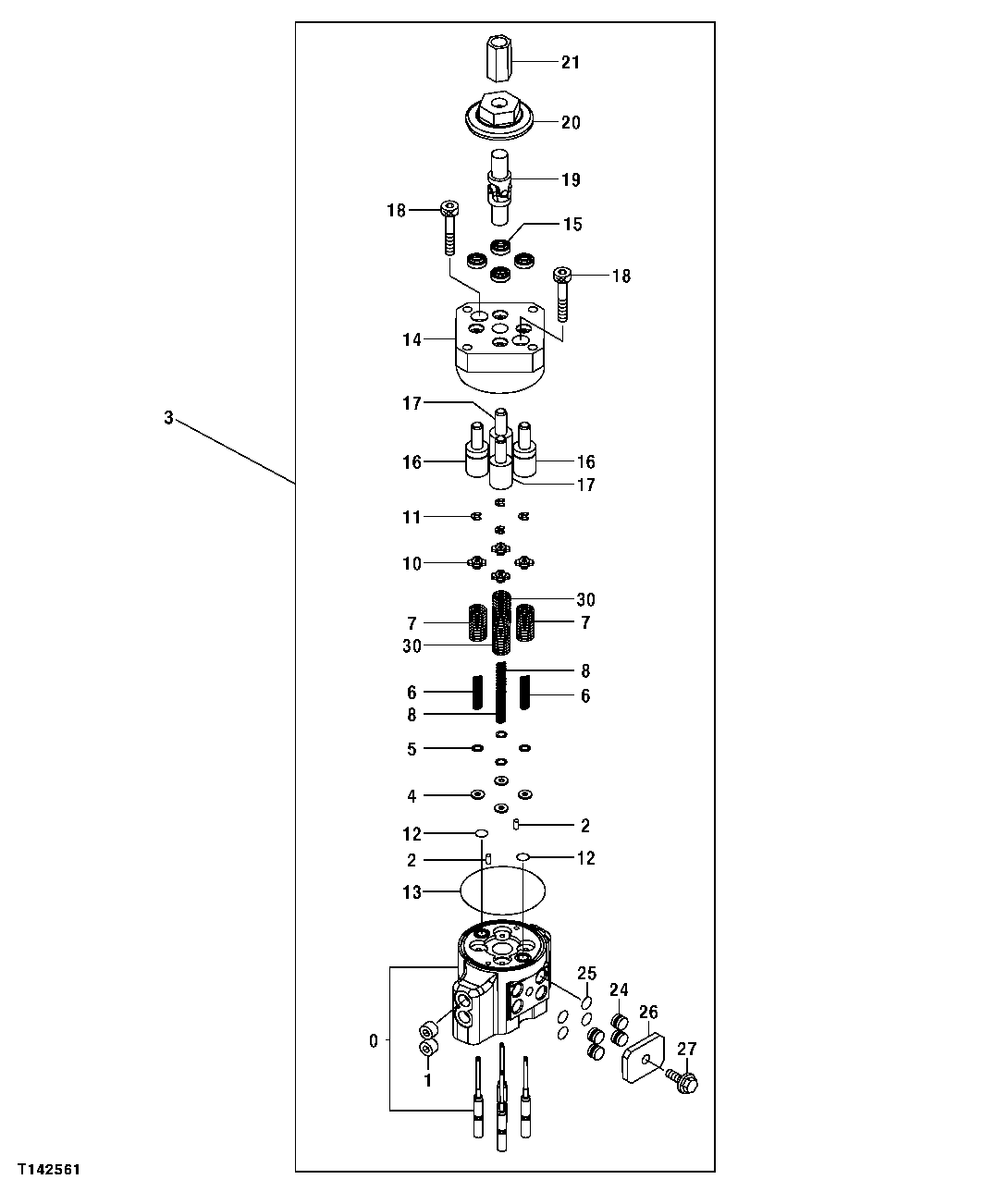

Запчасти John Deere 00C 239 - PILOT CONTROLLER VALVE COMPONENTS (DIG AND SWING) (SN -971044) 3315 CONTROLS LINKAGE

0

Case

(TH8081319 NLA)

1шт.

1

942011

Fitting Plug

(SUB FOR 94-2011)

2шт.

2

J400408

Pin

2шт.

3

9239583

Hydr./Pilot Control Valve

(SUB FOR 9195304) (ALSO ORDER (3) 19M7139, (3) 24M7055 AND 4609956)

1шт.

4

4410898

Spacer

4шт.

5

4173208

Shim

12шт.

6

4425414

Spring

2шт.

7

4421771

Spring

2шт.

8

4429120

Spring

2шт.

10

4429119

Guide

4шт.

11

4437333

Snap Ring

4шт.

12

4431914

O-Ring

2шт.

13

4431915

O-Ring

1шт.

14

Manifold

( 2044350 NLA) (SUB 9234284, 4477 852, 9759158 AND 9759157 (MANIFOLD HAS ONE PUNCH MARK ON TOP FACE))

1шт.

9234284

Manifold

Manifold Has Two Punch Marks On Top F ace (SUB FOR 2044350) (ALSO ORDER (4) 4477852, (2) 9759158 AND (2) 9759157)

1шт.

15

4447050

Seal

(SUB 9234284, (4) 4477852, (2) 975915 8 AND (2) 9759157) (USE WITH 2044350)

4шт.

Seal

(4477852 NLA) (SUB FOR 4447050 ) (ORDER 9234284, (2) 9759158 AN D (2) 9759157) (USE WITH 9234284 )

4шт.

16

Piston

( 9754825 NLA) (SUB 9234284, (4) 4477852, (2 ) 9759158 AND (2) 9759157 (USE WITH 2044350)

2шт.

9759157

Piston

(SUB FOR 9754825 ) (ALSO ORDER (4) 4477852, 9234284 AND (2) 9759158) (USE WITH 9234284)

2шт.

17

Piston

(9754826 NLA) (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157) (USE WITH 2044350)

2шт.

9759158

Piston

(SUB FOR 9754826) (ALSO ORDER (4) 4477852, (2) 9759158 AND 9234284) (USE WITH 9234284)

2шт.

18

19M8923

Screw

M8 X 45 (SUB FOR J780845)

2шт.

19

4335060

Universal Joint

1шт.

20

4639115

Cam

(SUB FOR 4437106)

1шт.

21

4182067

Jointer

1шт.

24

4442323

Pipe Plug

4шт.

25

CH11560

Packing

4шт.

26

4442339

Plate

1шт.

27

19M7932

Cap Screw

M8 X 16

1шт.

30

4446960

Spring

2шт.
