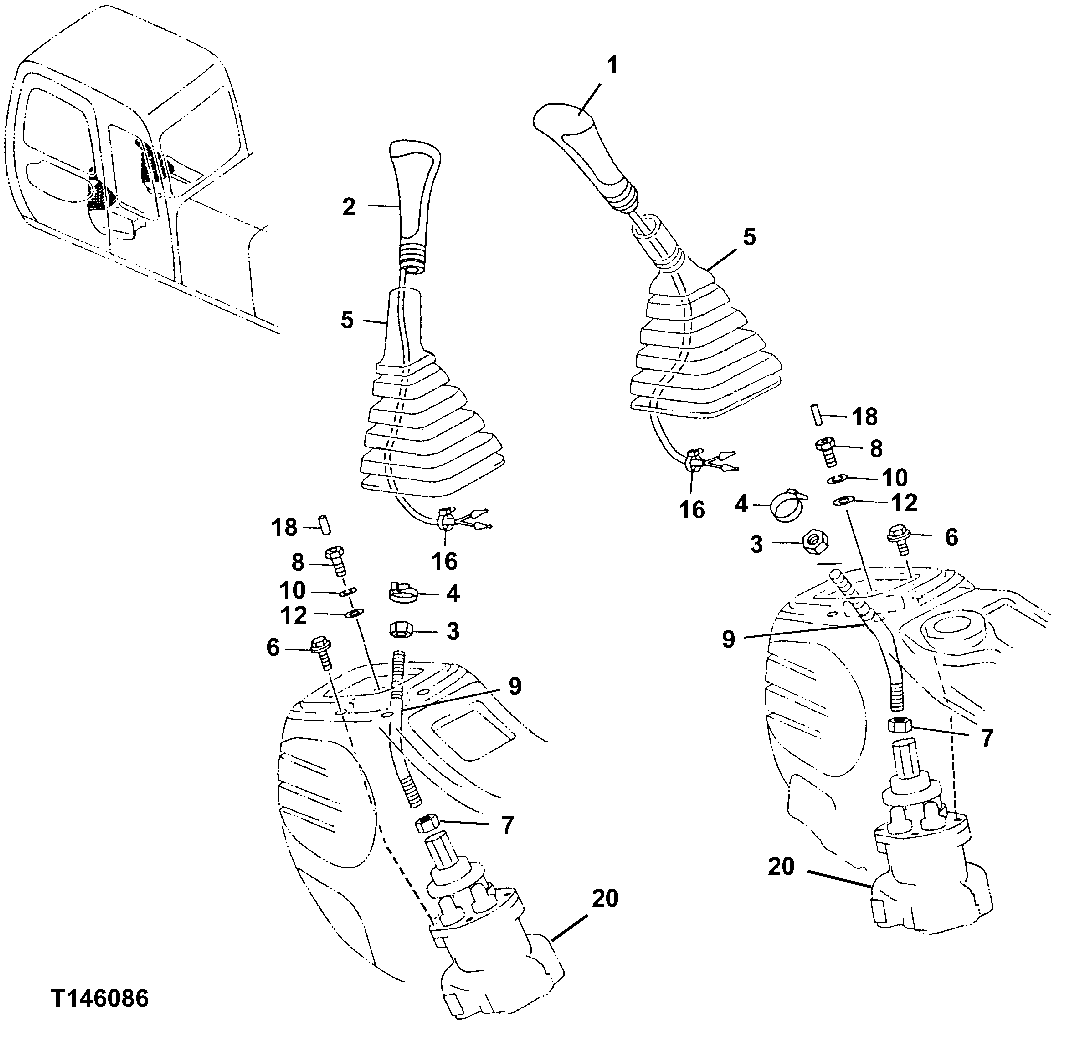

Запчасти John Deere 00C 238 - CONTROL LEVER (FRONT AND SWING) 3315 CONTROLS LINKAGE

1

2046576

Grip

(INCLUDES POWER LIFT SWITCH)

1шт.

2

2045472

Grip

(SUB FOR TH2045472)(INCLUDES HORN BUTTON)

1шт.

3

14M7357

Nut

M12

2шт.

4

H77698

Tie Band

SUB FOR M88199

2шт.

5

2045470

Boot

SUB FOR TH2045470

2шт.

6

Washer

12M7065 NLA

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

6шт.

19M7139

Cap Screw

M8 X 20 SUB FOR J260820 OR J900820

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

6шт.

7

14M7141

Nut

M14

2шт.

8

4438279

Bolt

SUB FOR TH4438279

2шт.

4609956

Bolt

2шт.

9

4445322

Lever

SUB FOR TH4445322

2шт.

10

Washer

12M7065 NLA

2шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

16

H77698

Tie Band

2шт.

18

34M7086

Spring Pin

3 X 32 mm

2шт.

20

9195304

Hydr./Pilot Control Valve

Use If Available SUB 9239583

2шт.

9239583

Hydr./Pilot Control Valve

SUB FOR TH9195304 OR 9195304; ALSO ORD ER (3) 19M7139, (3) 24M7055 AND 4609956

2шт.
