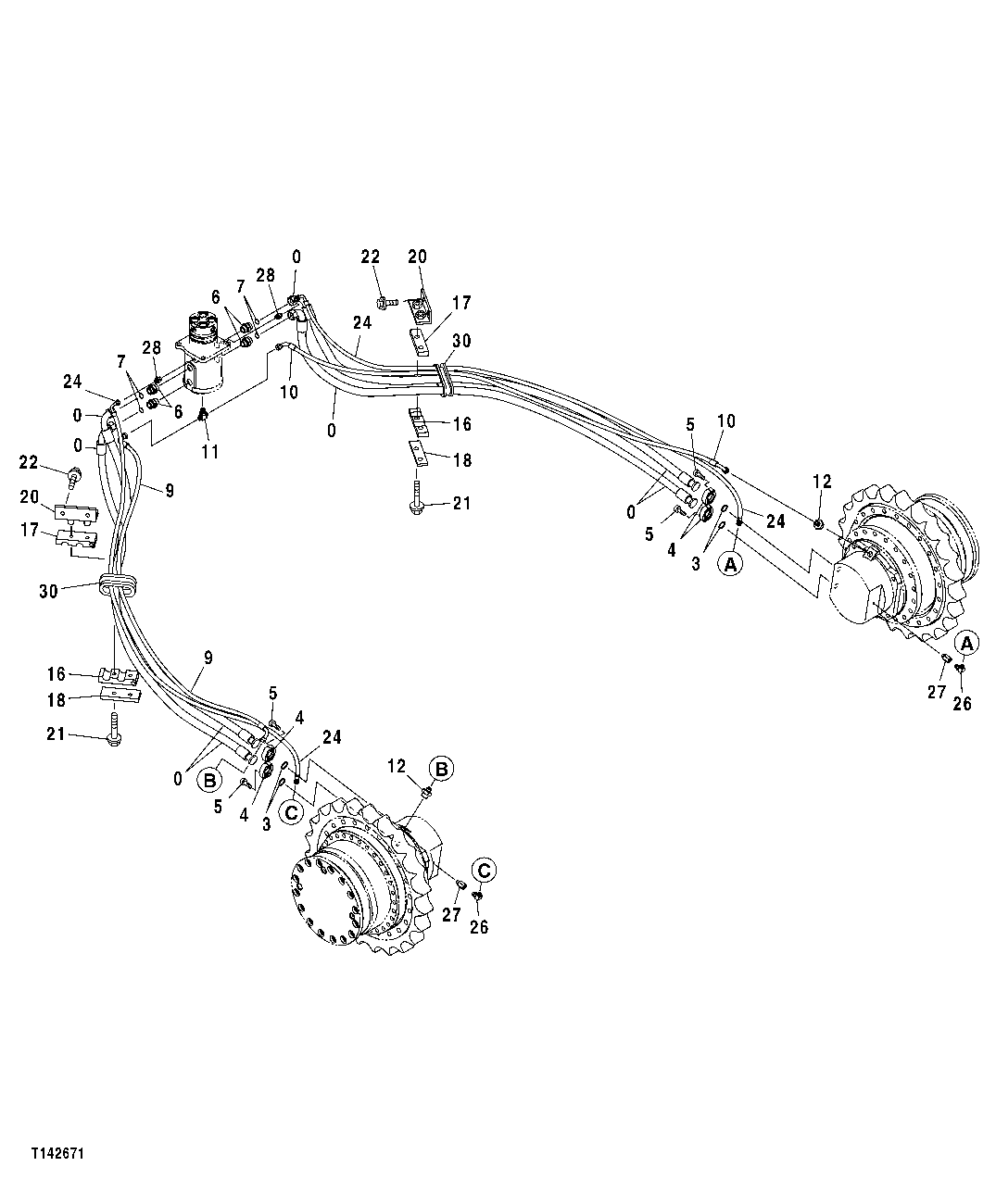

Запчасти John Deere 00C 15 - PROPEL DRIVE HOSES 0260 AXLES, DIFF. AND SUSP. SYS. HYD. (INCL. FWD)

0

4445907

Hydraulic Hose

4шт.

3

966993

O-Ring

4шт.

4

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

5

19M8395

Screw

M12 X 40

16шт.

6

4189535

Adapter Fitting

(SUB FOR AT114853)

4шт.

TH101926

O-Ring

1шт.

7

T76938

O-Ring

4шт.

9

4445910

Hydraulic Hose

1шт.

10

4445912

Hydraulic Hose

1шт.

11

A852544

Tee Fitting

(SUB FOR THA852544)

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.

12

4279302

Adapter Fitting

(SUB FOR TH4317612 AND 4317612)

2шт.

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

16

4339413

Hose Clamp

(SUB FOR AT201818)

2шт.

17

4267673

Hose Clamp

(SUB FOR AT201725)

2шт.

18

4268908

Strap

(SUB FOR AT201727)

2шт.

20

8061456

Bracket

(SUB FOR AT202373)

2шт.

21

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

22

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

24

4445904

Hydraulic Hose

2шт.

26

A852133

Elbow Fitting

( THA852323 NLA)

2шт.

957366

O-Ring

1шт.

27

4202564

Adapter Fitting

(SUB FOR AT215879)

2шт.

27A

M800650

Packing

(NOT ILLUSTRATED) COMPONENTS OF AT215879

1шт.

28

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

CH11570

O-Ring

1шт.

30

H77698

Tie Band

2шт.
