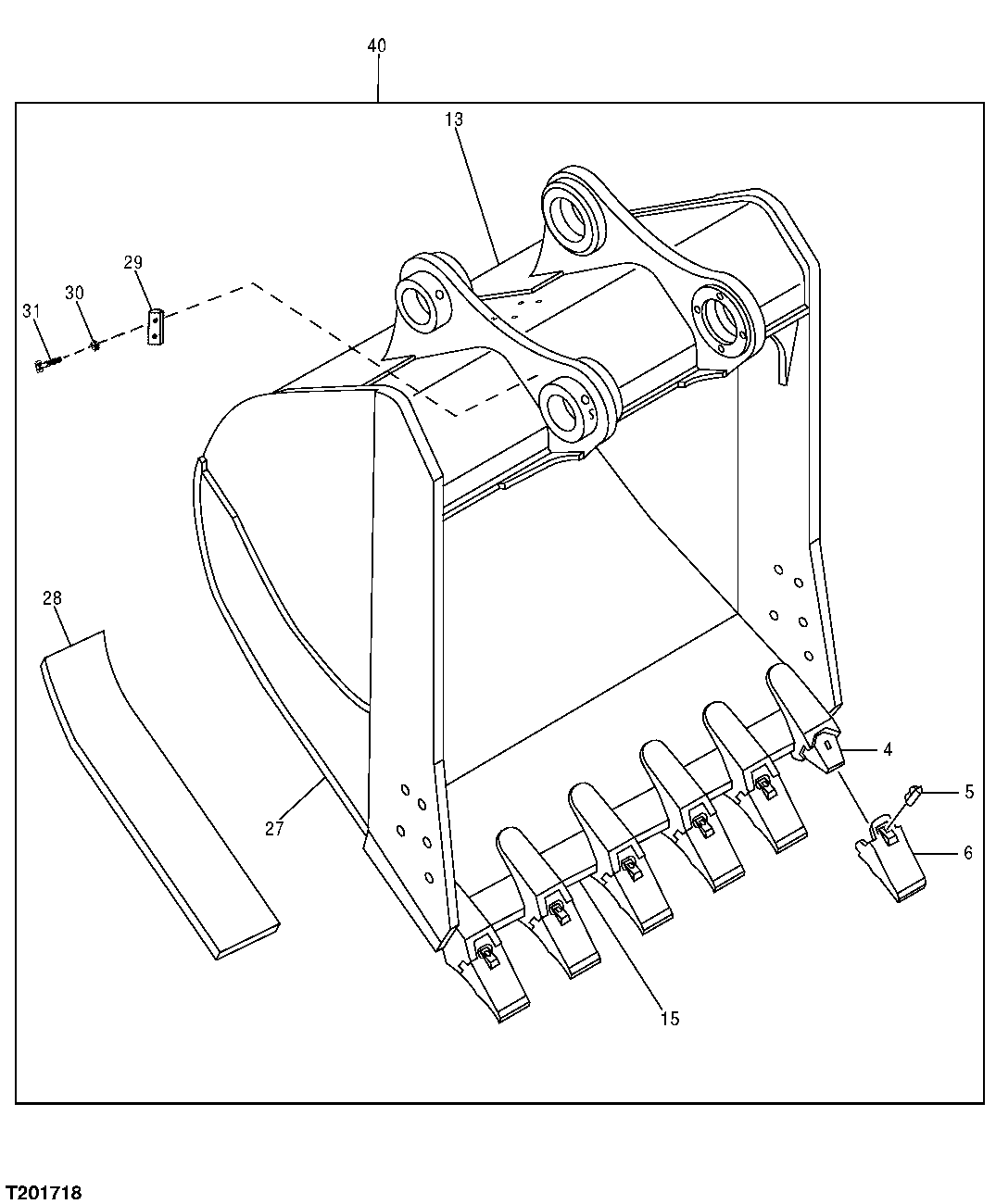

Запчасти John Deere 00C 234 - TRUCK LOADING BUCKET 3302 BUCKET WITH TEETH

4

EV8845-V59

Adapter Fitting

7шт.

5

EV59PN

Spring Pin

7шт.

6

EV59SYL

Tooth

7шт.

13

Excavator Bucket

(COMPLETE ASSEMBLY WITHOUT TEETH OR RETAINER ) (5.5 YARD) (84 INCHES WIDE) ( AT315737 NLA)

1шт.

15

C43951

Cutting Edge

(A)

1шт.

27

C326759

Wear Plate

(A) (SIDE)

2шт.

28

C326758

Wear Plate

(A) (VERTICAL)

1шт.

C43952

Wear Plate

(A) (HORIZONTAL)

1шт.

29

C20189

Retainer

(A)

1шт.

30

C18447

Washer

(A)

1шт.

31

C18446

Cap Screw

(A)

1шт.

40

Excavator Bucket

Complete Assembly With Teeth and Retainer (5.5 YARD) (84 INCHES WIDE) ( AT315743 NLA)

1шт.
