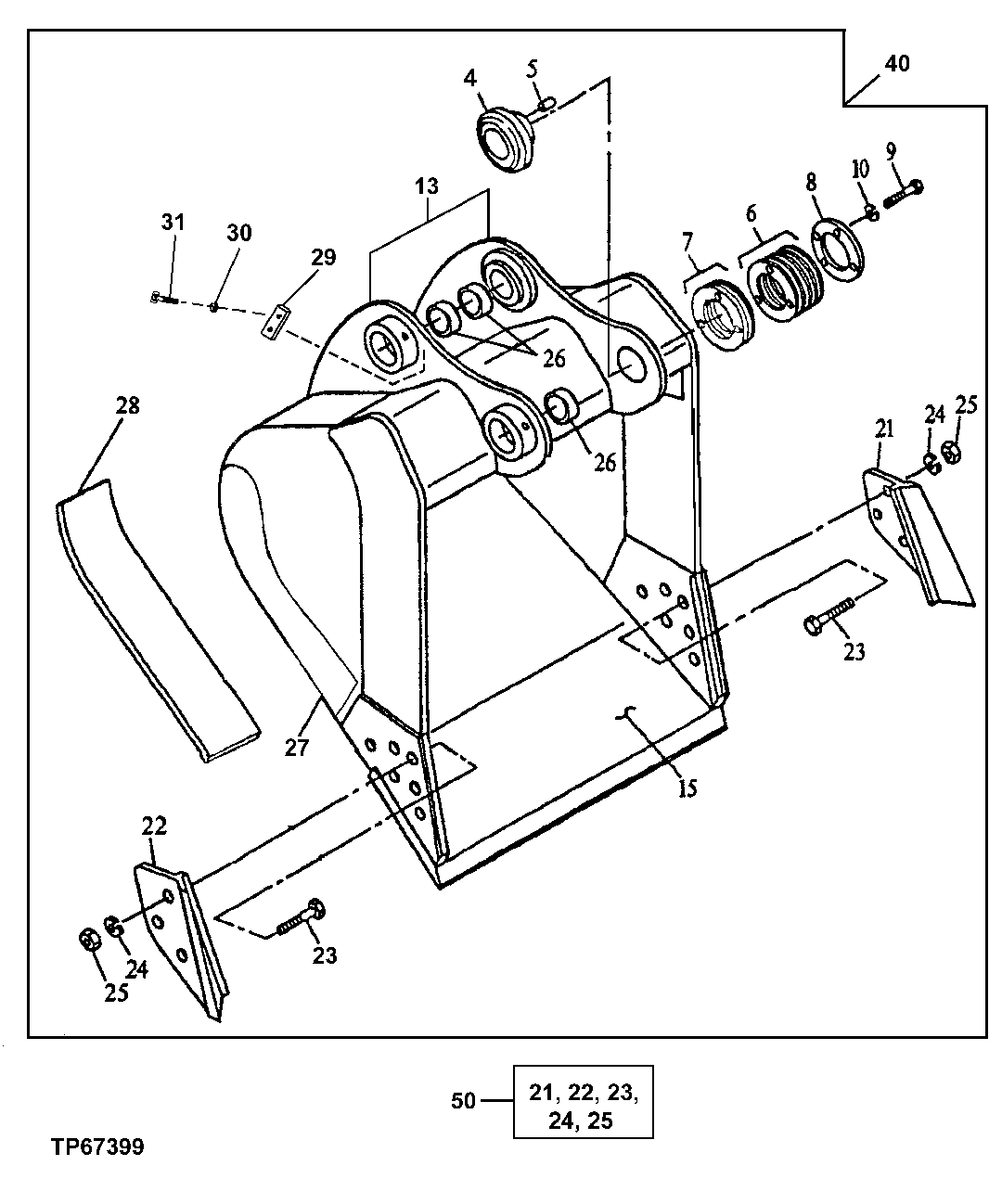

Запчасти John Deere 00C 227 - HEAVY DUTY BUCKET (USE WITH 179" LONG ARM) (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

AT189912

Bushing

1шт.

5

C31732

Dowel Pin

(B)

2шт.

6

4267761

Shim

(SUB FOR AT189913)

6шт.

7

C31733

Shim

(B)

2шт.

8

AT189914

Retainer

1шт.

9

19M7597

Cap Screw

M20 X 50

4шт.

10

12M7070

Lock Washer

20 mm

4шт.

13

10072

Pivot

(A) (B) (36 in - 1.97 yd³ BUCKET)

1шт.

10073

Pivot

(A) (B) (42 in - 2.43 yd³ BUCKET)

1шт.

10074

Pivot

(A) (B) (48 in - 2.90 yd³ BUCKET)

1шт.

10075

Pivot

(A) (B) (54 in - 3.38 yd³ BUCKET)

1шт.

10076

Pivot

(A) (B) (60 in - 3.86 yd³ BUCKET)

1шт.

10078

Pivot

(A) (B) (72 in - 4.84 yd³ BUCKET)

1шт.

15

C30651

Cutting Edge

(B) (36 in - 1.97 yd³ BUCKET)

1шт.

C30652

Cutting Edge

(B) (42 in - 2.43 yd³ BUCKET)

1шт.

C30653

Cutting Edge

(B) (48 in - 2.90 yd³ BUCKET)

1шт.

C30654

Cutting Edge

(B) (54 in - 3.38 yd³ BUCKET)

1шт.

C30655

Cutting Edge

(B) (60 in - 3.86 yd³ BUCKET)

1шт.

C30657

Cutting Edge

(B) (72 in - 4.84 yd³ BUCKET)

1шт.

21

Cutting Edge

(SUB AT189734)

1шт.
