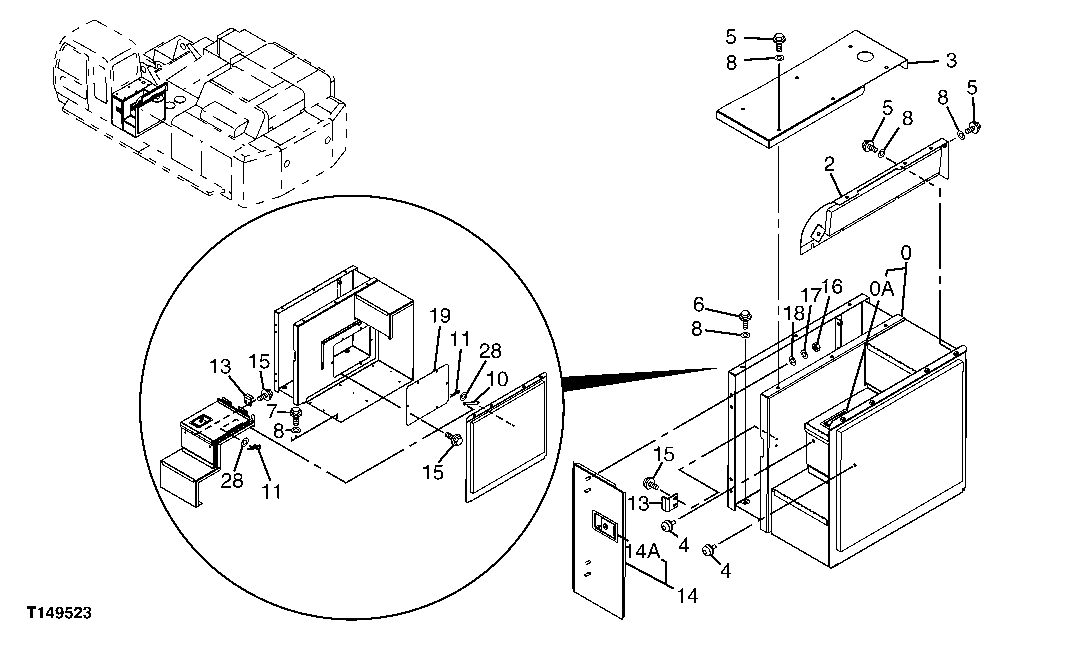

Запчасти John Deere 00C 215 - UTILITY COVER 1910 HOOD OR ENGINE ENCLOSURE

0

5007894

Cover

1шт.

0A

4361763

Lock

(SUB FOR TH110898)

1шт.

2

8095332

Cover

(SUB FOR 7040969)

1шт.

3

8082813

Cover

1шт.

4

4294508

Bumper

(SUB FOR AT201032)

2шт.

5

19M8011

Cap Screw

M12 X 30

15шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

15шт.

4249324

Washer

15шт.

6

19M7403

Cap Screw

M12 X 35

6шт.

12H301

Lock Washer

1/2"

6шт.

4249324

Washer

6шт.

7

19M7493

Cap Screw

M12 X 40

6шт.

12H301

Lock Washer

1/2"

6шт.

19M7403

Cap Screw

M12 X 35

6шт.

4249324

Washer

6шт.

8

4249324

Washer

(SUB FOR TH4249324)

29шт.

10

9755537

Latch

1шт.

11

H132922

Cotter Pin

2шт.

13

4459455

Bracket

2шт.

14

7039723

Door

1шт.

14A

4361763

Lock

(SUB FOR AT214010)

1шт.

15

19M7402

Cap Screw

M10 X 25

10шт.

12M7066

Lock Washer

10 mm

10шт.

24M7028

Washer

10.500 X 20 X 2 mm

10шт.

16

14M7275

Nut

M12

4шт.

17

12H301

Lock Washer

1/2"

4шт.

18

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

19

3091239

Cover

1шт.

28

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.
