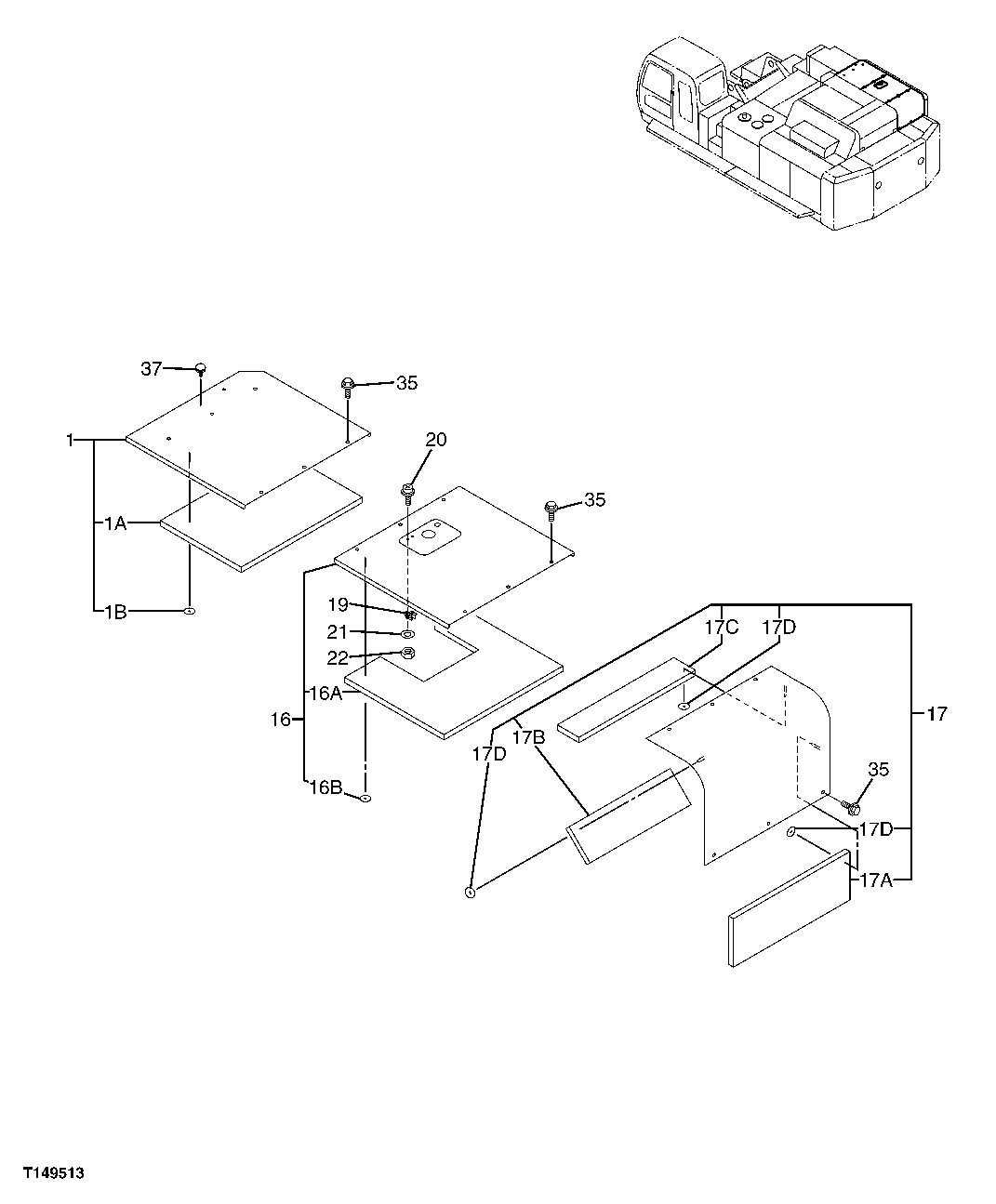

Запчасти John Deere 00C 208 - COVER 1910 HOOD OR ENGINE ENCLOSURE

1

8087451

Cover

1шт.

1A

4470279

Isolator

1шт.

1B

4156886

Spring Washer

(SUB FOR AT121962)

6шт.

16

8087361

Cover

1шт.

16A

4462857

Isolator

1шт.

16B

4156886

Spring Washer

(SUB FOR AT121962)

8шт.

17

7042051

Cover

1шт.

17A

4470221

Isolator

1шт.

17B

4470223

Isolator

1шт.

17C

4470225

Isolator

1шт.

17D

4156886

Spring Washer

(SUB FOR AT121962)

24шт.

19

4372725

Stop

(SUB FOR TH4372725)

1шт.

20

Screw

(SUB FOR AT156973)( J460410 NLA)

2шт.

21M7195

Screw

M5 X 16

2шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

2шт.

12H315

Lock Washer

0.164"

2шт.

21

24M7117

Washer

4.300 X 9 X 0.800 mm

2шт.

22

14M7139

Nut

M4 (SUB FOR 14M7100)

2шт.

35

19M8011

Cap Screw

M12 X 30

18шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

18шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

18шт.

37

4294508

Bumper

(SUB FOR AT201032)

1шт.
