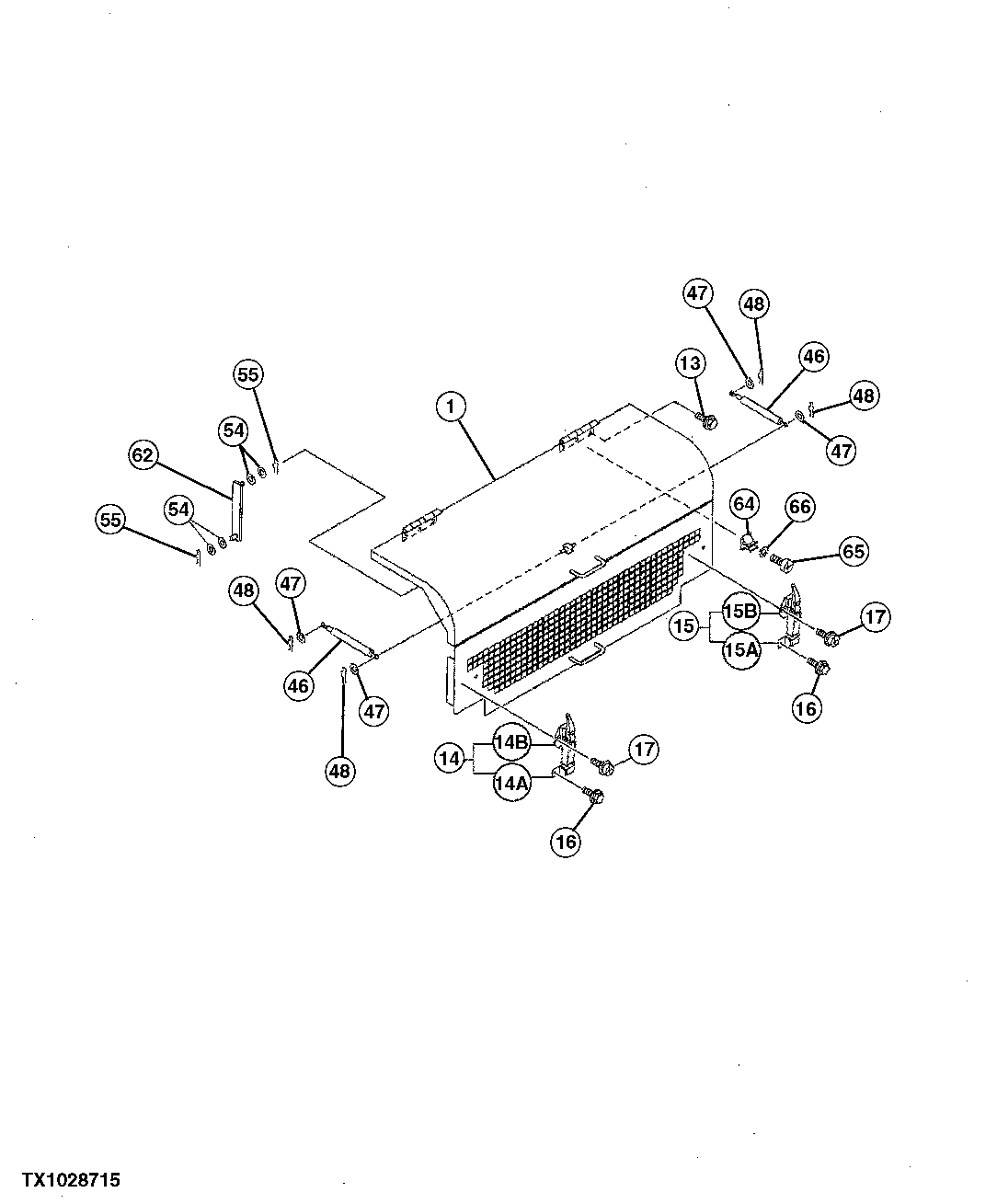

Запчасти John Deere 00C 204 - COVER 1910 HOOD OR ENGINE ENCLOSURE

1

6021420

Cover

1шт.

13

Screw With Washer

J271025 NLA

6шт.

19M7402

Cap Screw

M10 X 25 SUB FOR J901025

6шт.

24M7346

Washer

11 X 20 X 2 mm SUB FOR J222010

6шт.

14

4361438

Catch

1шт.

14A

3074568

Catch

1шт.

14B

3021131

Anchor

1шт.

15

4231750

Catch

1шт.

15A

3074568

Catch

SUB FOR 3044290

1шт.

15B

3021131

Anchor

1шт.

16

Screw With Washer

J260820 NLA

4шт.

19M7881

Screw

M8 X 20 SUB FOR J900820

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

4шт.

17

Screw With Washer

J460820 NLA

4шт.

21M7089

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

46

4335067

Cylinder

2шт.

47

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

4шт.

48

H132922

Cotter Pin

SUB FOR 4022697

4шт.

54

24M7241

Washer

17 X 34 X 4 mm SUB FOR 4087197

4шт.

55

M40461

Spring Locking Pin

SUB FOR 4022701

2шт.

62

9757671

Bracket

1шт.

64

4330276

Holder

1шт.

65

21M7396

Screw

M4 X 10 SUB FOR M430410

1шт.

66

24M7117

Washer

4.300 X 9 X 0.800 mm SUB FOR A590104

1шт.
