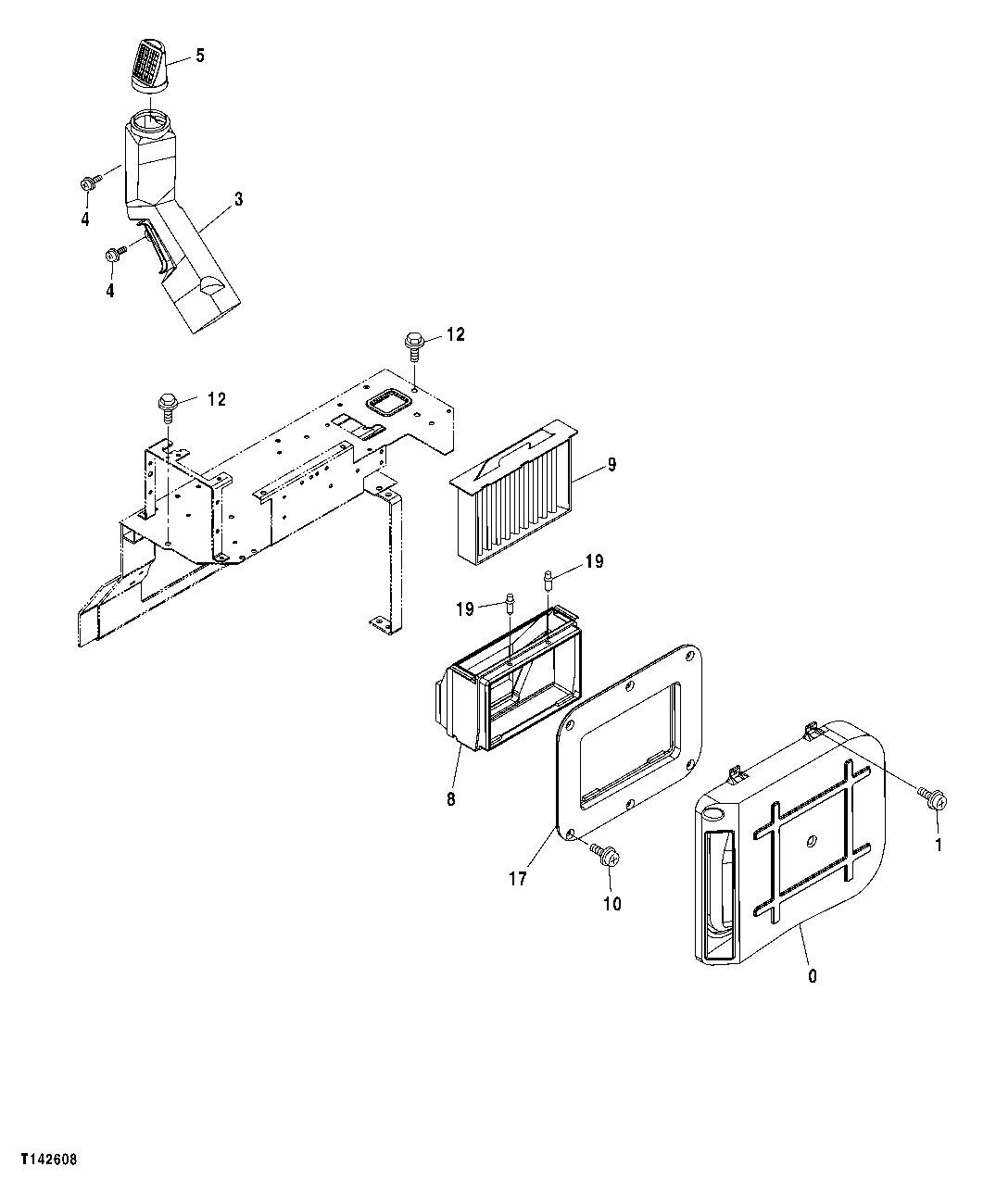

Запчасти John Deere 00C 194 - HVAC DUCT WORK AND FILTER 1830 HEATING AND AIR CONDITIONING

0

4426160

Air Duct

(SUB FOR TH4426160)

1шт.

1

19M8425

Cap Screw

M6 X 16

6шт.

12M7006

Lock Washer

6 mm

6шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.

3

4426159

Air Duct

(SUB FOR TH4426159)

1шт.

4653923

Grille

(NOT ILLUSTRATED)

1шт.

4

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

5

4449068

Air Duct

(SUB FOR TH4449068)

1шт.

8

4433064

Air Duct

(SUB FOR TH4433064)

1шт.

9

4S00640

Filter

(SUB FOR AT213943 OR 4350249)

1шт.

10

19M8425

Cap Screw

M6 X 16

6шт.

12M7006

Lock Washer

6 mm

6шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.

12

19M7402

Cap Screw

M10 X 25

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

17

4449348

Air Duct

(SUB FOR TH4449348)

1шт.

19

4445916

Clip

(SUB FOR TH4445916)

2шт.
