191 - AIR CONDITIONER UNIT AIR DUCTS AND HOSES

Запчасти John Deere 00C 191 - AIR CONDITIONER UNIT AIR DUCTS AND HOSES 1830 HEATING AND AIR CONDITIONING

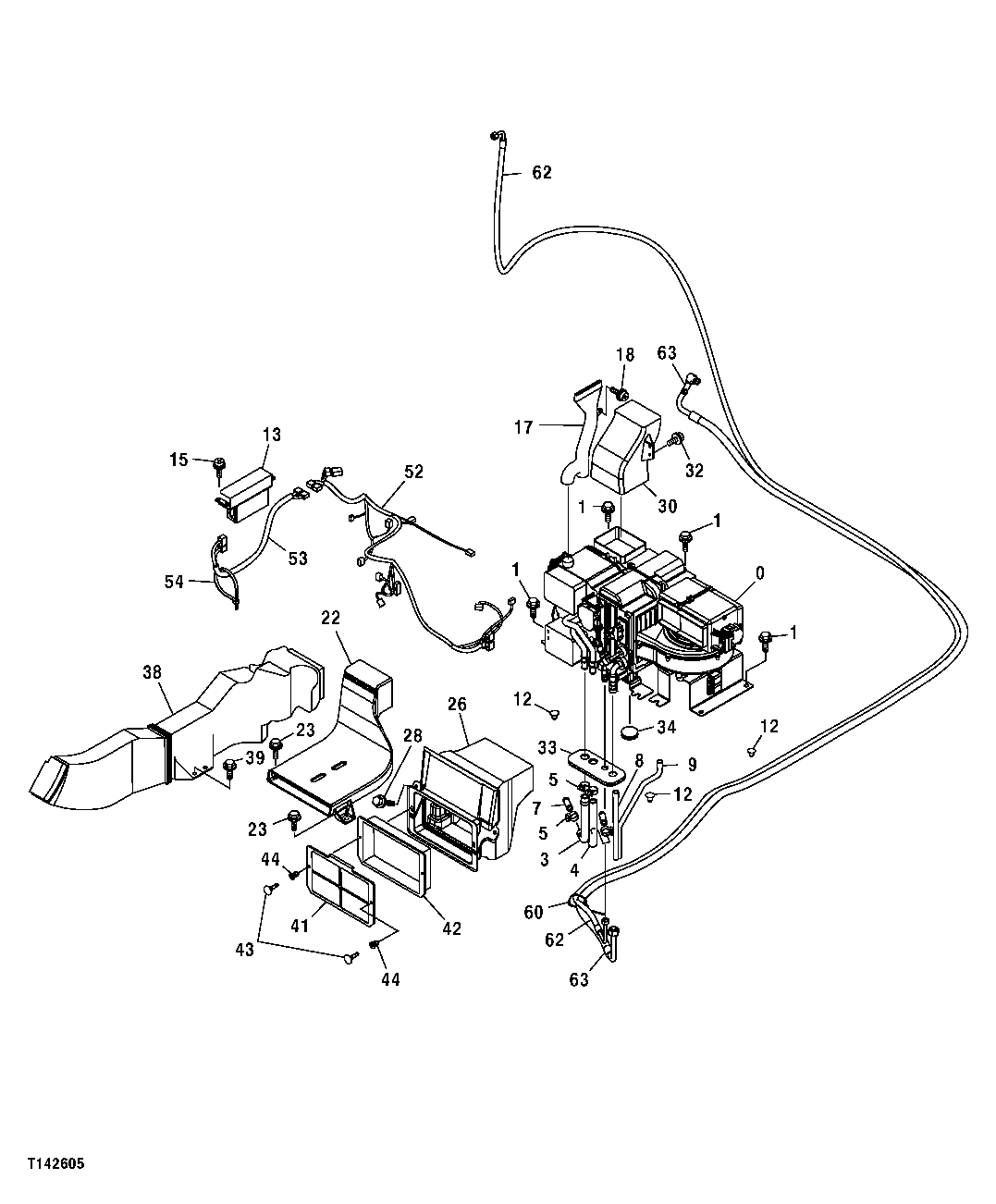

Схема запчастей John Deere 00C - 191 - AIR CONDITIONER UNIT AIR DUCTS AND HOSES 1830 HEATING AND AIR CONDITIONING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4436024

Air Conditioner

(SUB FOR TH4436024)

1шт.

1

19M7402

Cap Screw

M10 X 25

8шт.

12M7066

Lock Washer

10 mm

8шт.

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

3

4344638

Hose

(SUB FOR AT214027 OR 4366623)

1шт.

4

4344638

Hose

(SUB FOR AT213898)

1шт.

5

WZ2141223

Hose Clamp

(SUB FOR AA34965)

4шт.

7

4347396

Fitting

(SUB FOR TH4347396)

2шт.

8

4436306

Hose

(SUB FOR TH4436306)

1шт.

9

4436307

Hose

(SUB FOR TH4436307)

1шт.

12

4280359

Plug

(SUB FOR AT154351)

5шт.

13

4439093

Air Heater Controller

(SUB FOR TH4439093)

1шт.

15

21M7265

Screw

M5 X 12

4шт.

17

4436442

Air Duct

(SUB FOR TH4436442)

1шт.

18

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

22

4426155

Air Duct

(SUB FOR TH4426155)

1шт.

23

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

26

4431227

Air Duct

(SUB FOR TH4431227)

1шт.

28

19M7881

Screw

M8 X 20

2шт.

30

4426157

Air Duct

(SUB FOR TH4426157)

1шт.

32

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

33

2044923

Bushing

(SUB FOR TH2044923)

1шт.

34

4205084

Grommet

(SUB FOR TH108616)

1шт.

38

4426158

Air Duct

(SUB FOR TH4426158)

1шт.

39

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

41

4S00684

Grille

(SUB FOR TH4441139 AND 4441139)

1шт.

42

4S00683R

Filter

(SUB FOR 4484452, 44587 81 4484453 AND 4S00683)

1шт.

43

4441059

Clip

(SUB FOR TH4441059)

2шт.

44

4441061

Clip

(SUB FOR TH4441061)

2шт.

52

4454753

Wiring Harness

(SUB FOR TH4454753)

1шт.

53

4452188

Wiring Harness

(SUB FOR TH4452188)

1шт.

54

H77698

Tie Band

1шт.

60

H77698

Tie Band

1шт.

62

4478859

Hose

(SUB FOR 4436478)

1шт.

CH11568

Packing

1шт.

63

4450399

Refrigerant Hose

1шт.

CH11570

O-Ring

1шт.

4475235

Cap

Not Illustrated

1шт.
