Запчасти John Deere 00C 166 - CAB COMPONENTS (RIGHT WINDOW) 1810 OPERATOR ENCLOSURE

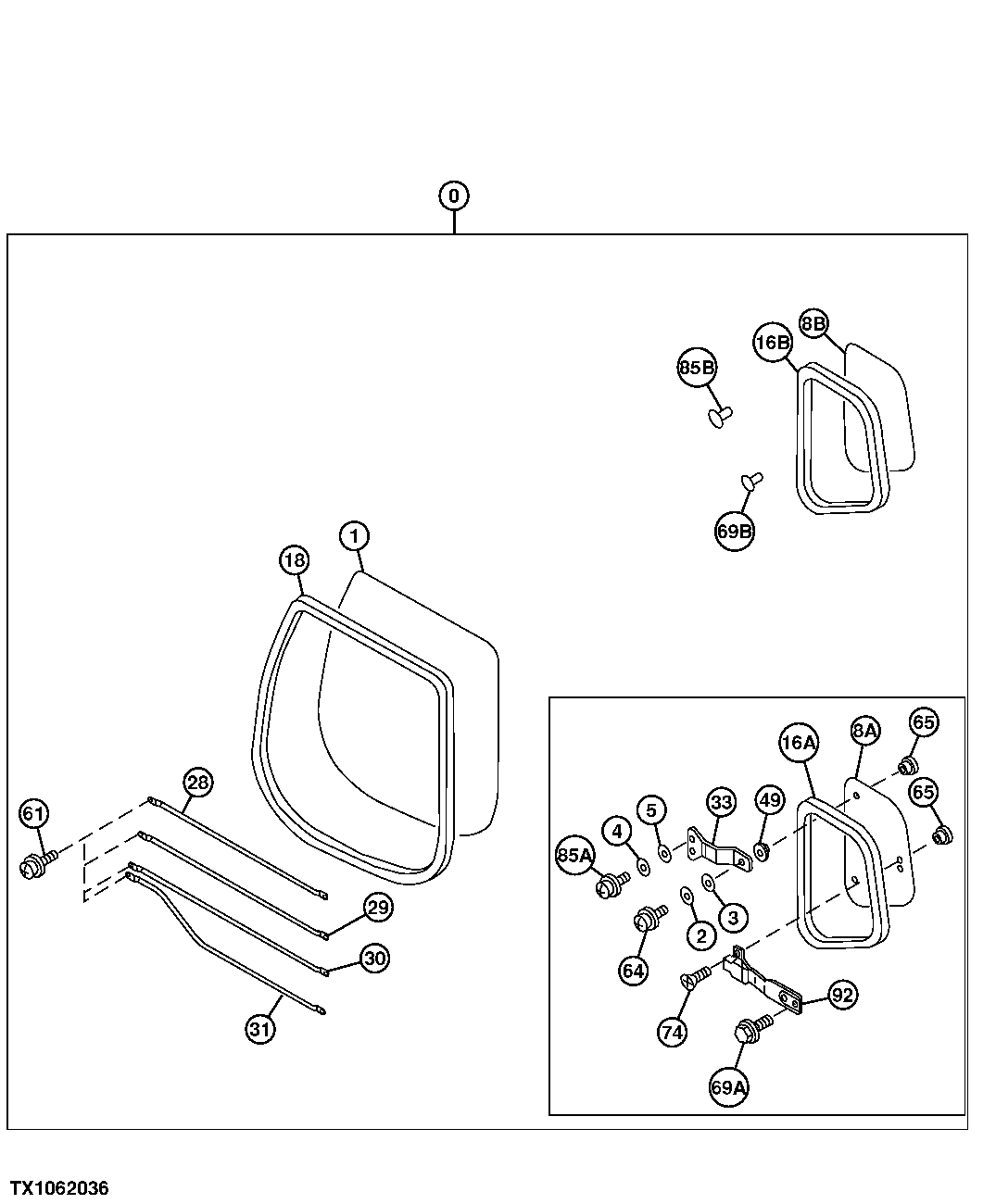

Схема запчастей John Deere 00C - 166 - CAB COMPONENTS (RIGHT WINDOW) 1810 OPERATOR ENCLOSURE

Артикул

Название

Примечание

Количество

0

9205229

Cab

Contains All Items On This Page - Additional Components Listed On Separate Pages SUB FOR TH9205229

1шт.

1

Windowpane

Bronze SUB 4602568R, 4448312 NLA

1шт.

4602568R

Windowpane

Green SUB FOR 4602568

1шт.

2

12M7064

Lock Washer

5 mm

2шт.

3

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

4

12M7006

Lock Washer

6 mm

4шт.

5

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

8A

4602570

Windowpane

SUB FOR 4448313 Bronze Hinge

1шт.

8B

4602570

Windowpane

Green Fixed

1шт.

16A

4463390

Isolator

SUB FOR 4453680

1шт.

16B

4602576

Isolator

1шт.

18

4448318

Isolator

SUB FOR TH4448318

1шт.

28

4463391

Guard

SUB FOR 4453681

1шт.

29

4463392

Guard

SUB FOR 4453682 AND TH4453682

1шт.

30

4463393

Guard

SUB FOR TH4453683 AND 4453683

1шт.

31

4463394

Guard

SUB FOR TH4453684 AND 4453684

1шт.

33

4369670

Bracket

SUB FOR AT214169

2шт.

49

4369671

Bushing

SUB FOR AT214170

2шт.

61

4372212

Screw With Washer

SUB FOR AT214299

8шт.

64

21M7271

Screw

M5 X 16 SUB FOR 21M6070

2шт.

65

4369674

Bushing

SUB FOR AT214172

4шт.

69A

4372223

Screw With Washer

SUB FOR AT214309

2шт.

69B

4377817

Clip

2шт.

74

4372213

Screw

SUB FOR AT214300

2шт.

85A

21M7246

Screw

M6 X 16

4шт.

85B

4372088

Clip

4шт.

92

4369672

Lock

SUB FOR AT214171

1шт.

Выбрано товаров: 27
