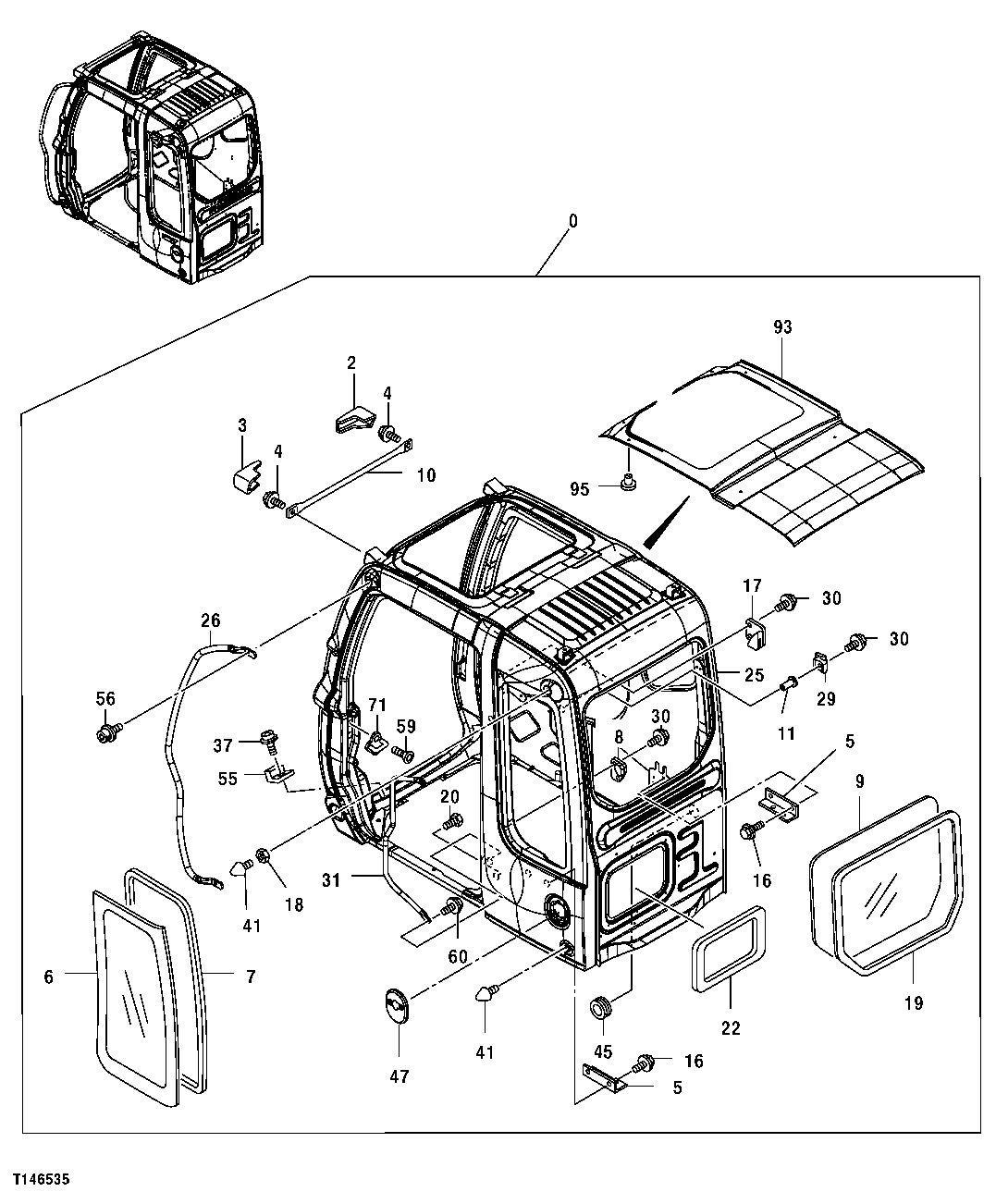

Запчасти John Deere 00C 163 - CAB COMPONENTS (CAB ROOF, CAB WINDOWS AND HANDRAILS) 1810 OPERATOR ENCLOSURE

0

9205229

Cab

Contains All Items On This Page - A dditional Components Listed On Separ ate Pages (SUB FOR TH9205229 PAGES))

1шт.

2

4456177

Cover

(SUB FOR TH4456177)

1шт.

3

4456178

Cover

(SUB FOR TH4456178)

1шт.

4

4456179

Bolt

(SUB FOR TH4456179)

2шт.

5

4456181

Bracket

(SUB FOR TH4456181)

2шт.

6

Windowpane

(4602580 NLA) Bronze (SUB FOR 4468944 OR TH4468944 OR 4448311 ) (SUB 4602567)

1шт.

4602567

Windowpane

Green

1шт.

7

4400079

Seal

(SUB FOR AT218190)

1шт.

8

4456183

Isolator

(SUB FOR TH4456183)

1шт.

9

4602569R

Windowpane

(SUB FOR TH4448314, 4448314 OR 4602569)

1шт.

10

4474300

Pipe

1шт.

11

4456185

Nut

(SUB FOR TH4456185)

1шт.

16

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

17

4456182

Isolator

(SUB FOR TH4456182)

1шт.

18

4414857

Nut

(SUB FOR AT157068)

1шт.

19

4448319

Isolator

(SUB FOR TH4448319)

1шт.

20

19M8425

Cap Screw

M6 X 16

1шт.

24H1287

Washer

9/32" X 5/8" X 0.065"

1шт.

12M7006

Lock Washer

6 mm

1шт.

22

4453667

Isolator

(SUB FOR TH4453667)

1шт.

25

4456175

Isolator

(SUB FOR TH4456175)

2шт.

26

4474298J

Handrail

(SUB FOR 4474298)

1шт.

29

4456184

Isolator

(SUB FOR TH4456184)

1шт.

30

4372224

Screw With Washer

(SUB FOR AT214310)

5шт.

31

4453663

Handrail

(SUB FOR TH4453663)(UNITS B UILT BEFORE SEPTEMBER 2002)

1шт.

4668617

Handrail

(UNITS BUILT SEPTEMBER 2002 AND AFTER)

1шт.

37

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

41

4304827

Bumper

(SUB FOR AT156970)

2шт.

45

4369568

Grommet

(SUB FOR AT214078)

1шт.

47

4474299

Cover

1шт.

55

4369675

Isolator

(SUB FOR AT214173)

2шт.

56

19M7550

Cap Screw

M10 X 35

2шт.

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

12M7066

Lock Washer

10 mm

2шт.

59

4320163

Screw

(SUB FOR AT200584)

2шт.

60

Screw With Washer

( AT214305 OR 4372219 NLA) (UN ITS BUILT BEFORE SEPTEMBER 2002)

2шт.

19M7662

Cap Screw

M10 X 30 (SUB FOR J901030)(UNI TS BUILT BEFORE SEPTEMBER 2002)

2шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J922010)( UNITS BUILT BEFORE SEPTEMBER 2002)

2шт.

Screw With Washer

( J271030 NLA) (UNITS BUIL T SEPTEMBER 2002 AND AFTER)

2шт.

19M7662

Cap Screw

M10 X 30 (UNITS BUILT S EPTEMBER 2002 AND AFTER)

2шт.

24M7346

Washer

11 X 20 X 2 mm (UNITS BUIL T SEPTEMBER 2002 AND AFTER)

2шт.

71

4369627

Striker

(SUB FOR AT214129)

1шт.

93

4453665

Sheet

(SUB FOR TH4453665)

1шт.

95

4453666

Clip

(SUB FOR TH4453666)

14шт.
