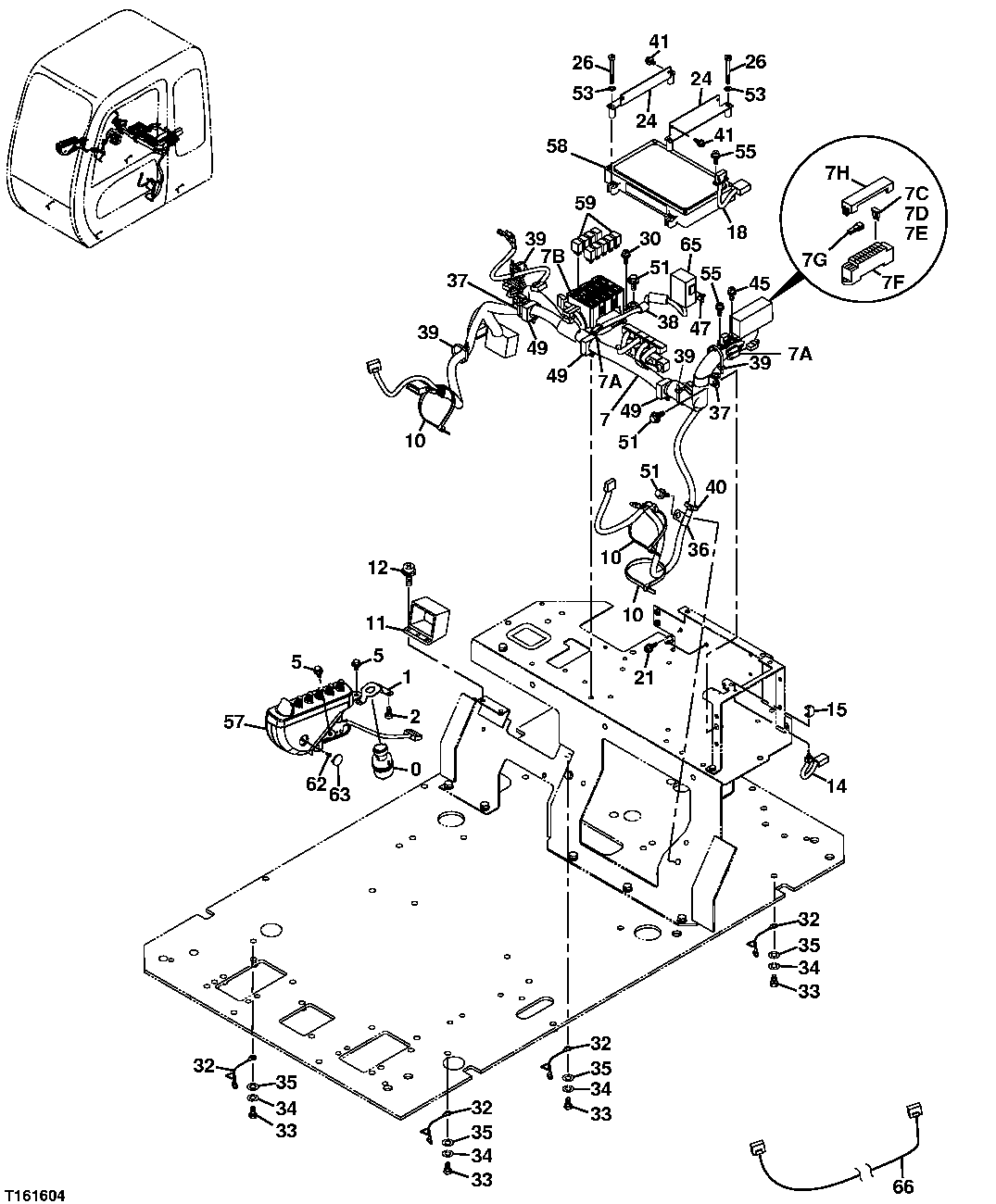

Запчасти John Deere 00C 143 - Electric Components, Cab, Continued 1674 WIRING HARNESS AND SWITCHES

41

19M7700

Cap Screw

M5 X 10

4шт.

12M7064

Lock Washer

5 mm

4шт.

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

45

Screw With Washer

J460620 NLA SUB FOR AT200012

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

47

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

2шт.

Washer

12M7065 NLA

2шт.

49

4449019

Clip

SUB FOR TH4449019

3шт.

51

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

53

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

55

Screw

SUB FOR AT156974; J460310 NLA

4шт.

21M7394

Screw

M3 X 10

4шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

4шт.

12H233

Lock Washer

1/8"

4шт.

57

4454518

Control Console

SUB FOR TH4454518

1шт.

4482656

Dial Knob

Speed

1шт.

4483208

Dial Knob

4шт.

4483209

Dial Knob

1шт.

4370152

Lamp

2шт.

4483206

Switch

Harness

1шт.

58

9227388

Vehicle Controller

SUB FOR 4463768

1шт.

59

4436534

Relay

SUB FOR TH4436534

9шт.

62

4381572

Screw

SUB FOR TH4381572

1шт.

63

4426354

Cap

SUB FOR FFSB110305

1шт.

65

1825503251

Central Control Unit

SUB FOR 1825503250, 4452160, TH4452160

1шт.

66

2048203

Wiring Harness

2.75M EXTENSION

1шт.

2048184

Wiring Harness

4.6M EXTENSION

1шт.

81

4654897

Isolator

1шт.

82

H77698

Tie Band

SUB FOR 4055312

2шт.
