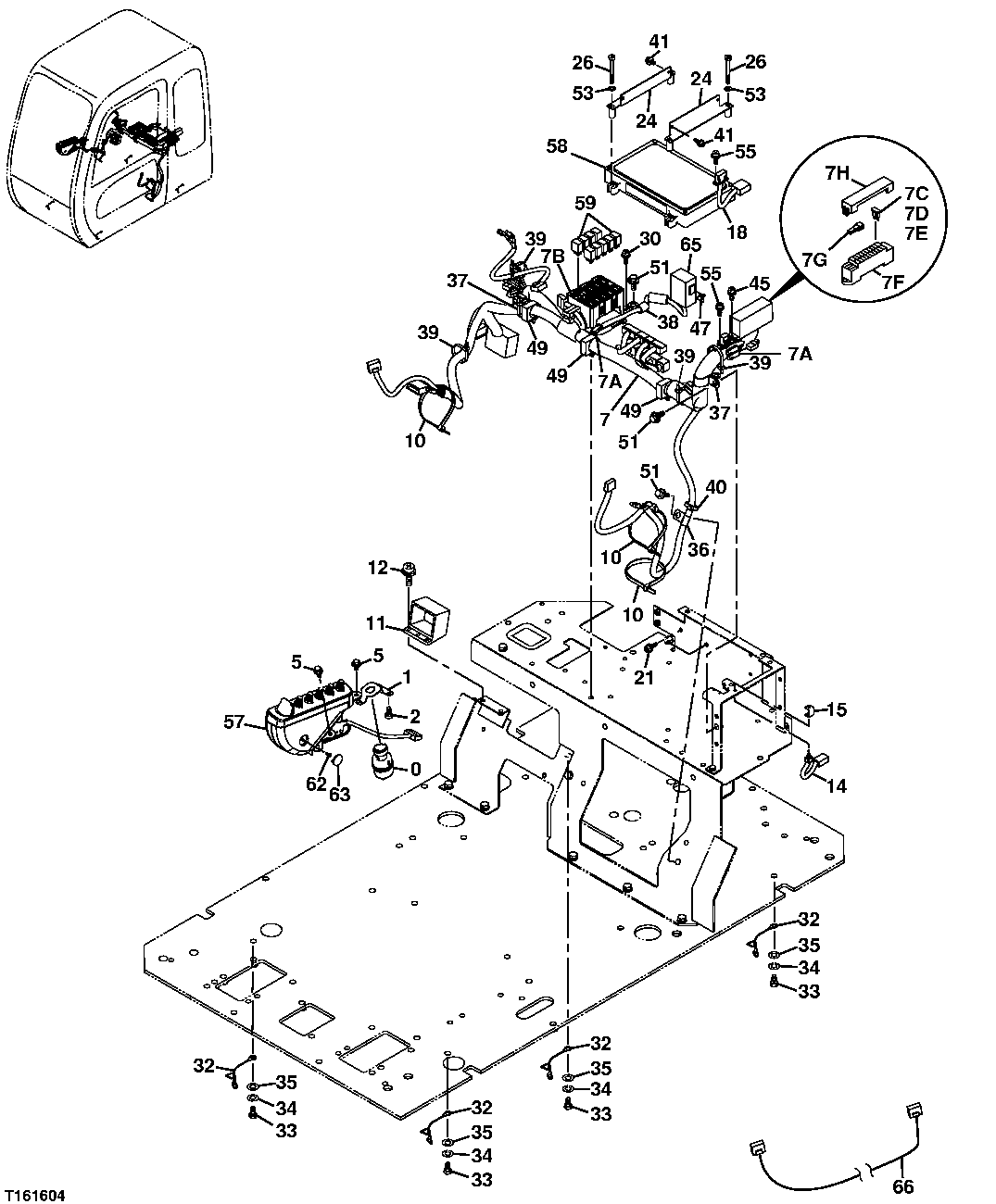

Запчасти John Deere 00C 142 - ELECTRIC COMPONENTS (CAB) 1674 WIRING HARNESS AND SWITCHES

0

4477373

Switch

1шт.

AT194969

Key

(SUB FOR AT147803)

1шт.

1

3087882

Bracket

1шт.

2

4361800

Screw

(SUB FOR AT214011)

3шт.

5

J010814

Screw With Washer

(SUB FOR AT132457)

3шт.

7

0004601

Wiring Harness

1шт.

0003800

Wiring Harness

1шт.

7A

4456778

Diode

5шт.

7B

4427429

Circuit Box

(SUB FOR TH4427429)

1шт.

7C

57M7688

Fuse

10шт.

7D

57M7689

Fuse

7шт.

7E

57M7691

Fuse

2шт.

7F

4456735

Fuse Holder

(SUB FOR TH4456735)

1шт.

7G

Special Service Tool

( TH4436737 NLA)

1шт.

7H

4443490

Cover

(SUB FOR TH4443490)

1шт.

10

H77698

Tie Band

3шт.

11

4431090

Electrical Connector Assy

1шт.

12

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

14

4359384

Switch

(SUB FOR AT213984)

1шт.

15

4367375

Bracket

(SUB FOR AT214036)

1шт.

18

4439897

Wiring Harness

(SUB FOR TH4439897)

1шт.

21

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

24

8082329

Bracket

2шт.

26

M430660

Screw

(SUB FOR AT203691)

4шт.

30

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

4шт.

21M7267

Screw

M6 X 20

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

32

4281293

Ground Cable

(SUB FOR AT154961)

4шт.

33

19M8324

Cap Screw

M10 X 16

4шт.

34

12M7066

Lock Washer

10 mm

4шт.

35

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

36

4190275

Clamp

(SUB FOR TH108598)

1шт.

37

AT121321

Hose Clamp

1шт.

38

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

1шт.

39

H77698

Tie Band

5шт.

40

H77698

Tie Band

1шт.
