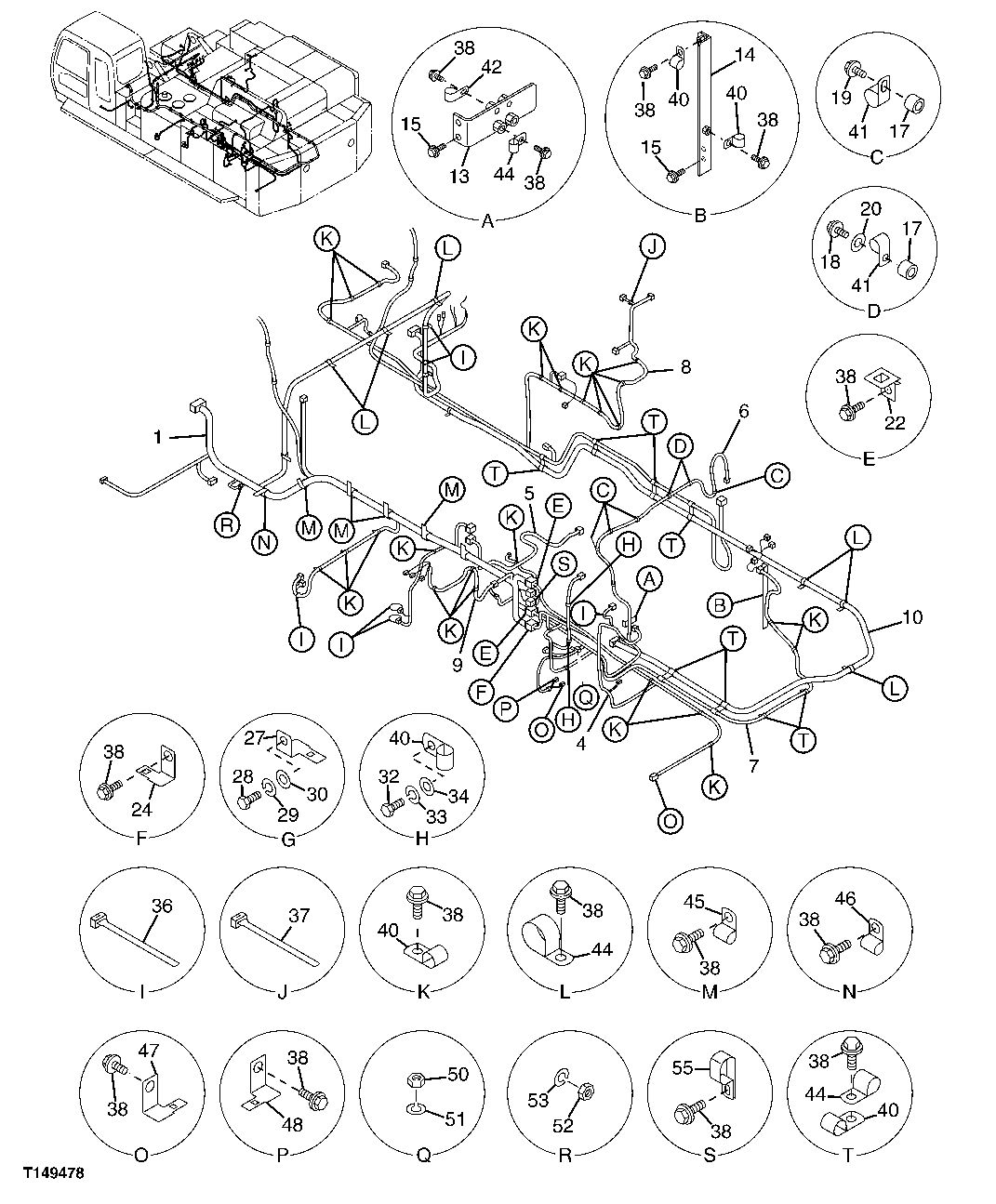

Запчасти John Deere 00C 141 - WIRING HARNESS 1674 WIRING HARNESS AND SWITCHES

1

1030232

Wiring Harness

(SEE DTAC SOLUTION FOR R EPAIR KIT AND CONNECTORS)

1шт.

4

2047853

Wiring Harness

hydraulic pump

1шт.

5

3094308

Wiring Harness

1шт.

6

3094309

Wiring Harness

Engine - 1

1шт.

3098681

Wiring Harness

Engine - 1

1шт.

7

3094310

Wiring Harness

Engine - 2

1шт.

8

3096221

Wiring Harness

FUEL TANK

1шт.

9

3094312

Wiring Harness

Oil Tank

1шт.

10

4469353

Wiring Harness

Engine Start

1шт.

13

9756816

Bracket

1шт.

14

9756826

Bracket

1шт.

15

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.

17

4322539

Spacer

7шт.

18

19M8093

Cap Screw

M10 X 100

2шт.

12M7066

Lock Washer

10 mm

2шт.

19

19M7550

Cap Screw

M10 X 35

5шт.

12M7066

Lock Washer

10 mm

5шт.

20

24M7346

Washer

11 X 20 X 2 mm

2шт.

22

4448037

Bracket

5шт.

24

4418301

Bracket

SUB FOR TH4418301

1шт.

27

4336874

Bracket

SUB FOR AT202391

4шт.

28

19M7923

Cap Screw

M6 X 12 SUB FOR 19M6614

4шт.

29

12M7006

Lock Washer

6 mm

4шт.

30

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

32

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

7шт.

33

Washer

12M7065 NLA

7шт.

34

24M7055

Washer

8.400 X 16 X 1.600 mm

7шт.

36

H77698

Tie Band

11шт.

37

H77698

Tie Band

2шт.

38

19M7938

Cap Screw

M10 X 20

80шт.

12M7066

Lock Washer

10 mm

80шт.

40

4190261

Clip

SUB FOR TH109649

51шт.

41

4190275

Clamp

SUB FOR TH108598

7шт.

42

T28949

Clamp

SUB FOR TH108460 OR 4190273

5шт.

44

R72659

Clamp

SUB FOR 4235654

27шт.

45

XCL-19

Hose Clamp

SUB FOR TH108459 OR 4192035

4шт.

46

AT121321

Hose Clamp

1шт.

47

4257159

Bracket

SUB FOR AT154243

2шт.

48

4257159

Bracket

SUB FOR 4336875

1шт.

50

14M7141

Nut

M14

1шт.

51

12H317

Lock Washer

9/16"

1шт.

52

14M7274

Nut

M10

1шт.

53

12M7066

Lock Washer

10 mm

1шт.

55

T32854

Clamp

1шт.
