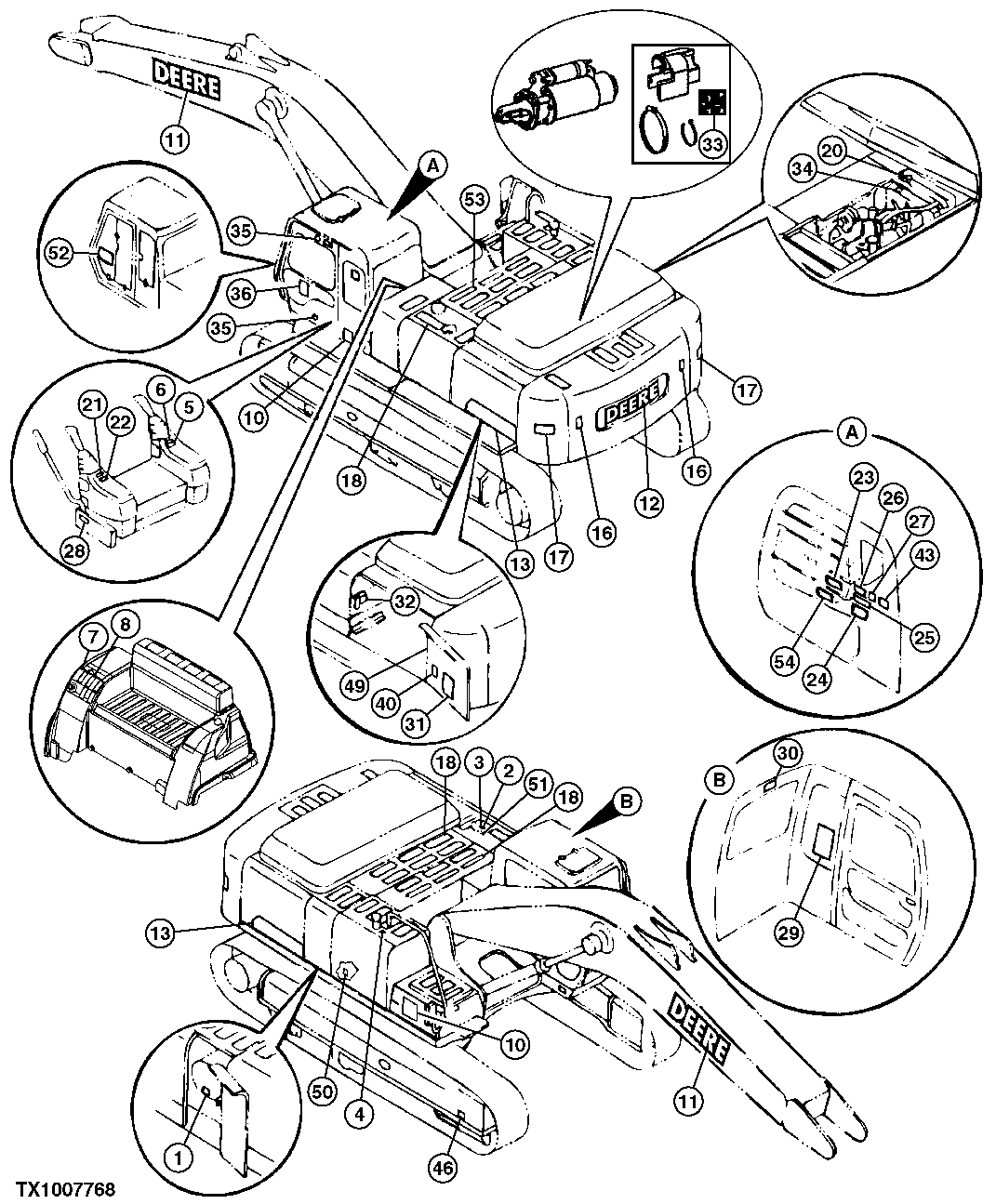

Запчасти John Deere 00C 131 - LABELS AND DECALS 1322 DECALS AND TRADEMARKS

1

R56902

Label

(AIR CLEANER)

1шт.

2

P63448

Label

(SUB FOR AT155733)(PUMP BLEED INFORMATION)

1шт.

3

T101942

Label

(HYDRAULIC OIL ONLY)

1шт.

4

T79632

Label

(DIESEL ONLY)

1шт.

5

4264805

Label

(IGNITION KEY SWITCH)

1шт.

6

Label

(SUB FOR T159842, THIS APPLICATION ) (SUB T201519)(RIGHT CONTROL LEVE R - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159843

Label

(RIGHT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

7

T187644

Label

PRECISION MODE

1шт.

8

T187645

Label

BOOM SELECTOR MODE

1шт.

10

JD5760

Label

(LEAPING DEER)

2шт.

11

T183547

Label

(DEERE - ON BOOM)

2шт.

12

T183547

Label

(DEERE - ON COUNTERWEIGHT)

1шт.

13

T188822

Label

(800C) (MODEL DESIGNATION)

1шт.

T188823

Label

(800C) (MODEL DESIGNATION)

1шт.

16

T161266

Reflector

(RED)

2шт.

17

T248455

Label

(SUB FOR T147008, 2035960 OR 2035960R)WARNING (STAY CLEAR)

2шт.

18

H21259

Mat

(ANTI-SKID) OPERATORS DECK

24шт.

20

T146671

Safety Sign

CAUTION (PRESSURIZED) (RADIATOR CAP)

1шт.

21

Label

(SUB T201519 ) (SUB FOR T159841, T HIS APPLICATION)(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159844

Label

(LEFT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

22

4288971

Label

(ETHER AID / MOTION CANCEL)

1шт.

23

T187536

Label

ENGINE START/STOP

1шт.

24

T159887

Safety Sign

CAUTION (READ OPERATOR'S MANUAL)

1шт.

25

T146668

Safety Sign

WARNING (CRUSHING ARTICULATION)

1шт.

26

T146667

Safety Sign

DANGER (ELECTROCUTION)

1шт.

27

T387695X19

Label

(SUB FOR T157809)IMPORTANT (BREAK WIND OW FOR SECONDARY EXIT) SUB FOR T190393

1шт.

28

4299059

Label

HYDRAULIC LOCKOUT

1шт.

29

T188861

Label

LIFT CAPACITY

1шт.

T204255

Label

LIFT CAPACITY (USE WITH MINING FRONT)

1шт.

30

T187535

Label

CAUTION (WINDOW LOCK) (FRONT)

1шт.

T190799

Safety Sign

CAUTION (WINDOW LOCK) (FRONT) (FR)

1шт.

T190803

Label

CAUTION (WINDOW LOCK) (FRONT) (SP)

1шт.

31

T218248

Label

(SUB FOR T188860 OR T208 053)PERIODIC MAINTENANCE

1шт.

32

T149983

Label

IMPORTANT (OIL LEVEL)

1шт.

33

T146102

Label

DANGER (BYPASS START)

1шт.

34

T152657

Safety Sign

IMPORTANT (RESERVOIR)

1шт.

35

T187642

Label

DOOR

2шт.

36

Plate

LIFTING (NLA)

1шт.

40

T152593

Label

IMPORTANT (COUNTERWEIGHT REMOVAL)

1шт.

43

4266386

Label

(TRACK FRAME) 992D-LC

1шт.

46

Plate

AN ARROW (NLA)

1шт.

49

4241586

Label

(UP-DOWN)

1шт.

50

T183425

Label

WARNING (ACCUMULATOR)

1шт.

51

T187710

Label

CAUTION (HYDRAULIC RESERVOIR OIL CAP)

1шт.

T190801

Label

CAUTION (HYDRAULIC RES ERVOIR OIL CAP) FRENCH

1шт.

T190802

Label

CAUTION (HYDRAULIC RES ERVOIR OIL CAP) SPANISH

1шт.

52

T188737

Label

VANDAL COVER INSTALLATION INSTRUCTIONS

1шт.

53

T25838

Mat

(ANTI-SKID)

5шт.

54

T201519

Label

(SUB FOR T159842, T159841)OPERATOR PATTERN

1шт.
