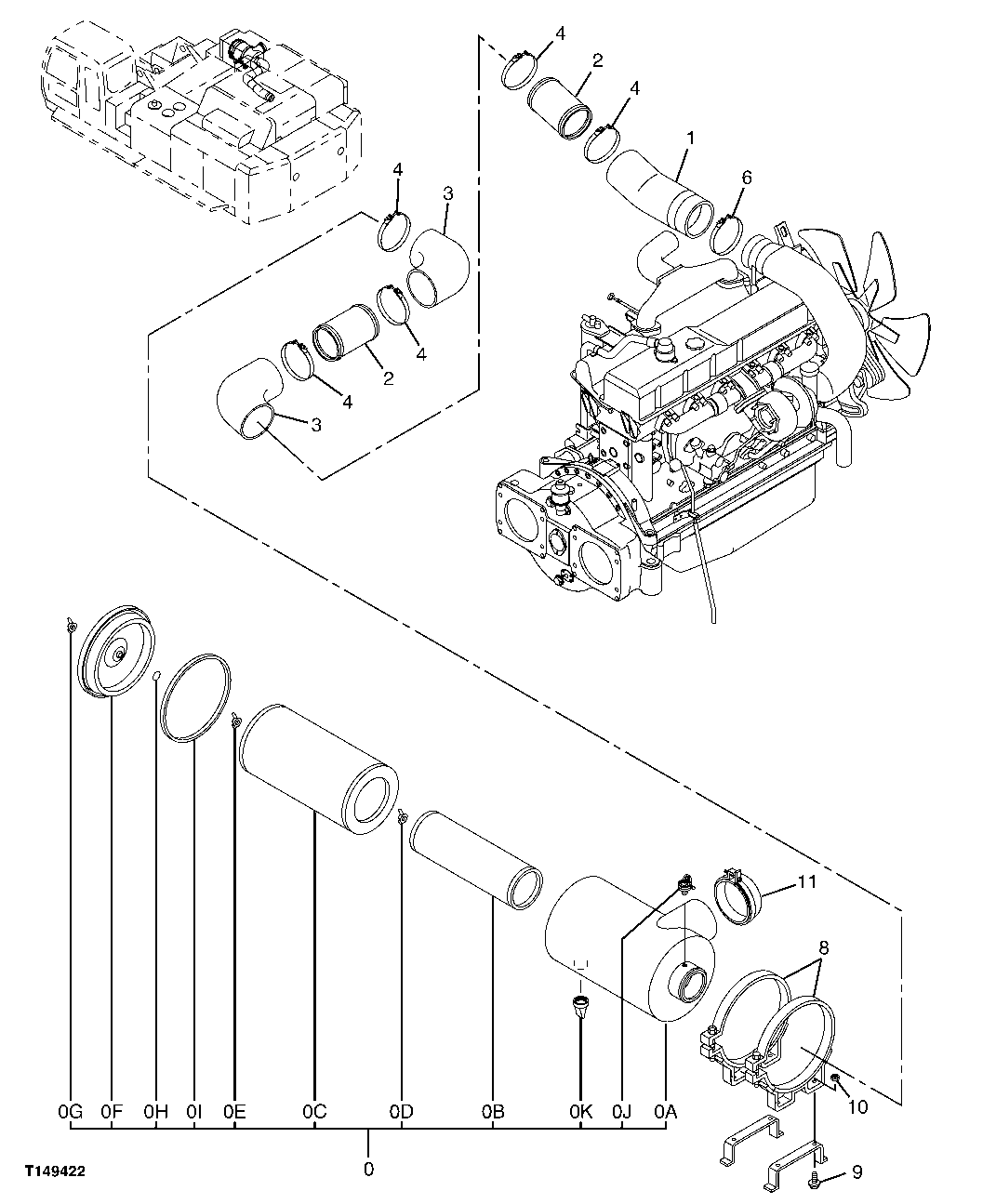

Запчасти John Deere 00C 126 - AIR CLEANER 0530 EXTERNAL EXHAUST SYSTEM

0

4469730

Filter

1шт.

0A

Housing

1шт.

0B

AT179370

Filter Element

(INNER)

1шт.

0C

AT179371

Filter Element

(OUTER)

1шт.

0D

4337642

Nut

(SUB FOR AT166137)

1шт.

0E

4257360

Nut

(SUB FOR AT200998)

1шт.

0F

4297292

Cover

(SUB FOR AT201034)

1шт.

0G

T251578

Wing Nut

(SUB FOR AR73234, THIS APPLICATION)

1шт.

0H

P46402

Snap Ring

1шт.

0I

4257362

Gasket

(SUB FOR AT200999)

1шт.

0J

4224238

Indicator

(SUB FOR AT131922)

1шт.

0K

Valve

( TH111700 NLA)

1шт.

1

3094590

Hose

1шт.

2

3094591

Line

2шт.

3

4221469

Hose

2шт.

4

4312517

Hose Clamp

(SUB FOR TH4312517)

5шт.

6

4287488

Hose Clamp

(SUB FOR TH4287488)

1шт.

8

4221470

Clamp

(SUB FOR AT178200)

2шт.

9

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

10

14M7274

Nut

M10

4шт.

11

4330083

Screen

(SUB FOR AT202329)

1шт.
