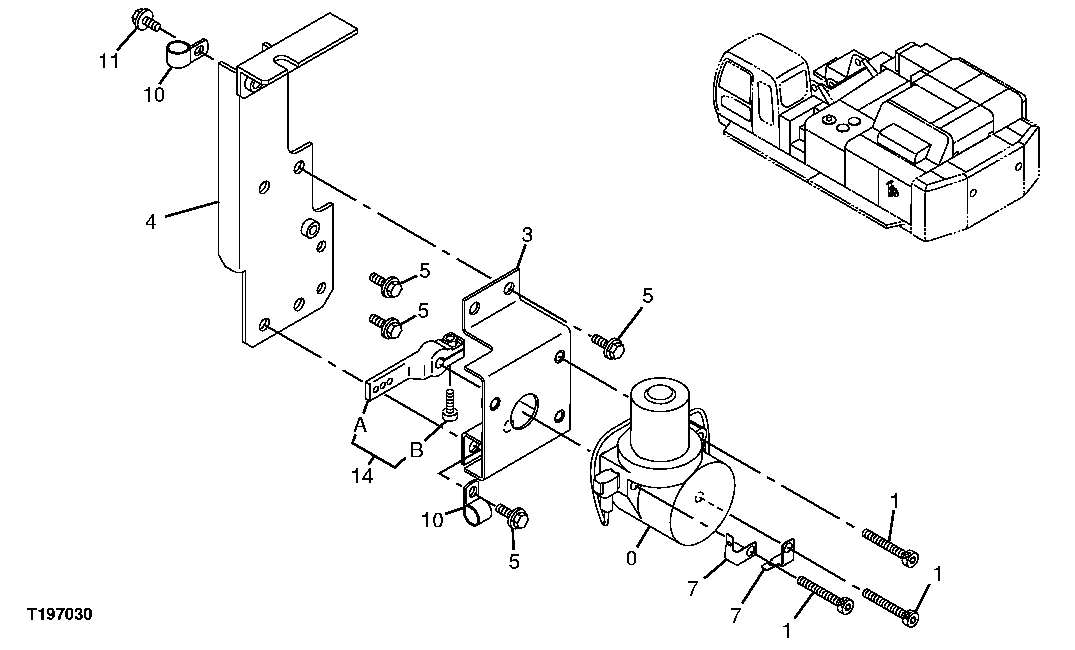

Запчасти John Deere 00C 124 - ENGINE CONTROL MOTOR 0515 ENGINE SPEED CONTROLS

0

4614911

Motor

SUB FOR 4360509

1шт.

1

19M8954

Screw

M10 X 60

3шт.

3

8079753

Bracket

1шт.

4

8086575

Bracket

1шт.

5

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

7

4257159

Bracket

SUB FOR AT154243

2шт.

10

T38377

Clamp

2шт.

11

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

14

Lever

9207252 NLA

1шт.

14A

FYA40004949

Lever

SUB FOR 9756079

1шт.

14B

19M7660

Screw

M8 X 20 SUB FOR J780820, USE WITH 9756079

1шт.

19M8440

Screw

M10 X 25 SUB FOR J78102 5, USE WITH FYA40004949

1шт.
