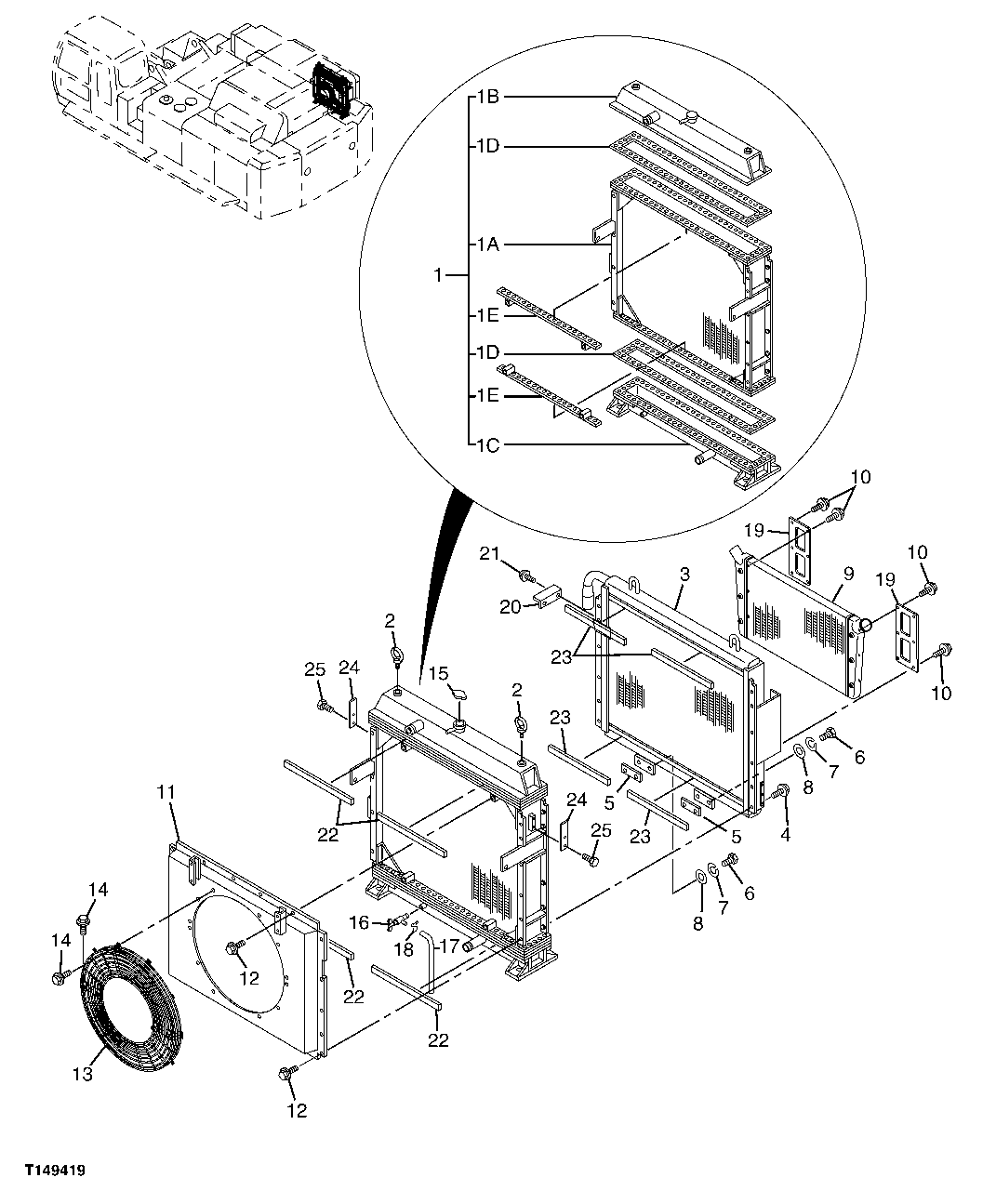

Запчасти John Deere 00C 120 - RADIATOR 0510 ENGINE COOLING SYSTEM

1

4474012

Radiator

1шт.

1A

4476179

Valve Core

1шт.

1B

4476180

Tank

1шт.

1C

4476181

Tank

1шт.

1D

4476185

Gasket

2шт.

1E

4476189

Plate

2шт.

2

4085154

Eyebolt

2шт.

3

4474005

Oil Cooler

1шт.

4

19M8011

Cap Screw

M12 X 30 (SUB FOR 4325260)

12шт.

12M7067

Lock Washer

12 mm

12шт.

24M7047

Washer

13 X 24 X 2.500 mm

12шт.

5

4325264

Shim

2шт.

6

19M7877

Cap Screw

M14 X 30

4шт.

7

12H317

Lock Washer

9/16"

4шт.

8

24M7085

Washer

15 X 28 X 2.500 mm

4шт.

9

4474006

Oil Cooler

1шт.

10

19M8011

Cap Screw

M12 X 30 (SUB FOR 4325260)

12шт.

12M7067

Lock Washer

12 mm

12шт.

24M7047

Washer

13 X 24 X 2.500 mm

12шт.

11

4476193

Shroud

1шт.

12

19M7402

Cap Screw

M10 X 25 (SUB FOR 4325268)

18шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

18шт.

12M7066

Lock Washer

10 mm

18шт.

13

4436426

Guard

2шт.

14

19M7402

Cap Screw

M10 X 25 (SUB FOR 4325268)

16шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

16шт.

12M7066

Lock Washer

10 mm

16шт.

15

4231888

Filler Cap

(SUB FOR AT122559)

1шт.

16

4248510

Drain Plug

(SUB FOR TH4248510)

1шт.

17

Hydraulic Hose

( 4397904 NLA) (ORDER PMK010-1014 ) (SUB FOR TH4397904 (CTL) 500 MM)

1шт.

18

4143888

Hose Clamp

(SUB FOR TH4143888)

1шт.

19

4476194

Plate

2шт.

20

4476195

Plate

1шт.

21

19M7402

Cap Screw

M10 X 25 (SUB FOR 4325268)

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

22

4476196

Packing

4шт.

23

4428234

Packing

4шт.

24

4476197

Plate

2шт.

25

19M7662

Cap Screw

M10 X 30 (SUB FOR 4291790)

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.
