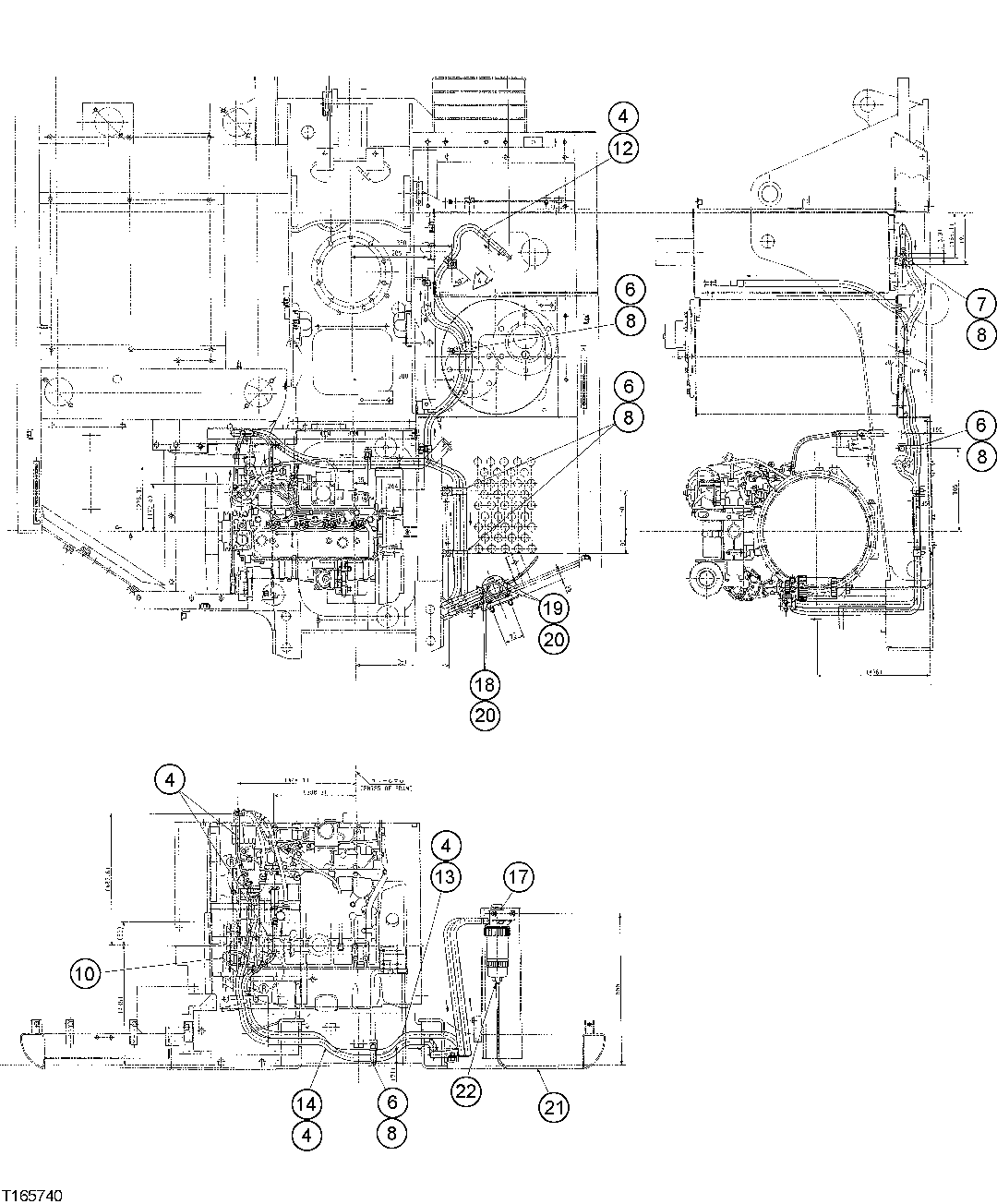

Запчасти John Deere 0 55 - Low Pressure Fuel Lines 0560 External Fuel Supply Systems

4

TY22462

Clamp

(SUB FOR AR48236 ) (SUB FOR AR21836)

10шт.

6

R50454

Clamp

(SUB FOR 4192034)

5шт.

7

R72659

Clamp

(SUB FOR 4190263 OR 4235654)

1шт.

8

19M7938

Cap Screw

M10 X 20

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

10

R76477

Tie Band

1шт.

12

9165564

Hose

(FUEL TANK TO PRIMARY FUEL FILTER)

1шт.

13

9165563

Hose

(PRIMARY FUEL FILTER TO TRANSFER PUMP)

1шт.

14

9165565

Hose

(ENGINE TO FUEL TANK) (RETURN LINE)

1шт.

17

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

18

R65684

Fitting

2шт.

19

R27094

Drain Plug

2шт.

20

R26286

O-Ring

4шт.

21

R126086

Hose

1шт.

22

T13254

Clamp

1шт.

26

TY22324

Bulk Hose

(SUB FOR P60992)

2шт.
