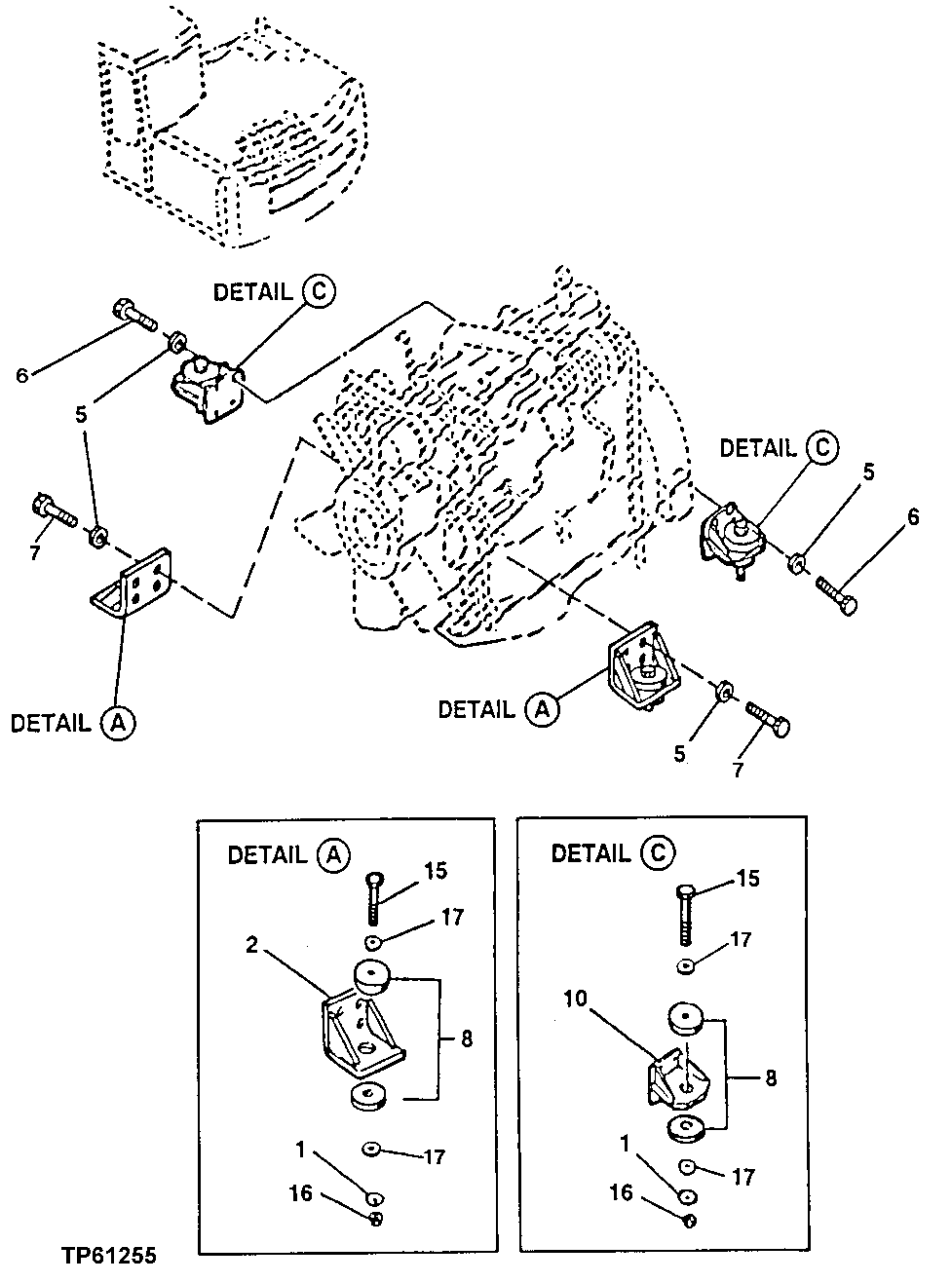

Запчасти John Deere 0 51 - Engine Mounting Brackets and Isolators 0540 Engine Mounting

1

24M7241

Washer

17 X 34 X 4 mm

4шт.

2

AP33336

Bracket

2шт.

5

24M7239

Washer

10.700 X 21 X 2.500 mm

16шт.

6

19M7786

Screw

M10 X 30

8шт.

7

19M7835

Screw

M10 X 35

8шт.

8

AP35239

Rubber Mount

4шт.

10

8075881

Bracket

(SUB FOR AP33337)

2шт.

15

19M8610

Screw

M16 X 110

4шт.

16

14M7328

Lock Nut

M16

4шт.

17

R111207

Washer

16.700 X 71.500 X 5 mm ( 0.657" X 2.815" X 0.197")

8шт.
