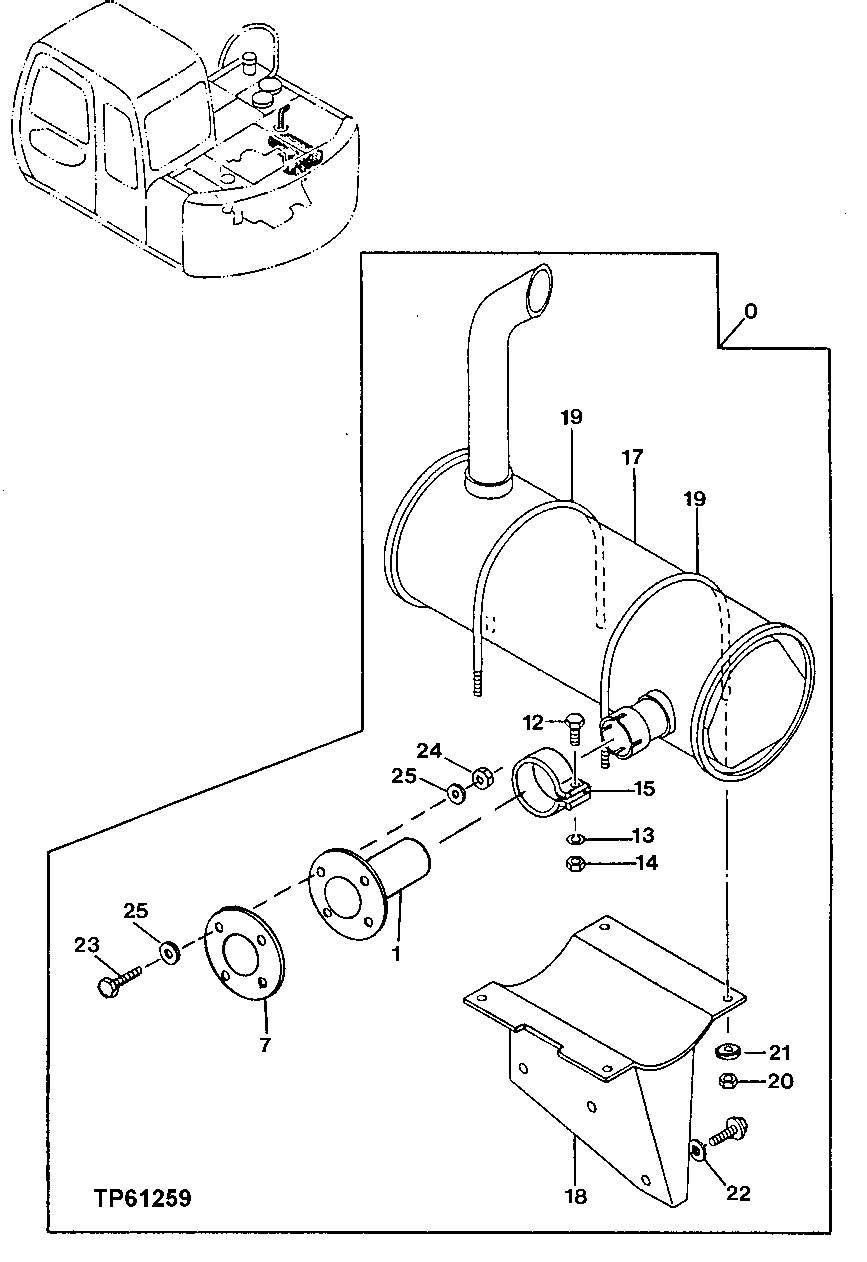

Запчасти John Deere 0 50 - Muffler, Exhaust Pipe and Mounting Bracket 0530 External Exhaust Systems

0

Muffler

(MUFFLER ASSEMBLY AP33325 NLA )

1шт.

1

AP33335

Exhaust Pipe

1шт.

7

AT211915

Gasket

(SUB FOR P60945)

1шт.

12

Bolt

1шт.

13

Washer

1шт.

14

Nut

1шт.

15

RE62187

Clamp

(SUB FOR AP33334)

1шт.

17

AP33339

Muffler

1шт.

18

AP33333

Support

1шт.

19

P60649

Hook Bolt

2шт.

20

14M7166

Lock Nut

M8

4шт.

21

24M7298

Washer

8.400 X 25 X 2 mm

4шт.

22

24M7296

Washer

10.500 X 30 X 2.500 mm

3шт.

23

19M7493

Cap Screw

M12 X 40

4шт.

24

14M7275

Nut

M12

4шт.

25

24M7240

Washer

13 X 25 X 3 mm

8шт.
