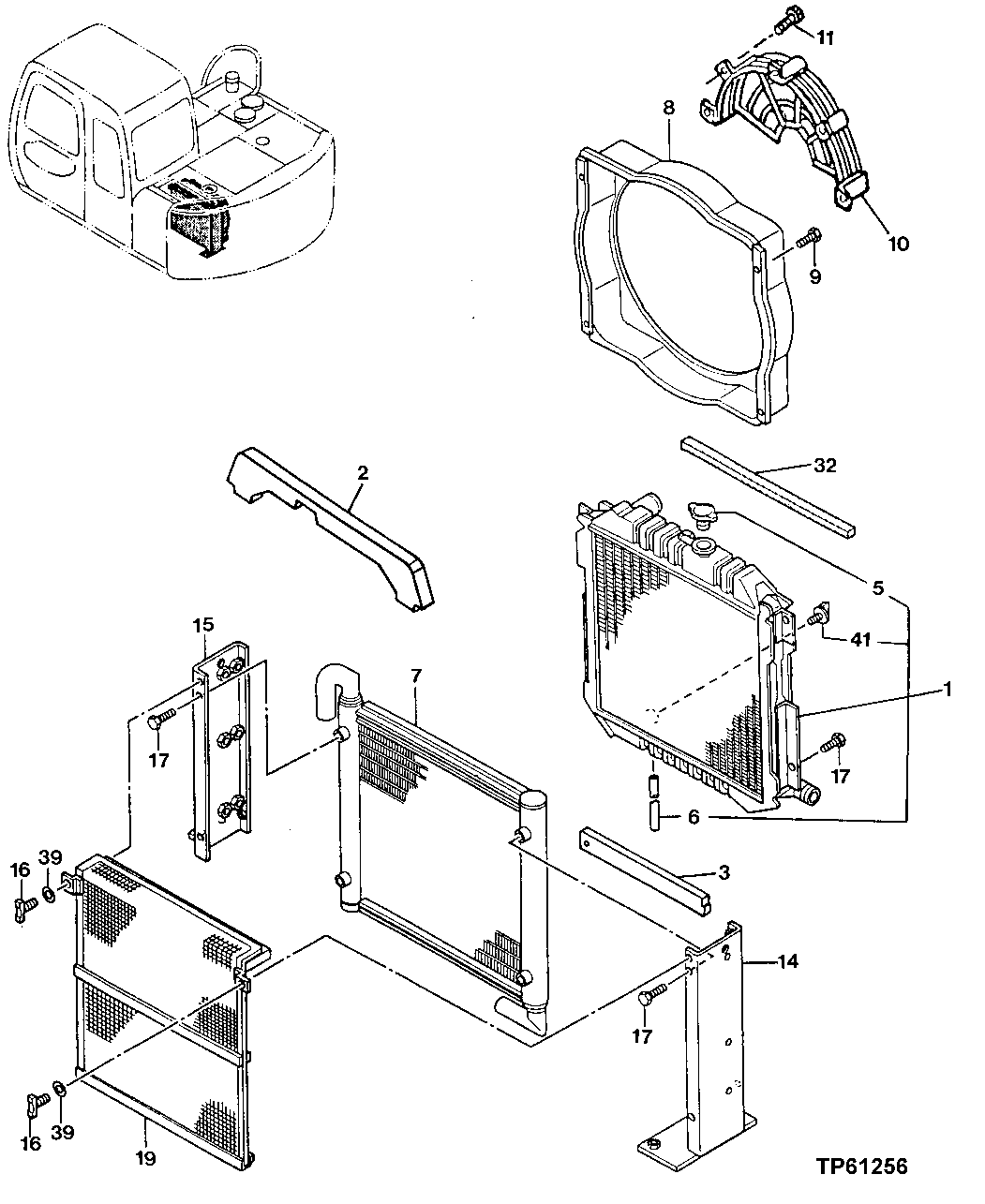

Запчасти John Deere 0 43 - Oil Cooler / Radiator and Mounting 0510 Engine Cooling Systems

1

AP35224

Radiator

1шт.

2

3085779

Deflector

(SUB FOR P60986)

1шт.

3

4419009

Deflector

(SUB FOR P60987)

1шт.

5

AT169085

Filler Cap

1шт.

6

Bulk Hose

(VINYL) ( P61094 NSEP)

1шт.

7

AP35221

Oil Cooler

1шт.

8

Q764231100

Shroud

(SUB FOR AP35220)

1шт.

9

4206678

Bolt

(SUB FOR TH108227)

4шт.

10

Q764232101

Guard

(SUB FOR AP35241)

1шт.

11

4206678

Bolt

(SUB FOR TH108227)

5шт.

14

AP35223

Bracket

1шт.

15

AP35222

Bracket

1шт.

16

21M1689

Wing Screw

M6 X 12

2шт.

17

4206678

Bolt

(SUB FOR TH108227)

4шт.

19

4397059

Screen

(SUB FOR AP35219)

1шт.

32

Packing

(BULK MATERIAL) ( AT200405 NSEP)

1шт.

39

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

41

4148705

Drain Plug

(SUB FOR TH109425)

1шт.
