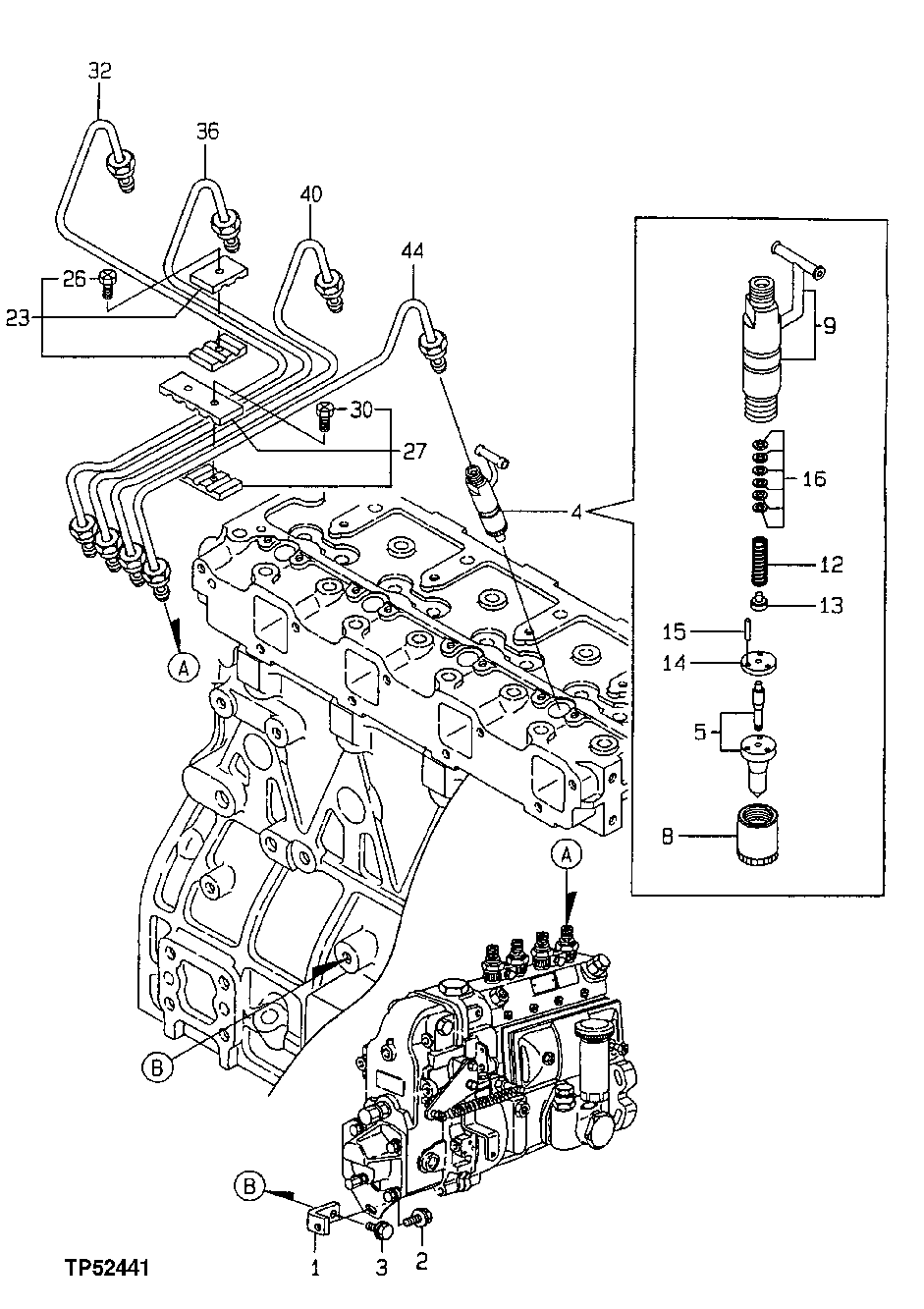

Запчасти John Deere 0 34 - Fuel Injection Nozzles and Lines 0413 Fuel Injection System

1

AT211788

Angle

1шт.

2

M803787

Bolt

1шт.

3

19M7866

Screw

M8 X 20 (SUB FOR CH19139)

1шт.

4

AT211907

Injection Nozzle

4шт.

5

AT211789

Injection Nozzle

4шт.

8

M801093

Nut

4шт.

9

AM875330

Nozzle Holder

4шт.

12

M801096

Spring

4шт.

13

M800212

Retainer

4шт.

14

M801097

Valve Seat Insert

4шт.

15

M801098

Pin

8шт.

16

AM875069

Shim

4шт.

23

RG60641

Support

2шт.

26

M806745

Bolt

2шт.

27

AM875413

Clamp

1шт.

30

M806745

Bolt

2шт.

32

MIA881260

Fuel Line

(SUB FOR AT211793)

1шт.

36

MIA881261

Fuel Line

(SUB FOR AT211795)

1шт.

40

MIA881262

Fuel Line

(SUB FOR AT211797)

1шт.

44

MIA881263

Fuel Line

(SUB FOR AT211799)

1шт.
