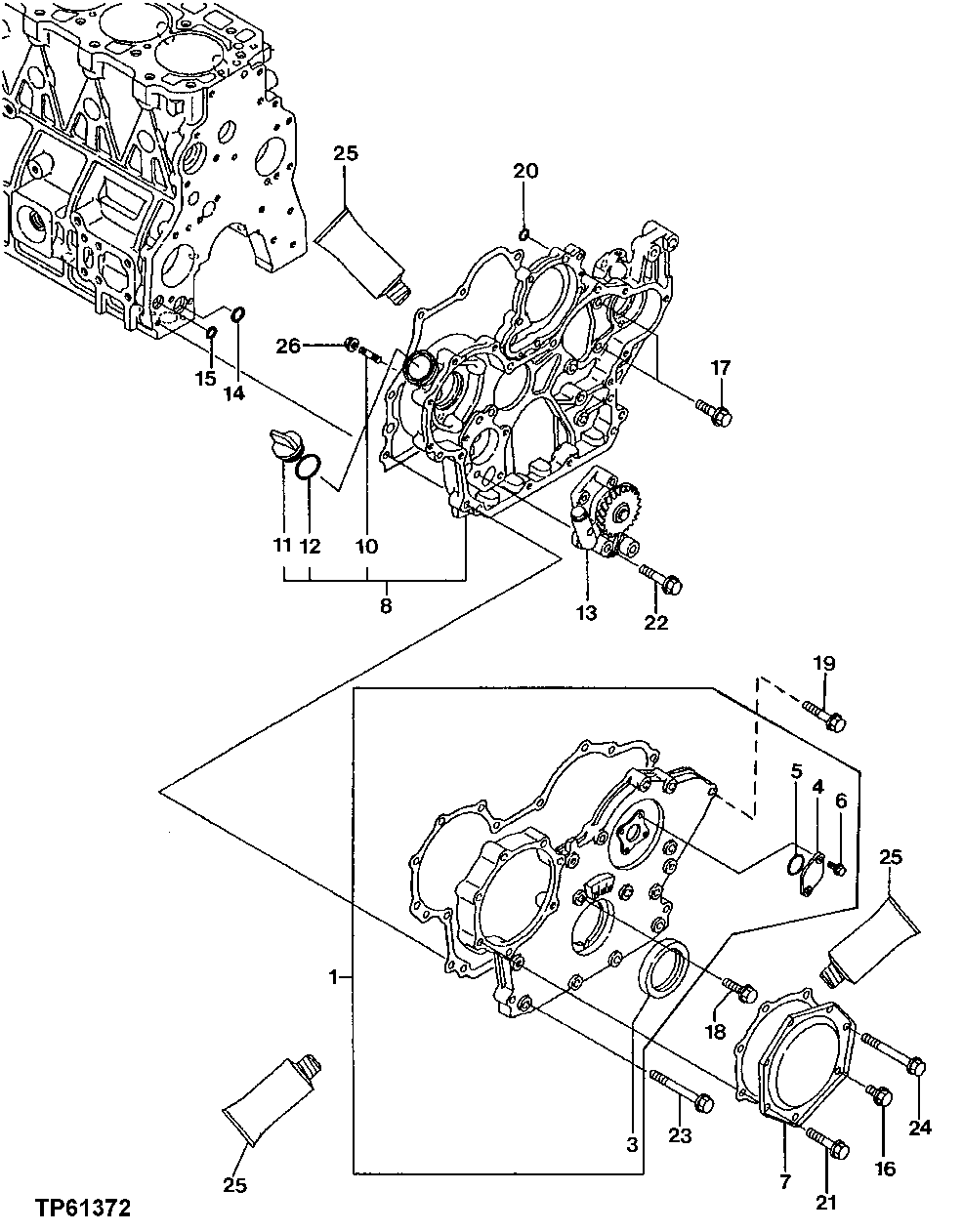

Запчасти John Deere 0 25 - TIMING GEAR COVER, OIL PUMP, AND OIL FILLER CAP 0402 Camshaft And Valve Actuating Means

1

AT211867

Cover

1шт.

3

AT211663

Seal

1шт.

4

MIU800476

Cover

(SUB FOR M87874)

1шт.

5

CH13526

Packing

1шт.

6

19M7775

Screw

M6 X 16

2шт.

7

AT211662

Cover

1шт.

8

AT211904

Gear Case

1шт.

10

M800056

Stud

4шт.

11

M805710

Cap

1шт.

12

M805711

Packing

1шт.

13

AT212086

Hydraulic Pump

(SUB FOR AT211668)

1шт.

14

AT211670

O-Ring

1шт.

15

AT211671

O-Ring

1шт.

16

19M7865

Screw

M8 X 16

1шт.

17

19M7866

Screw

M8 X 20

3шт.

18

19M7868

Screw

M8 X 30

1шт.

19

19M8317

Screw

M8 X 40 (SUB FOR M89128)

5шт.

20

CH10567

Packing

1шт.

21

19M8317

Screw

M8 X 40 (SUB FOR M89128)

5шт.

22

CH19101

Bolt

3шт.

23

19M7803

Screw

M8 X 70

6шт.

24

19M7803

Screw

M8 X 70

1шт.

25

M64850

Sealant

(GASKET SEALANT)

ARшт.

26

M88031

Nut

4шт.
