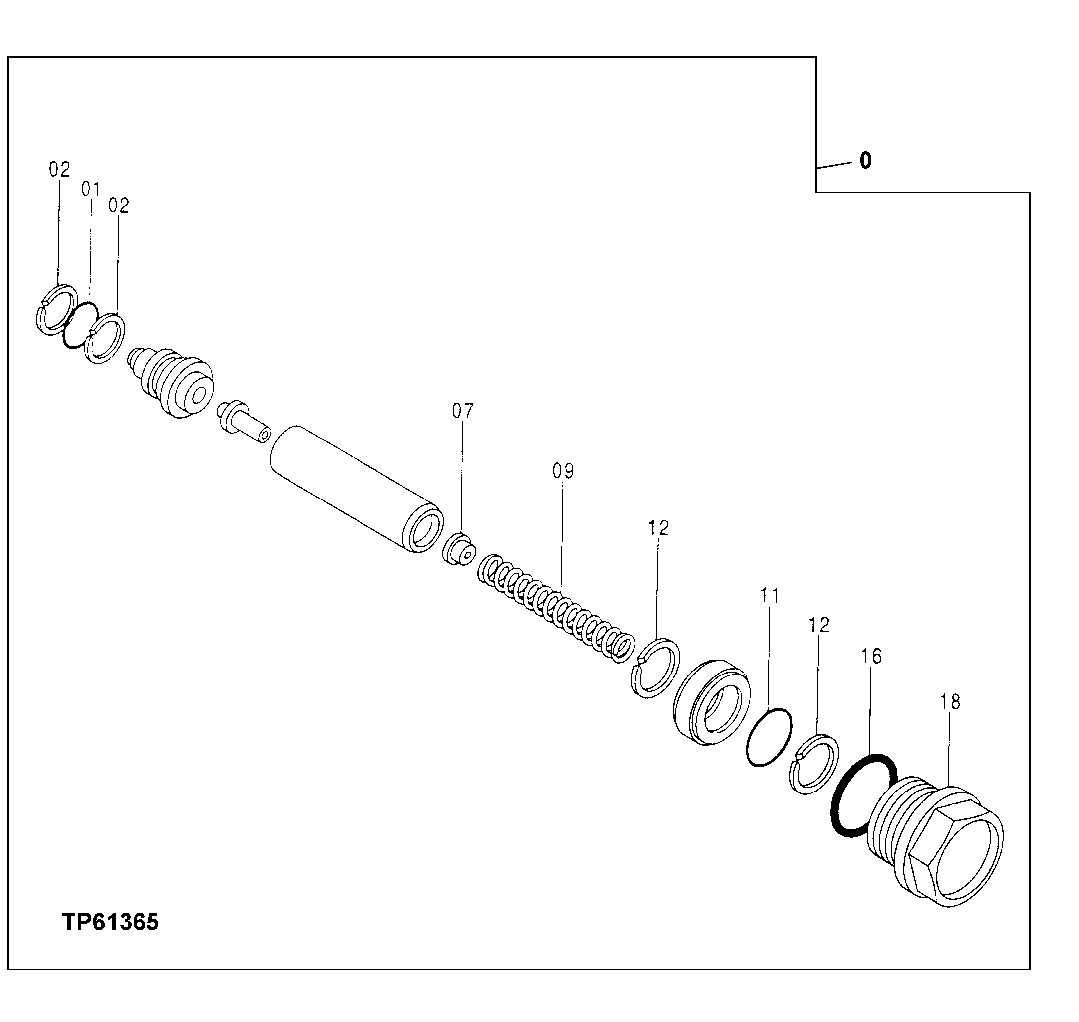

Запчасти John Deere 0 18 - Travel Motor Brake Relief Valve Components 0260 Hydraulic System

0

9160997

Pressure Relief Valve

SUB FOR AT250745 Propel Motor Brake Valve

1шт.

1

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

2

4038533

Back-Up Ring

SUB FOR TH100050

2шт.

7

4272420

Guide

SUB FOR AT203659

1шт.

9

4366571

Spring

SUB FOR AT250636

1шт.

11

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

12

4033725

Back-Up Ring

SUB FOR TH103576 OR 4S01080

2шт.

16

U17409

O-Ring

26.594 X 2.946 mm (1-3/64" X 0.116")

1шт.

18

4311779

Cap Screw

SUB FOR AT215884

1шт.
