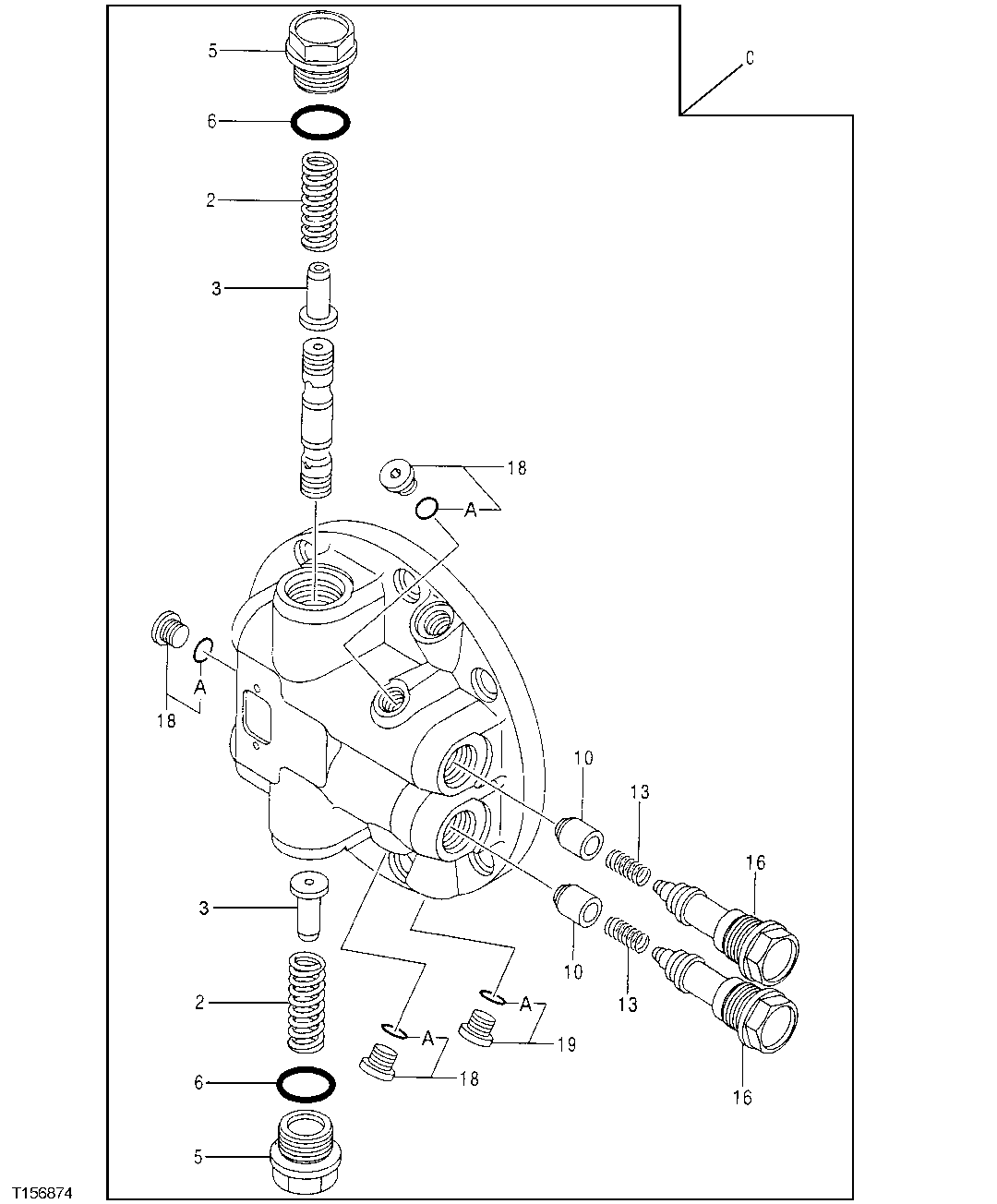

Запчасти John Deere 0 17 - Travel Motor Brake Valve Components 0260 Hydraulic System

0

9164298

Flow Control Hyd. Valve

Propel Motor Brake Valve (SUB FOR AT250748)

1шт.

2

4372079

Spring

(SUB FOR AT250637)

2шт.

3

4427428

Stop

(SUB FOR TH110469 AND 4154878)

2шт.

5

4229631

Drain Plug

(SUB FOR TH112085)

2шт.

6

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

10

4300918

Poppet

(SUB FOR AT200524)

2шт.

13

4383067

Spring

(SUB FOR AT250663)

2шт.

16

9160997

Pressure Relief Valve

(SUB FOR AT250745)

2шт.

18

9134110

Fitting

(SUB FOR AT203649)

3шт.

18A

M800650

Packing

1шт.

19

9134111

Fitting

(SUB FOR AT203648)

1шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
