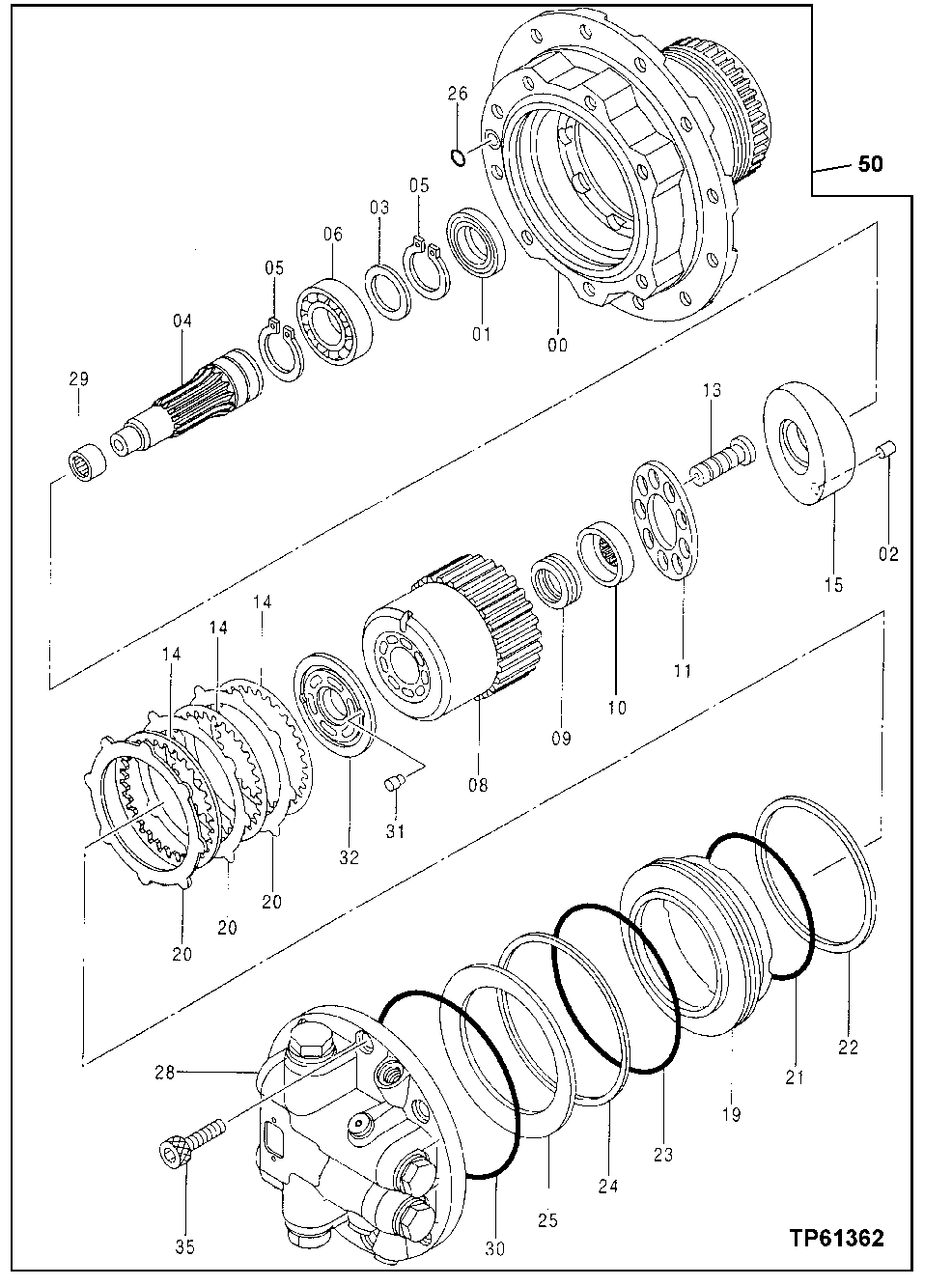

Запчасти John Deere 0 16 - Track Drive Motor 0260 Hydraulic System

0

1022191

Housing

SUB FOR AT250564

1шт.

1

4364328

Seal

SUB FOR AT250633

1шт.

2

4212842

Pin

10.008 X 14.122 mm (0.394" X 0.556") SUB FOR AT154155

1шт.

3

4377019

Thrust Washer

SUB FOR AT250646

1шт.

4

3074981

Shaft

SUB FOR AT250580

1шт.

5

962002

Snap Ring

SUB FOR TH100483

2шт.

6

JD9345

Ball Bearing

SUB FOR 4002151

1шт.

8

2042527

Rotor

SUB FOR AT250570 OR 20389 14, ALSO ORDER (3) 3082753

1шт.

9

4289874

Disk Spring

SUB FOR AT250604

1шт.

10

3065991

Bushing

SUB FOR AT250577

1шт.

11

3081727

Retainer

SUB FOR 3065989 AND AT250576

1шт.

13

8065475

Piston

SUB FOR AT250739

9шт.

14

3082753

Plate

SUB FOR AT250582 OR 308 2753, ALSO ORDER 2042527

3шт.

15

Swash Plate

3074980 NLA

1шт.

19

3074978

Piston

SUB FOR AT250578

1шт.

20

3075729

Plate

SUB FOR AT250581

3шт.

21

4058180

O-Ring

SUB FOR 4403647

1шт.

22

4364326

Back-Up Ring

SUB FOR AT250631

1шт.

23

4364322

O-Ring

SUB FOR 4403648

1шт.

24

4364327

Back-Up Ring

SUB FOR AT250632

1шт.

25

4364329

Disk Spring

SUB FOR AT250634

1шт.

26

T111819

O-Ring

14.800 X 2.400 mm (0.583" X 3/32") SUB FOR 4506415

1шт.

28

9164298

Flow Control Hyd. Valve

1шт.

29

4364330

Needle Bearing

SUB FOR AT250635

1шт.

30

4364323

O-Ring

SUB FOR AT250630

1шт.

31

4271350

Pin

SUB FOR AT154313

2шт.

32

3065986

Port Plate

SUB FOR AT250575

1шт.

35

M341432

Screw

SUB FOR AT250752

8шт.

50

9169433

Hydraulic Motor

1шт.
