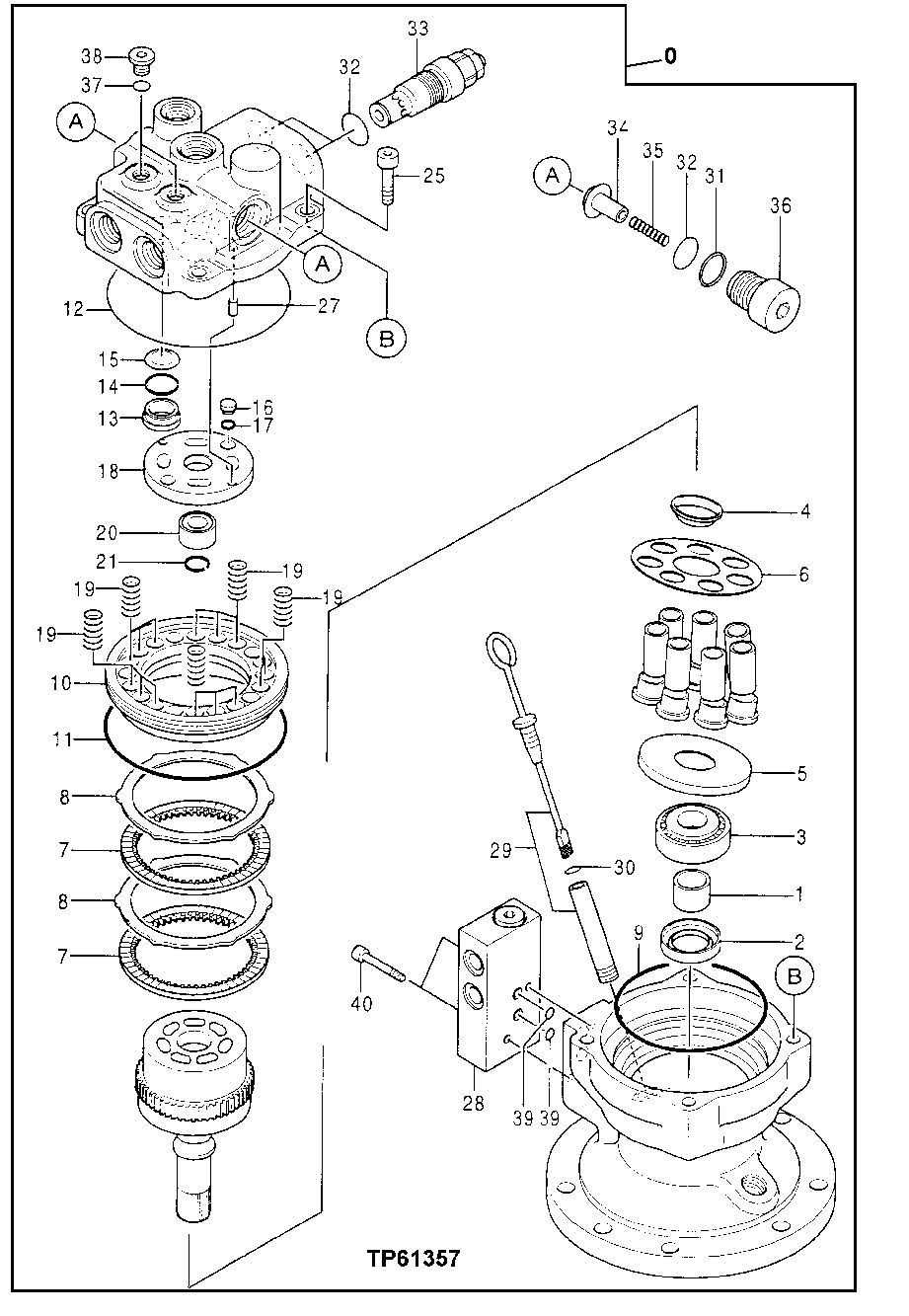

Запчасти John Deere 0 207 - Swing Motor Components 4360 Hydraulics

0

Hydraulic Motor

4417646 NLA

1шт.

1

0476703

Bushing

SUB FOR AT250491

1шт.

2

0476702

Seal

SUB FOR AT250490

1шт.

3

0476704

Cylindrical Roller Bearing

SUB FOR AT250492

1шт.

4

0476708

Disk Spring

SUB FOR AT250495

1шт.

5

0476705

Retainer

SUB FOR AT250493

1шт.

6

0476707

Swash Plate

SUB FOR AT250494

1шт.

7

0443501

Brake Disk

SUB FOR AT250468

2шт.

8

0443502

Brake Disk

SUB FOR AT250469

2шт.

9

0443503

O-Ring

SUB FOR AT250470

1шт.

10

0443504

Housing

SUB FOR AT250471

1шт.

11

0476718

O-Ring

SUB FOR AT250498

1шт.

12

0443505

O-Ring

SUB FOR AT250472

1шт.

13

0443506

Bushing

SUB FOR AT250473

4шт.

14

0443507

O-Ring

SUB FOR AT250474

4шт.

15

0443508

Ring

SUB FOR AT250475

4шт.

16

0443509

Piston

SUB FOR AT250476

2шт.

17

0443510

O-Ring

SUB FOR AT250477

2шт.

18

0443511

Port Plate

SUB FOR AT250478

1шт.

19

0443512

Spring

SUB FOR AT250479

15шт.

20

0443513

Needle Bearing

SUB FOR AT250480

1шт.

21

0476710

Snap Ring

SUB FOR AT250496

1шт.

25

19M8169

Screw

M12 X 30

4шт.

27

0476716

Dowel Pin

SUB FOR AT250497

2шт.

28

0443514

Flow Control Hyd. Valve

SUB FOR AT250481

1шт.

29

0443515

Dipstick Tube

SUB FOR AT250482

1шт.

30

0443516

O-Ring

SUB FOR AT250483

1шт.

31

4144045

O-Ring

SUB FOR 0212312

2шт.

32

0212313

O-Ring

SUB FOR TH100242

4шт.

33

0443517

Pressure Relief Valve

SUB FOR AT250484

2шт.

34

0443518

Check Valve

SUB FOR AT250485

2шт.

35

0622827

Spring

SUB FOR AT202011

2шт.

36

0443519

Fitting Plug

SUB FOR AT250486

2шт.

37

M800650

Packing

2шт.

38

0622810

Cap

SUB FOR AT201994

2шт.

39

0443520

O-Ring

SUB FOR AT250487

2шт.

40

0443521

Screw

SUB FOR AT250488

2шт.
