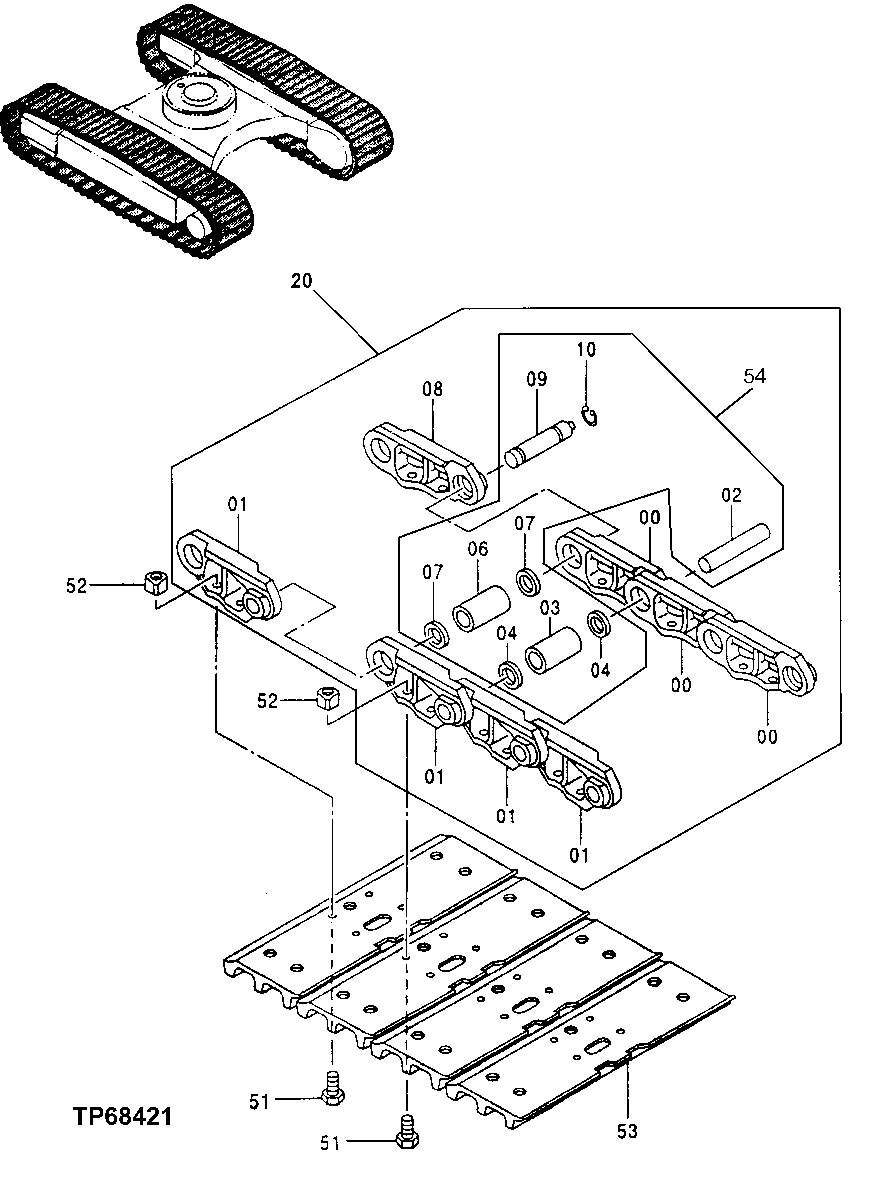

Запчасти John Deere 0 11 - Track Chain Assembly and Shoes (100000 - ) 0130 Track Systems

0

T211424

Track Link

RH (SUB FOR P65886)

37шт.

1

T211425

Track Link

LH (SUB FOR P65887)

38шт.

2

T211427

Pin

(SUB FOR P65888)

37шт.

3

T211428

Track Bushing

(SUB FOR P65889)

37шт.

4

T211433

Seal

(SUB FOR P65890)

74шт.

6

T211429

Master Track Bushing

(SUB FOR P65891)

1шт.

7

T211431

Spacer

(SUB FOR P65892)

2шт.

8

T211426

Master Track LINK-RH

(SUB FOR P65893)

1шт.

9

T211430

Master Track Pin

(SUB FOR P65894)

1шт.

10

T211432

Snap Ring

(SUB FOR P65895)

1шт.

20

Track Link

Each Side Of Unit ( AP36100 NLA)

1шт.

51

T211434

Track Bolt

Each Side Of Unit

152шт.

52

T211435

Nut

Each Side Of Unit (SUB FOR AT134382 OR 4262587)

152шт.

53

P65885

Single Bar Shoe

450 mm, Each Side Of Unit

38шт.

AT183364

Single Bar Shoe

600 mm, Each Side Of Unit

38шт.

54

AT183380

Pin & Bushing Kit

1шт.
