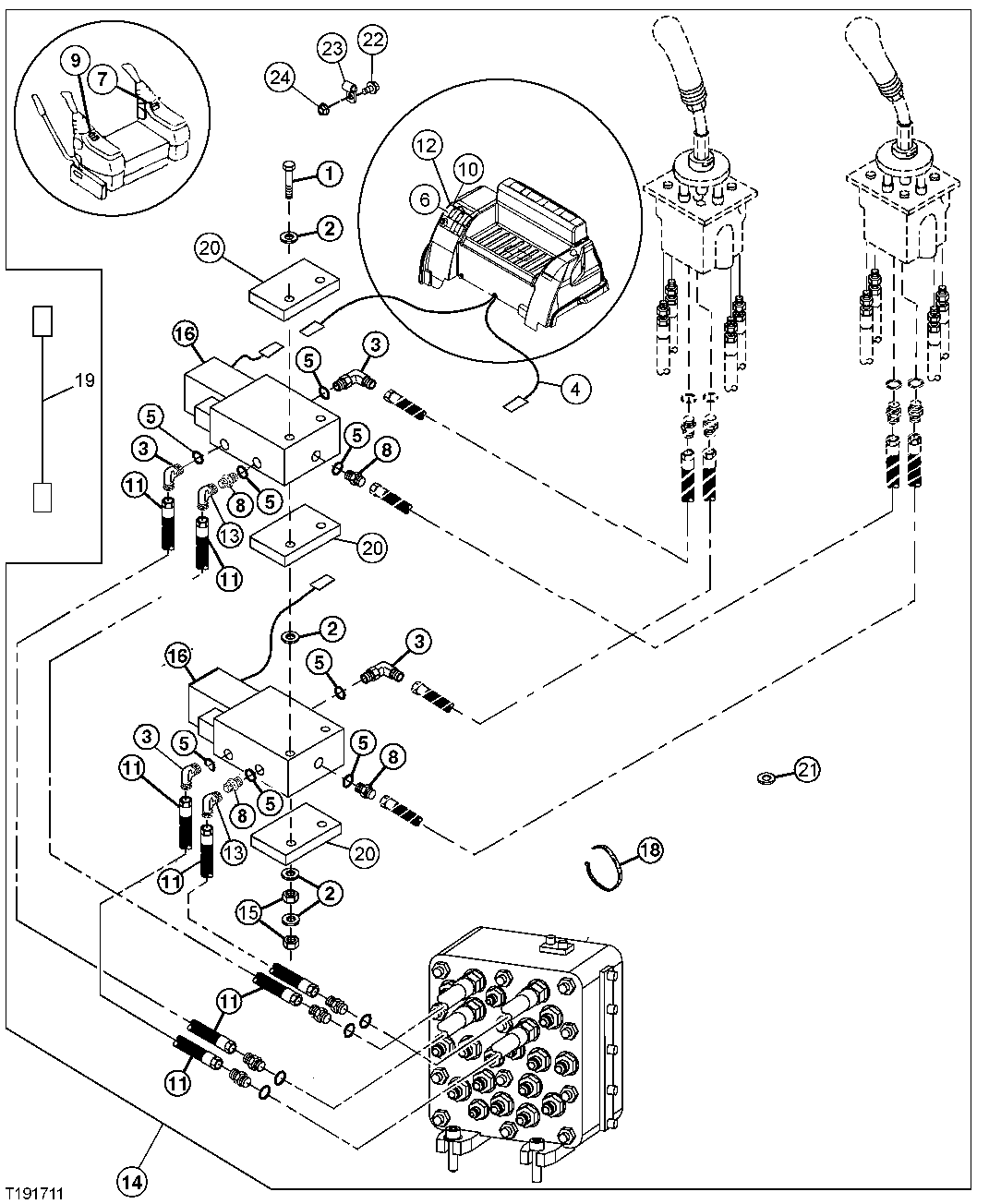

Запчасти John Deere 0 204 - CONTROL PATTERN SELECTOR KIT 3360 Hydraulic System

1

19M8332

Cap Screw

M6 X 90

2шт.

2

24M7100

Washer

6.600 X 22 X 2 mm

10шт.

3

AT35121

Elbow Fitting

37 Deg Flare O-Ring

4шт.

4

AT307710

Wiring Harness

(SUB FOR AT190535)

1шт.

5

R26448

O-Ring

8шт.

6

AT83721

Toggle/Rocker Switch

Locking

1шт.

7

T159843

Label

CONTROL RIGHT

4шт.

8

R27212

Fitting

4шт.

9

T159844

Label

Control Left

1шт.

10

T184858

Label

Control Pattern

1шт.

11

AT71082

Hydraulic Hose

4шт.

12

37H43

Screw

DRIVE SELF TAPPING

2шт.

13

AE24616

Elbow Fitting

2шт.

14

Kit

( AT307709 NLA ) (WHOLE GOODS) CONTROL PATTERN SELECTOR KIT (SUB FOR AT191397)

1шт.

15

14M7272

Nut

M6

4шт.

16

AT306723

Elec.Proportional Valve

(SUB FOR AT116486 AND AT140041)PIN DISCONNECT

2шт.

Electrical Coil

( AT140041 NLA )

1шт.

18

R44302

Tie Band

ARшт.

19

AT304407

Wiring Harness

(SUB FOR AT197367) (EXTENSION)

1шт.

20

T202379

Bracket

3шт.

21

T63817

Grommet

1шт.

22

19M7863

Screw

M6 X 25

3шт.

23

T22645

Clip

4шт.

24

14M7272

Nut

M6

3шт.

25

AR94101

Diode

Not Illustrated

1шт.
