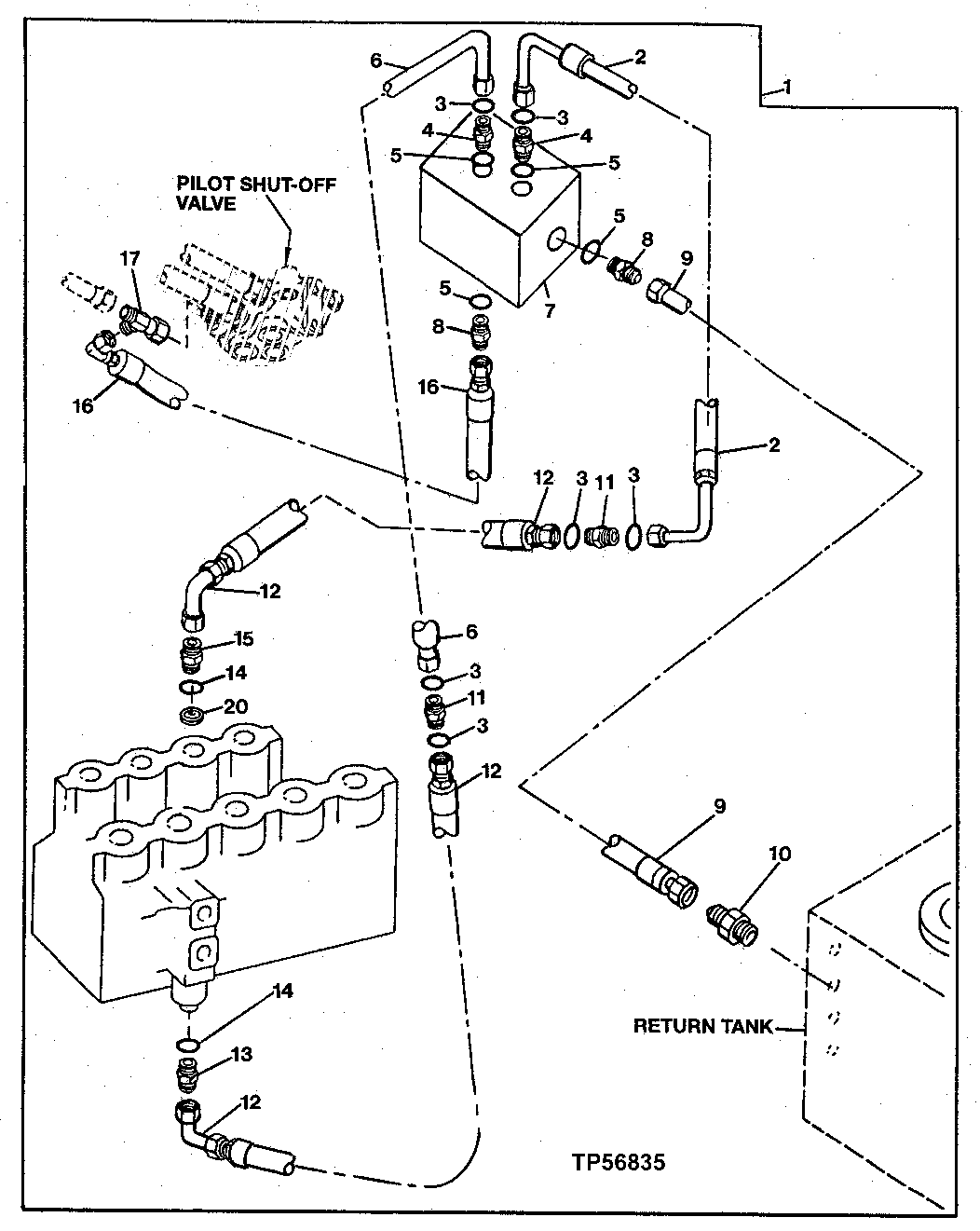

Запчасти John Deere 0 201 - ELECTRIC SOLENOID VALVE KIT (1 WAY/2 WAY) 3360 Hydraulic System

1

Kit

(WHOLE GOODS) ( AT180467 NLA)

1шт.

2

AT186417

Hydraulic Hose

11.1252" X 254 mm (10") X 17.4752"

1шт.

3

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

6шт.

4

38H1160

Adapter Fitting

2шт.

5

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

6

AT168209

Hydraulic Hose

17.4752" X 1066 mm (42") X 17.4752"

1шт.

7

AT180585

Solenoid Valve

1шт.

AT139433

Electrical Coil

2шт.

8

R27212

Fitting

2шт.

9

AT71732

Hydraulic Hose

9/16" X 1422 mm (56") X 9/16"

1шт.

10

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

11

38H1278

Union Fitting

2шт.

12

AT152138

Hydraulic Hose

9/16" X 515 mm (20-1/4") X 17.4752"

2шт.

13

AT131445

Adapter Fitting

1шт.

14

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

15

AT318019

Adapter Fitting

(SUB FOR 4255792, AT213811)

1шт.

16

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16"

1шт.

17

AT36921

Tee Fitting

1шт.

18

14M7272

Nut

M6 (/SOLENOID VALVE/ (NOT ILLUSTRATED))

2шт.

19

19M7529

Cap Screw

M6 X 55 (/SOLENOID VAL VE/ (NOT ILLUSTRATED))

2шт.

20

T114635

Orifice

1шт.
