200 - AUXILIARY FUNCTION ELECTRIC FOOT SWITCH (ONE SOLENOID)

Запчасти John Deere 0 200 - AUXILIARY FUNCTION ELECTRIC FOOT SWITCH (ONE SOLENOID) 3360 Hydraulic System

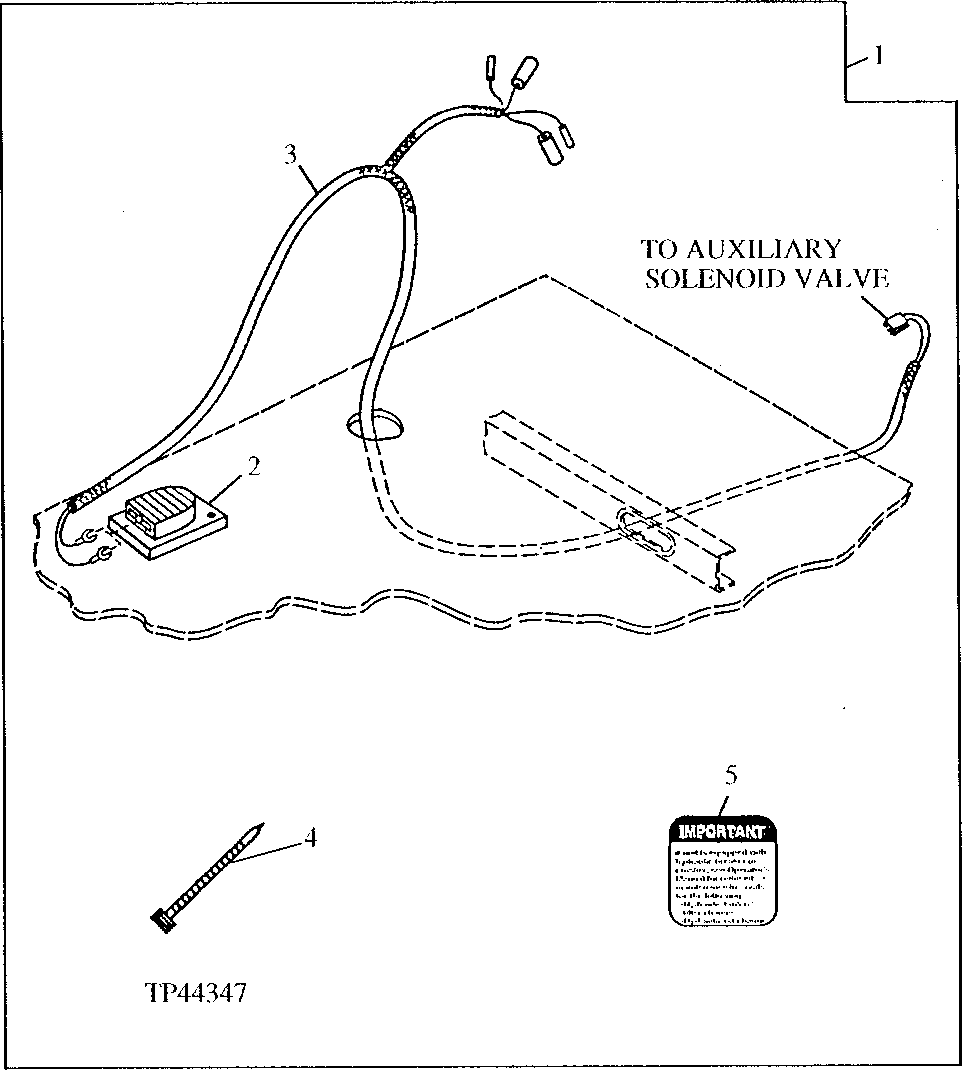

Схема запчастей John Deere 0 - 200 - AUXILIARY FUNCTION ELECTRIC FOOT SWITCH (ONE SOLENOID) 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT196587

Switch

(SUB FOR AT164896)WHOLE GOODS (ELECT RIC FOOT SWITCH FOR AUXILIARY VALVE)

1шт.

2

AT82210

Switch

(ELECTRIC FOOT CONTROL)

1шт.

3

AT196588

Wiring Harness

1шт.

4

R44302

Tie Band

(USE AS REQUIRED)

2шт.

5

T149434

Label

(IMPORTANT - AUXILIARY ELECTRIC CONTROL)

1шт.
