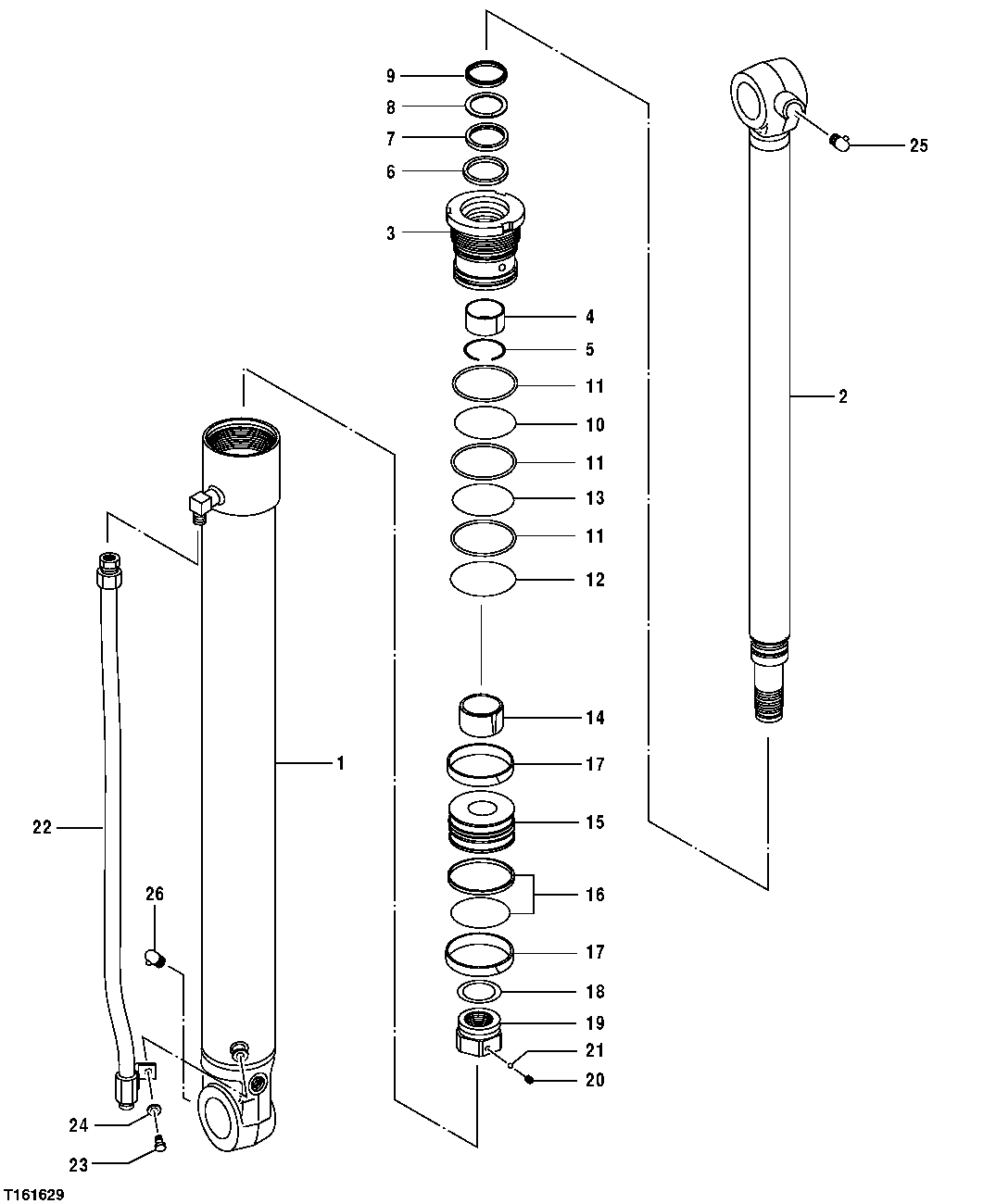

Запчасти John Deere 0 194 - BOOM OFFSET CYLINDER COMPONENTS AND OIL LINES 3360 Hydraulic System

1

0728801

Hydraulic Cylinder Barrel

(SUB FOR AT250763)

1шт.

2

0728802

Rod

(SUB FOR TH106006)

1шт.

3

0728803

Cylinder Head

1шт.

4

0444706

Bushing

1шт.

5

0225704

Snap Ring

1шт.

6

AT264380

Ring

(SUB FOR 0225714)

1шт.

7

AT264378

Ring

(SUB FOR 0225711)

1шт.

8

AT264379

Back-Up Ring

(SUB FOR 0225712)

1шт.

9

AT264377

Ring

(SUB FOR 0444715)

1шт.

10

AT264319

O-Ring

(SUB FOR A811100)

1шт.

11

0310506

Back-Up Ring

3шт.

12

A810105

O-Ring

1шт.

13

AT264318

O-Ring

1шт.

14

0728804

Bearing

1шт.

15

0487002

Piston

1шт.

16

AT264387

Ring

(SUB FOR 0310508)

1шт.

17

AT264233

Ring

(SUB FOR 0333209, AT130561)

2шт.

18

0333008

Shim

1шт.

19

0728805

Nut

1шт.

20

0310612

Set Screw

1шт.

21

0111818

Ball

1шт.

22

0728806

Line

1шт.

23

0714807

Screw

1шт.

24

0714808

Washer

1шт.

25

0159411

Lubrication Fitting

1шт.

26

T116334

Lubrication Fitting

(SUB FOR J75581)

1шт.
