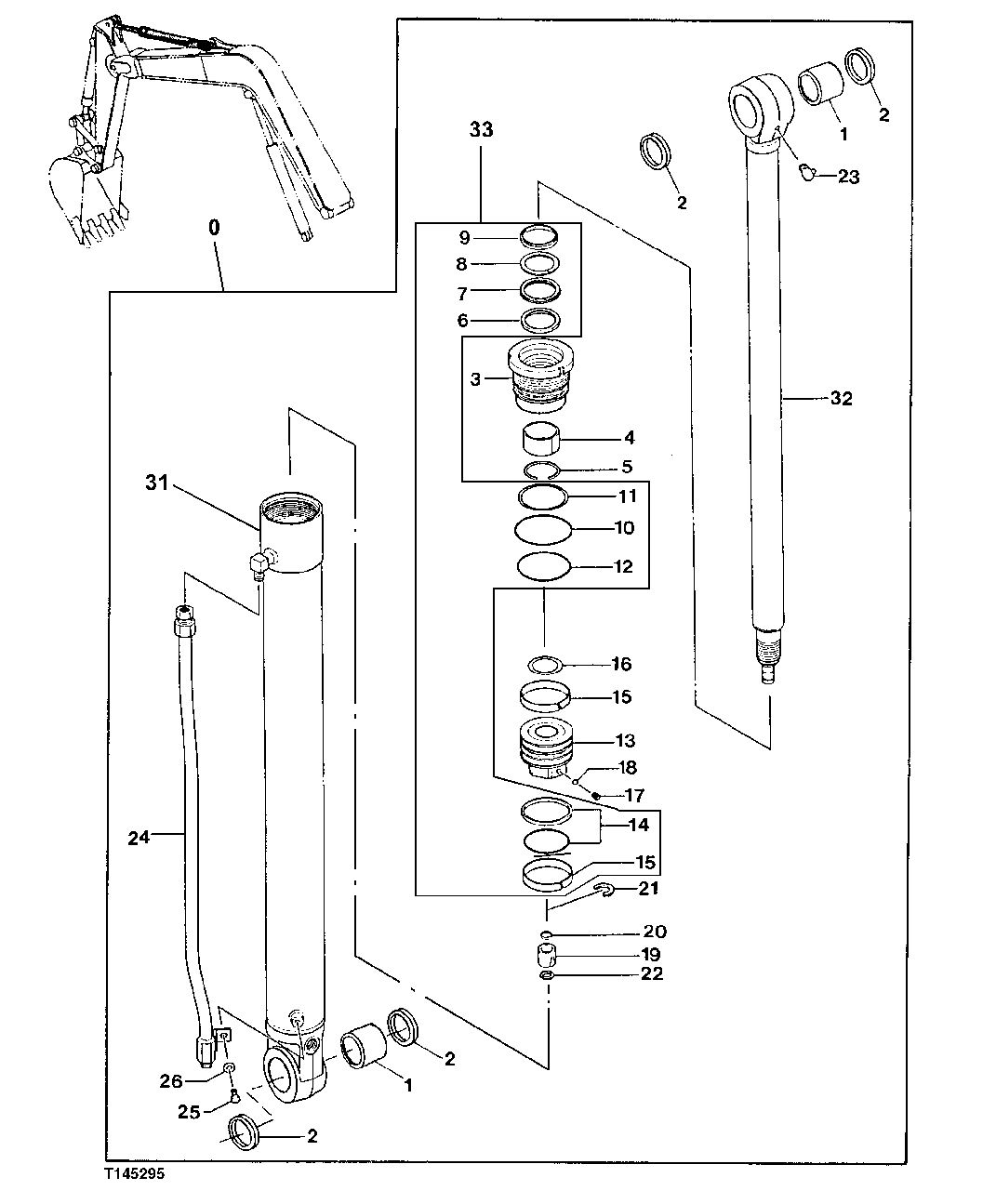

Запчасти John Deere 0 190 - ARM CYLINDER COMPONENTS AND OIL LINES (WITH STANDARD BOOM) 3360 Hydraulic System

0

4390913

Cylinder

(SUB FOR AP36041) (INCLUDES CYLINDER BUSHINGS AND SEALS)

1шт.

1

4374602

Bushing

(SUB FOR AT250642)

2шт.

2

4117954

Seal

(SUB FOR TH106006)

4шт.

3

0444705

Hydr. Cylinder Rod Guide

(SUB FOR AT200276)

1шт.

4

0444706

Bushing

60.060 X 65 X 35 mm (2.365" X 2. 559" X 1.378") (SUB FOR AT200277)

1шт.

5

0225704

Snap Ring

(A) (SUB FOR TH105772)

1шт.

6

AT264380

Ring

(A) (SUB FOR TH105780)

1шт.

7

AT264378

Ring

(A) (SUB FOR TH105778)

1шт.

8

AT264379

Back-Up Ring

(A) (SUB FOR TH105779)

1шт.

9

AT264377

Ring

(A) (SUB FOR TH105777)

1шт.

10

CH18696

Packing

(A)

1шт.

11

AT264391

Back-Up Ring

(A) (SUB FOR TH109374)

1шт.

12

CH17447

Packing

(A)

1шт.

13

0714903

Piston

(SUB FOR AT250556)

1шт.

14

AT264392

Ring

(A) (SUB FOR TH109376)

1шт.

15

AT264229

Ring

(A) (SUB FOR 0333007, 0495713, AT130547)

2шт.

16

0333008

Shim

(SUB FOR AT130548)

1шт.

17

22M7139

Set Screw

M10 X 10

1шт.

18

400R

Ball

6.350 mm (1/4")

1шт.

19

0444708

Bearing

(SUB FOR AT200279)

1шт.

20

0714904

Seal

(SUB FOR AT250557)

1шт.

21

0444710

Snap Ring

(SUB FOR AT200281)

1шт.

22

0396211

Snap Ring

(SUB FOR AT200197)

2шт.

23

JD7781

Lubrication Fitting

90° X 21.336 mm Long (0.840" Long)

1шт.

24

0714905

Oil Line

(SUB FOR AT250558)

1шт.

25

0714807

Screw

(SUB FOR AT250552)

1шт.

26

0714808

Washer

(SUB FOR AT250553)

1шт.

31

0714901

Hydraulic Cylinder Barrel

(SUB FOR AT250554)

1шт.

32

0714902

Rod

(SUB FOR AT250555)

1шт.

33

AT194439

Seal Kit

Includes Parts Marked (A) (SUB FOR AT200549)

1шт.
