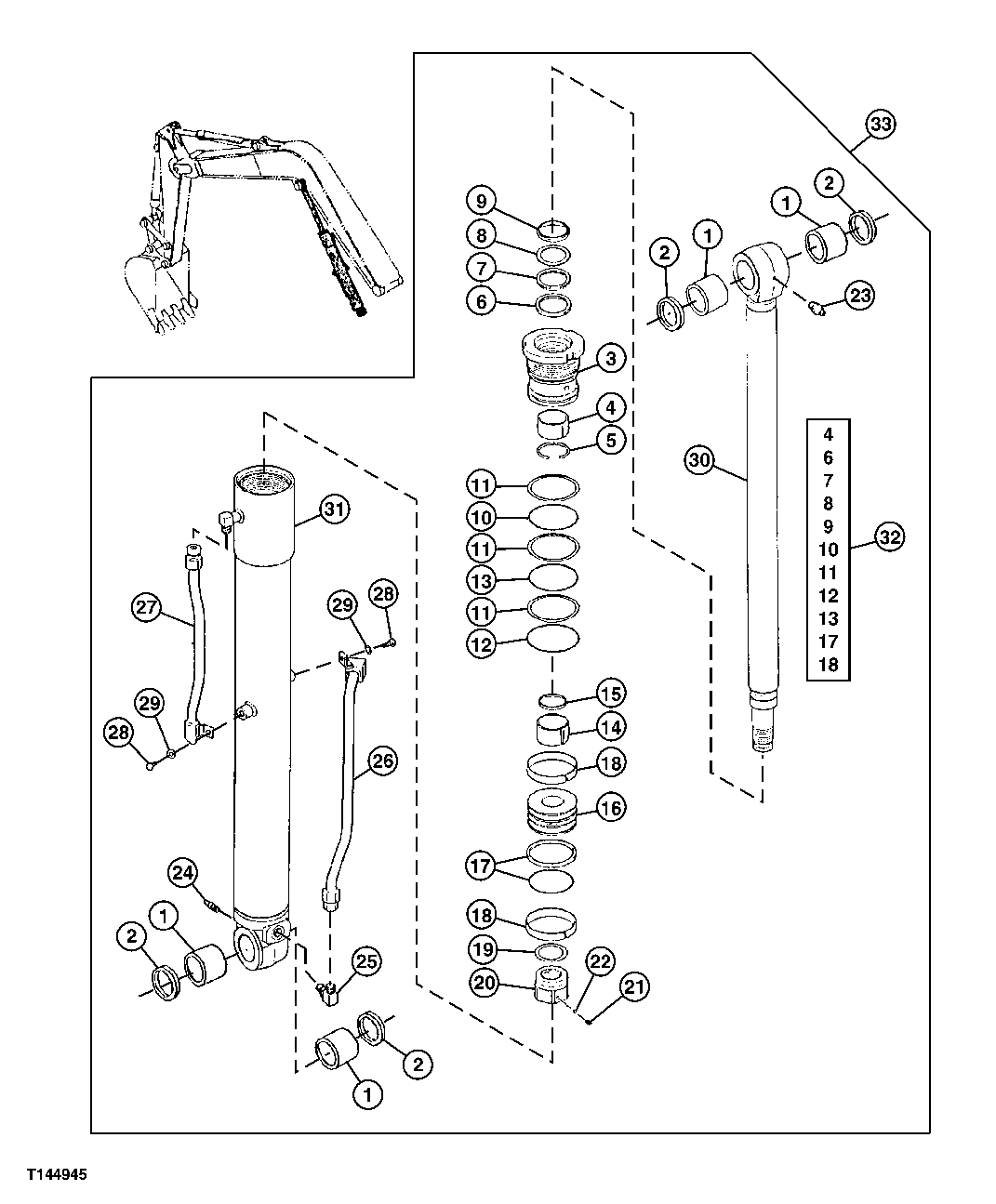

Запчасти John Deere 0 189 - BOOM CYLINDER COMPONENTS AND OIL LINES 3360 Hydraulic System

1

4334426

Bushing

(SUB FOR AT250606)

4шт.

2

4117954

Seal

(SUB FOR TH106006)

4шт.

3

0444606

Hydr. Cylinder Rod Guide

(SUB FOR AT200265)

1шт.

4

0444607

Bushing

(A) 65.060 X 70 X 35 mm (2.561" X 2.756" X 1.378") (SUB FOR AT200266)

1шт.

5

4510494

Snap Ring

(SUB FOR TH106169)

1шт.

6

AT264376

Ring

(A) (SUB FOR TH105766, 4S00167)

1шт.

7

AT264374

Seal

(A) (SUB FOR TH105764)

1шт.

8

AT264375

Back-Up Ring

(A) (SUB FOR TH105765)

1шт.

9

H158164

Scraper Ring

(A)

1шт.

10

AT264320

O-Ring

(A) 109.400 X 3.100 mm (4.30 7" X 0.122") (SUB FOR T110448)

1шт.

11

TH109353

Back-Up Ring

(A) 110 X 115 X 1.500 mm (4.331" X 4.528" X 0.059")

3шт.

12

CH13522

Packing

(A)

1шт.

13

AT264223

O-Ring

(A) (SUB FOR AT121852, A811105)

1шт.

14

0396105

Bearing

(SUB FOR AT200196)

1шт.

15

0714803

Seal

(SUB FOR AT250548)

1шт.

16

0330906

Piston

(SUB FOR TH110292)

1шт.

17

TH105767

Ring

(A)

1шт.

18

TH105770

Ring

(A)

2шт.

19

TH110253

Shim

(SUB FOR 0326007)

1шт.

20

H158175

Nut

1шт.

21

22M7139

Set Screw

M10 X 10

1шт.

22

400R

Ball

6.350 mm (1/4")

1шт.

23

TH100074

Lubrication Fitting

1шт.

24

T116334

Lubrication Fitting

1шт.

25

0714804

Elbow Fitting

(SUB FOR AT250549)

1шт.

26

0714805

Oil Line

(SUB FOR AT250550)

1шт.

27

0714806

Oil Line

(SUB FOR AT250551)

1шт.

28

0714807

Screw

(SUB FOR AT250552)

2шт.

29

0714808

Washer

(SUB FOR AT250553)

2шт.

30

0714802

Rod

(SUB FOR AT250547)

1шт.

31

0714801

Hydraulic Cylinder Barrel

(SUB FOR AT250546)

1шт.

32

AT194497

Seal Kit

Includes Parts Marked (A) (SUB FOR AT200548)

1шт.

33

9154548

Hydraulic Cylinder

(SUB FOR AP36040) (INCLUDES CYLINDER BUSHINGS AND SEALS)

1шт.
