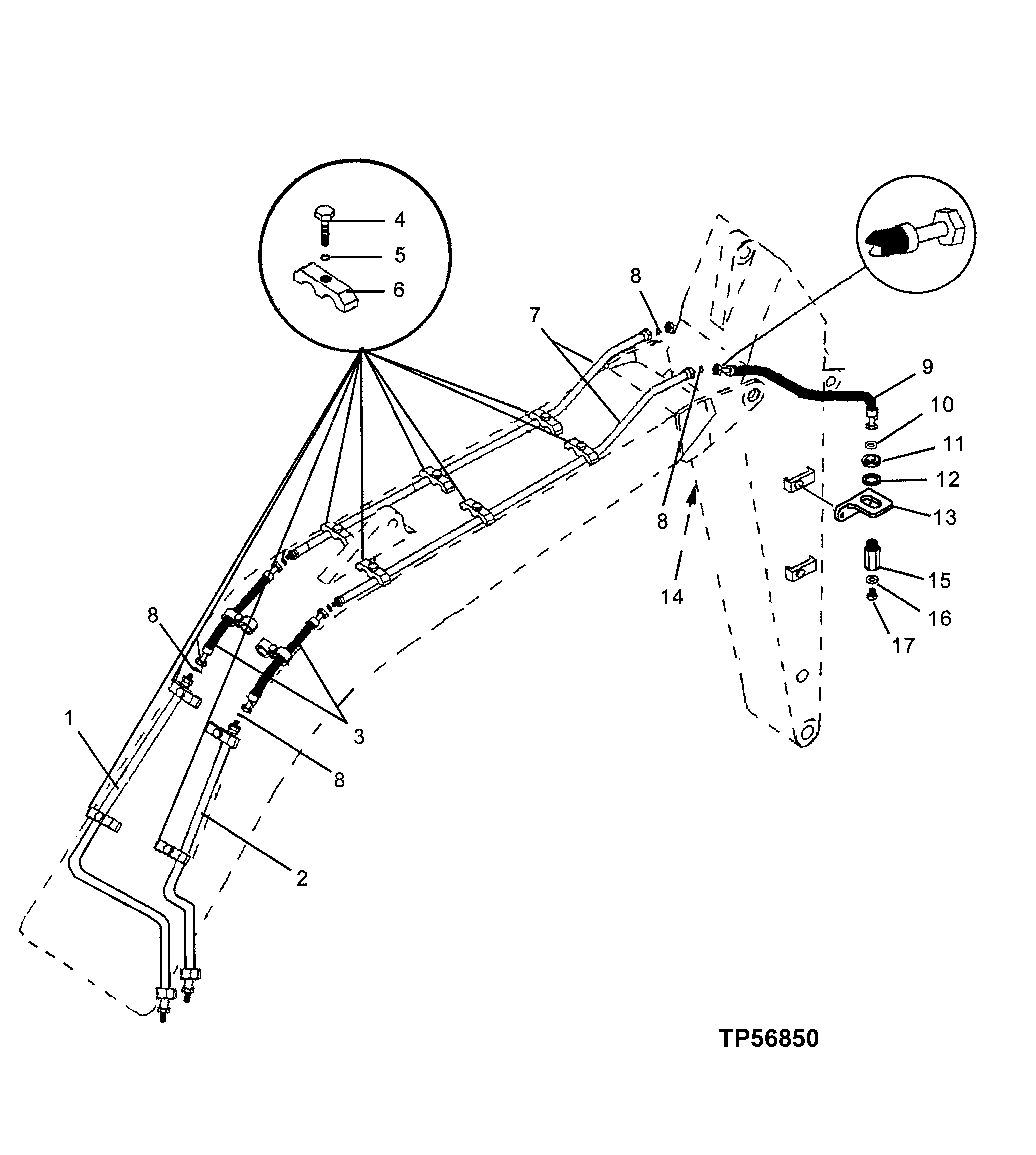

Запчасти John Deere 0 187 - AUXILIARY FUNCTION BOOM LINES AND HOSES (STANDARD BOOM) 3360 Hydraulic System

1

AT184984

Oil Line

1шт.

2

AT184983

Oil Line

1шт.

3

AT107220

Hydraulic Hose

2шт.

4

19M7361

Cap Screw

M12 X 50

10шт.

5

12H301

Lock Washer

1/2"

10шт.

6

4189858

Clamp

(SUB FOR TH108333)

10шт.

7

AT184981

Oil Line

2шт.

8

T77858

O-Ring

6шт.

9

AT160176

Hydraulic Hose

2шт.

10

T77858

O-Ring

2шт.

11

T78707

Nut

2шт.

12

24H1498

Washer

1-9/32" X 2-1/8" X 0.120"

2шт.

13

T162682

Bracket

Right

1шт.

14

T162681

Bracket

Left

1шт.

15

T163702

Reducer

2шт.

16

T77858

O-Ring

2шт.

17

R27175

Drain Plug

2шт.
