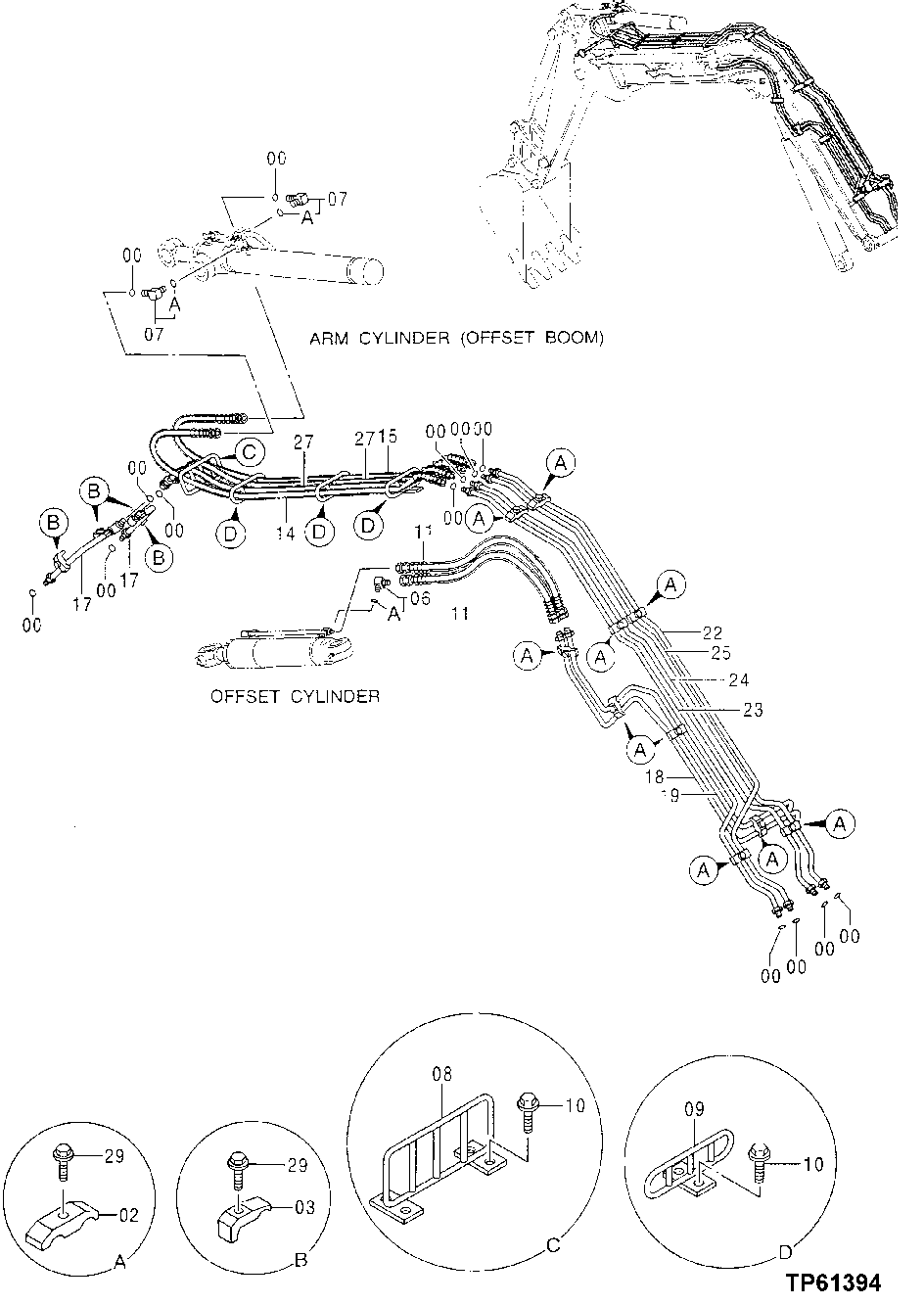

Запчасти John Deere 0 185 - BOOM LINES (TO ARM, OFFSET, AND BUCKET CYLINDERS, OFFSET BOOM) 3360 Hydraulic System

1

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

14шт.

2

4189858

Clamp

(SUB FOR TH108333)

10шт.

3

4190125

Clamp

(SUB FOR TH108960)

4шт.

6

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

6A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

A853344

Elbow Fitting

(SUB FOR TH108401, 4200580)

2шт.

7A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

8

8070298

Bracket

(SUB FOR AP35988)

1шт.

9

AP35989

Bracket

3шт.

10

19M7872

Cap Screw

M12 X 25

10шт.

11

AP35978

Hydraulic Hose

2шт.

14

AP35977

Hydraulic Hose

1шт.

15

AP35979

Hydraulic Hose

1шт.

17

8070313

Line

(SUB FOR AP35987)

2шт.

18

8070281

Line

(SUB FOR AP35981)

1шт.

19

8070282

Line

(SUB FOR AP35982)

1шт.

22

8070286

Line

(SUB FOR AP35986)

1шт.

23

8070285

Line

(SUB FOR AP35985)

1шт.

24

8070284

Line

(SUB FOR AP35984)

1шт.

25

8070283

Line

(SUB FOR AP35983)

1шт.

27

AP35980

Hydraulic Hose

2шт.

29

19M7361

Cap Screw

M12 X 50

14шт.

12H301

Lock Washer

1/2"

14шт.
