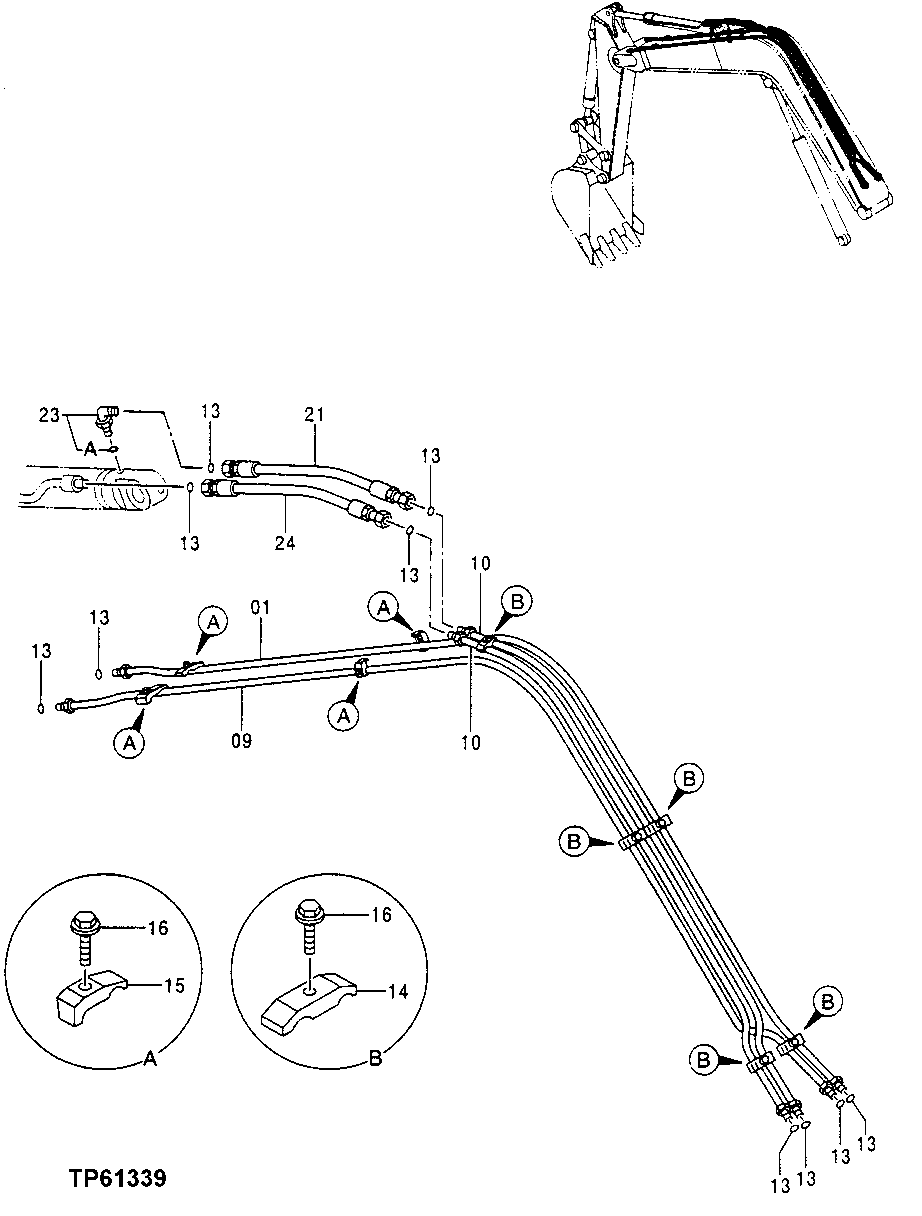

Запчасти John Deere 0 184 - BOOM LINES (TO ARM AND BUCKET CYLINDERS, STANDARD BOOM) 3360 Hydraulic System

1

8067203

Line

(SUB FOR AP36232)

1шт.

9

8067204

Line

(SUB FOR AP36233)

1шт.

10

8067202

Line

(SUB FOR AP36234)

2шт.

13

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

10шт.

14

4189858

Clamp

(SUB FOR TH108333)

5шт.

15

4190125

Clamp

(SUB FOR TH108960)

4шт.

16

19M7361

Cap Screw

M12 X 50

9шт.

12H301

Lock Washer

1/2"

9шт.

21

AP36236

Hydraulic Hose

1шт.

23

A853344

Elbow Fitting

(SUB FOR TH108401, 4200580)

1шт.

23A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

24

AP36235

Hydraulic Hose

1шт.
