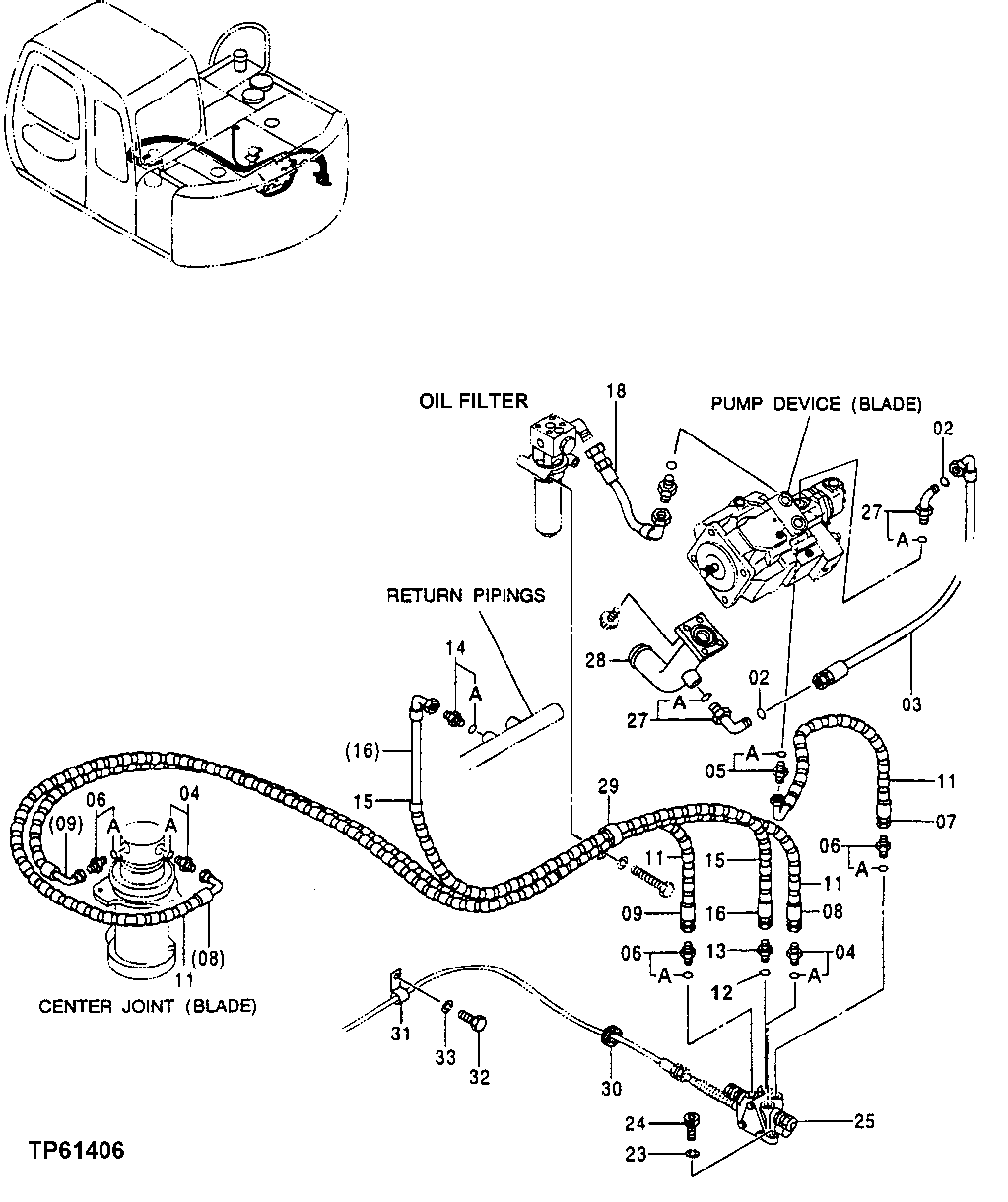

Запчасти John Deere 0 182 - Hydraulic Supply Lines (Blade Option) 3360 Hydraulic System

2

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

3

4223584

Hydraulic Hose

(SUB FOR TH111890)

1шт.

4

4221290

Adapter Fitting

(SUB FOR AT131902)

2шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

5A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

6

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

6A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

AP36090

Hydraulic Hose

9/16" X 470 mm (18-1/2") X 9/16"

1шт.

8

AP36092

Hydraulic Hose

3/4" X 2450 mm (96-1/2") X 3/4"

1шт.

9

AT200740

Hydraulic Hose

9/16" X 2350 mm (92-1/2") X 9/16"

1шт.

11

AT264333

O-Ring

(SUB FOR TH100096)

11шт.

12

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

13

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

14

4279302

Adapter Fitting

(SUB FOR AT200475)

1шт.

14A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

15

AT264333

O-Ring

(SUB FOR TH100096)

2шт.

16

AT200765

Hydraulic Hose

3/4" X 1550 mm (61") X 3/4"

1шт.

18

AP36458

Hydraulic Hose

1шт.

23

12M7066

Lock Washer

10 mm

3шт.

24

19M8337

Screw

M10 X 30

3шт.

25

4350437

Hyd Actuated Control Valve

(SUB FOR AT171945) (BLADE)

1шт.

27

4157562

Elbow Fitting

(SUB FOR TH109540)

2шт.

27A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

28

7033860

Coupling

(SUB FOR AP36093)

1шт.

29

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

30

Grommet

(SUB FOR AT126267) ( 4184582 NLA)

1шт.

31

4190261

Clip

(SUB FOR TH109649)

1шт.

32

19M7938

Cap Screw

M10 X 20

1шт.

33

12M7066

Lock Washer

10 mm

1шт.
