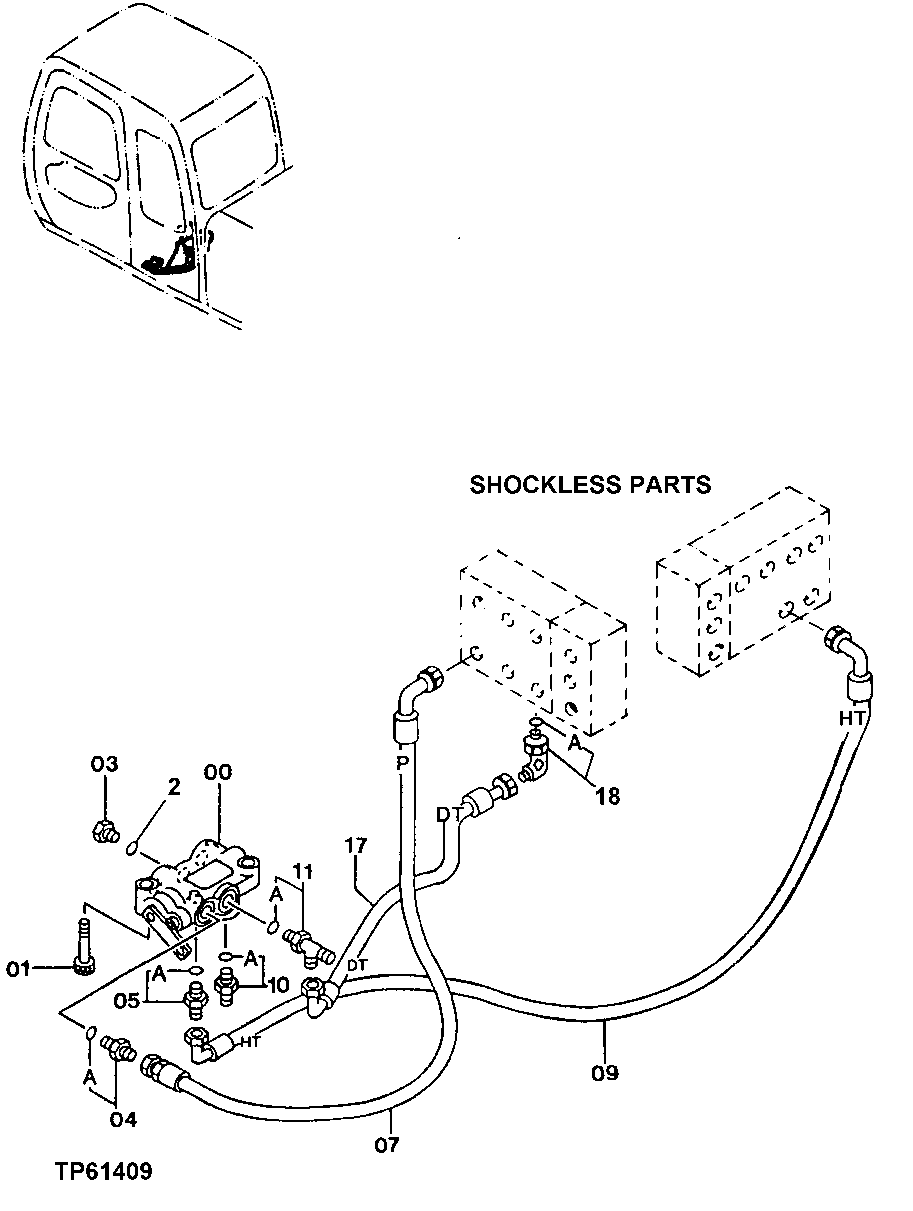

Запчасти John Deere 0 179 - PILOT HOSES (PILOT SHUT-OFF VALVE TO FLOW REGULATING VALVE) 3360 Hydraulic System

0

4334827

Flow Control Hyd. Valve

(SUB FOR AT213862) (LOCK)

1шт.

1

J781045

Screw

(SUB FOR AT213616)

2шт.

2

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

3

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

1шт.

4

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

4261937

Filter

(SUB FOR AP35920)

1шт.

5A

M800650

Packing

1шт.

7

4349805

Hydraulic Hose

(SUB FOR AT250597)

1шт.

9

4389940

Hydraulic Hose

(SUB FOR AT250670)

1шт.

10

4200468

Adapter Fitting

(SUB FOR AT126336)

1шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4208909

Tee Fitting

(SUB FOR AT126454)

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

17

4393601

Hydraulic Hose

(SUB FOR AT250685)

1шт.

18

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

18A

M800650

Packing

1шт.
