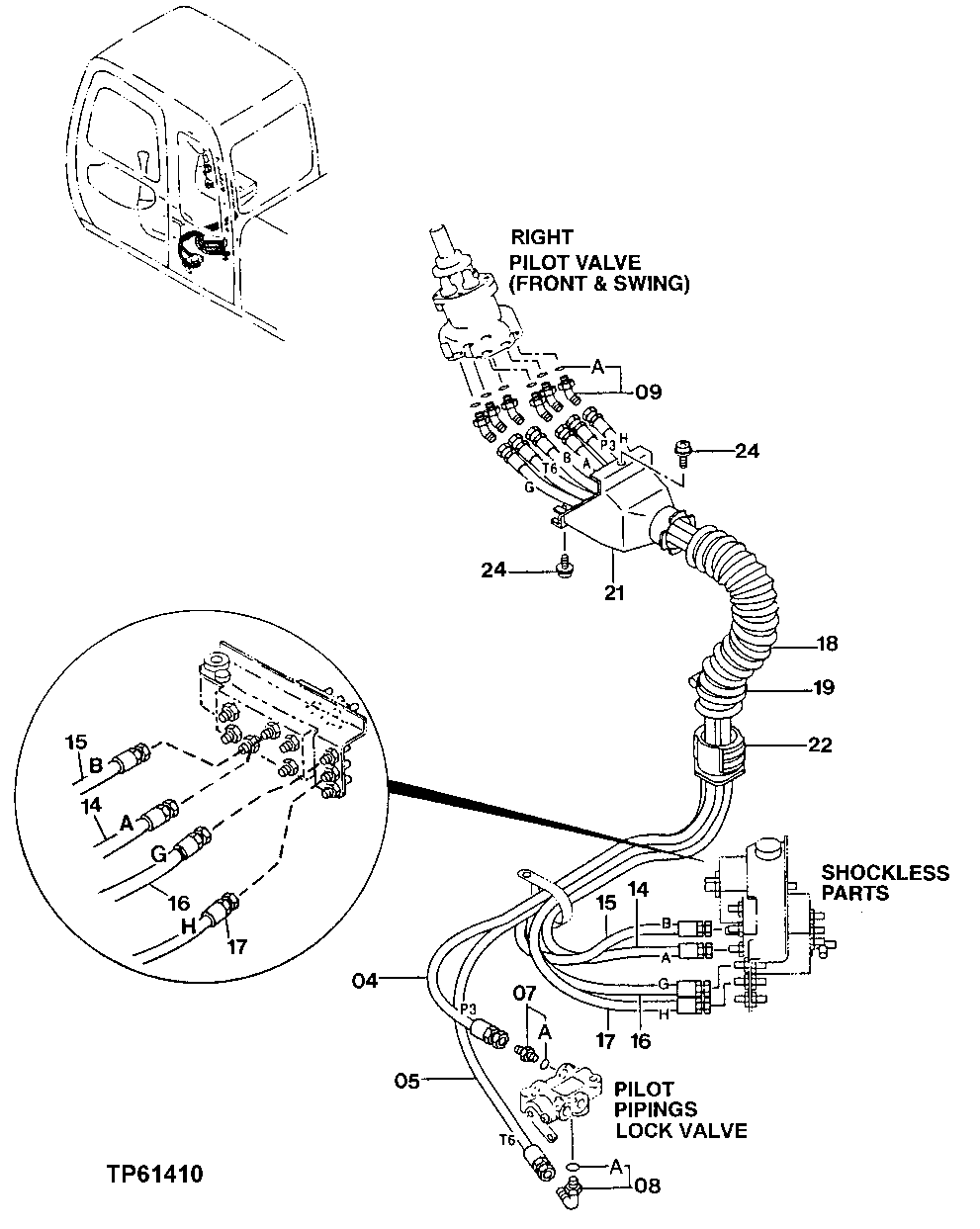

Запчасти John Deere 0 178 - PILOT HOSES (RIGHT CONTROLLER TO SHUT-OFF VALVE AND FLOW REGULATOR) 3360 Hydraulic System

4

4378629

Hydraulic Hose

(SUB FOR AT250652)

1шт.

5

4378630

Hydraulic Hose

(SUB FOR AT250653)

1шт.

7

4374837

Fitting

(SUB FOR AT250643)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4200470

Elbow Fitting

(SUB FOR AT131737)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

4193826

Elbow Fitting

(SUB FOR TH106467)

6шт.

9A

M800650

Packing

1шт.

14

4378625

Hydraulic Hose

(SUB FOR AT250648) (BOOM RAISE)

1шт.

15

4378626

Hydraulic Hose

(SUB FOR AT250649) (BOOM LOWER)

1шт.

16

4378627

Hydraulic Hose

(SUB FOR AT250650) (BUCKET ROLL-IN)

1шт.

17

4378628

Hydraulic Hose

(SUB FOR AT250651) (BUCKET ROLL-OUT)

1шт.

18

4351175

Hose

(SUB FOR AT213957)

1шт.

19

4351774

Clamp

(SUB FOR AT213962)

1шт.

21

3072745

Cover

(SUB FOR AT213784)

1шт.

22

3079728

Bushing

(SUB FOR AT250589)

1шт.

24

Screw With Washer

(SUB FOR AT200012) ( J460620 NLA )

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.
