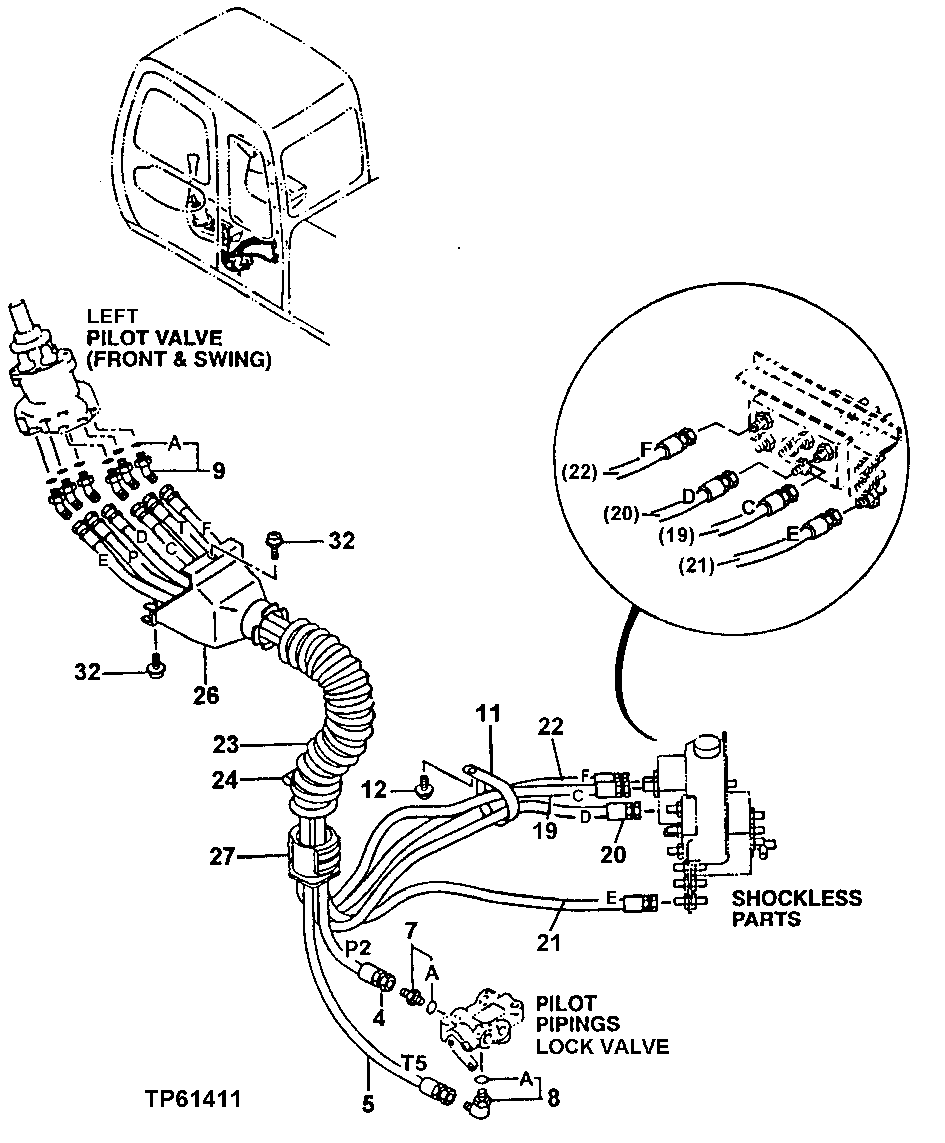

Запчасти John Deere 0 177 - PILOT HOSES (LEFT PILOT CONTROLLER TO FLOW REGULATOR, SHUT-OFF VALVE) 3360 Hydraulic System

4

4378635

Hydraulic Hose

(SUB FOR AT250658)

1шт.

5

4378636

Hydraulic Hose

(SUB FOR AT250659)

1шт.

7

4374837

Fitting

(SUB FOR AT250643)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4200470

Elbow Fitting

(SUB FOR AT131737)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

4193826

Elbow Fitting

(SUB FOR TH106467)

6шт.

9A

M800650

Packing

1шт.

11

R134002

Clamp

(SUB FOR TH111255 ) (SUB FOR 4193816)

1шт.

12

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

19

4378631

Hydraulic Hose

(SUB FOR AT250654) (SWING LEFT)

1шт.

20

4378632

Hydraulic Hose

(SUB FOR AT250655) (SWING RIGHT)

1шт.

21

4378631

Hydraulic Hose

(ARM ROLL-IN) (SUB FOR AT2 50656 ) (SUB FOR AT250654)

1шт.

22

4378634

Hydraulic Hose

(SUB FOR AT250657) (ARM ROLL-OUT)

1шт.

23

4351175

Hose

(SUB FOR AT213957)

1шт.

24

4351774

Clamp

(SUB FOR AT213962)

1шт.

26

3072745

Cover

(SUB FOR AT213784)

1шт.

27

3079728

Bushing

(SUB FOR AT250589)

1шт.

32

Screw With Washer

(SUB FOR AT200012) ( J460620 NLA )

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.
