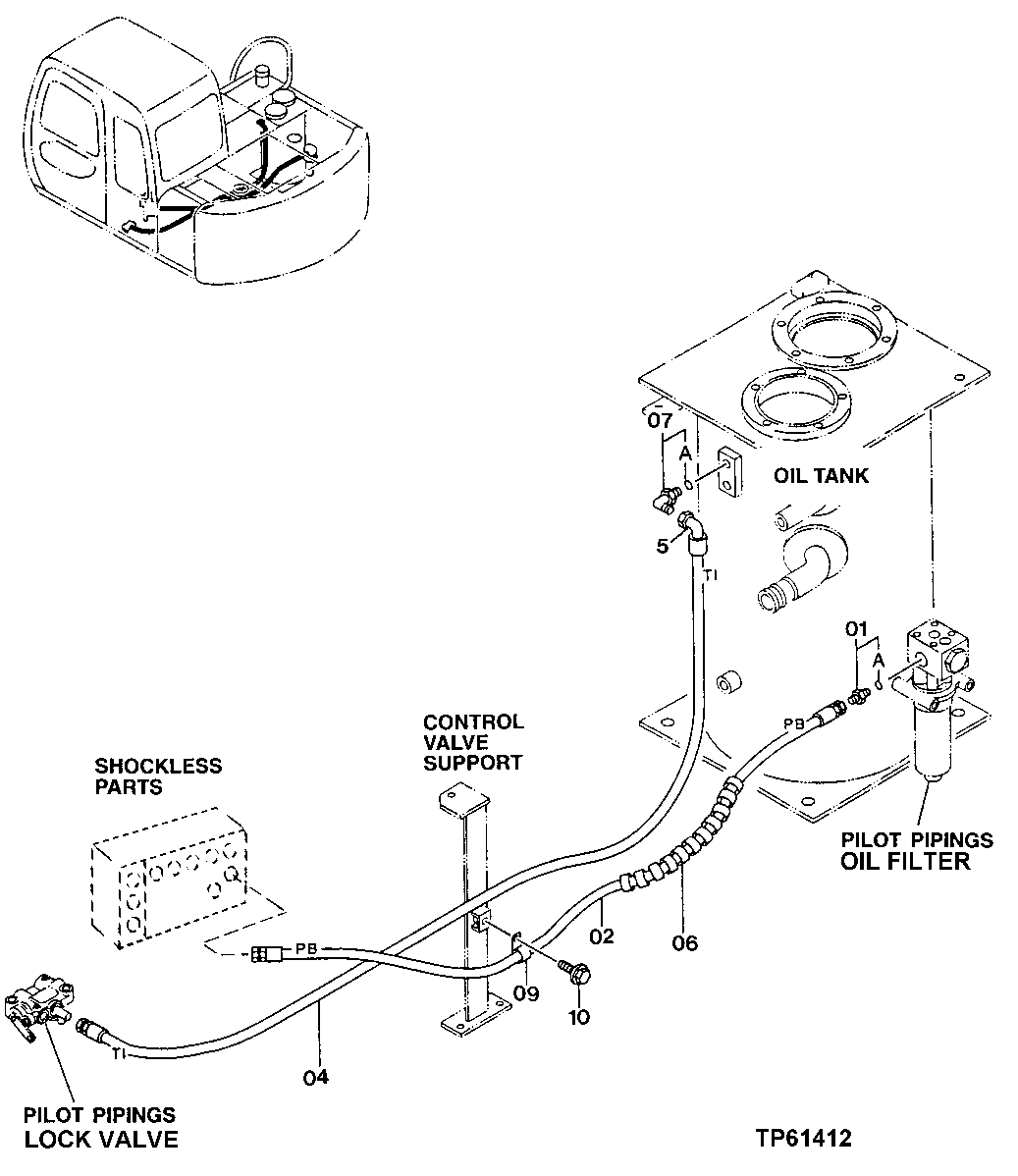

Запчасти John Deere 0 174 - PILOT HOSES (RESERVOIR TO FLOW REGULATOR, SHUT-OFF VALVE TO FILTER) 3360 Hydraulic System

1

4200469

Adapter Fitting

SUB FOR TH108400

1шт.

1A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

2

AP35893

Hydraulic Hose

1шт.

4

AE42000

Hydraulic Hose

9/16" X 2000 mm (78-3/4") X 9/16"

1шт.

5

AE24616

Elbow Fitting

1шт.

6

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

1шт.

7

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

R73384

Clamp

SUB FOR TH108597 OR 4190253

1шт.

10

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.
