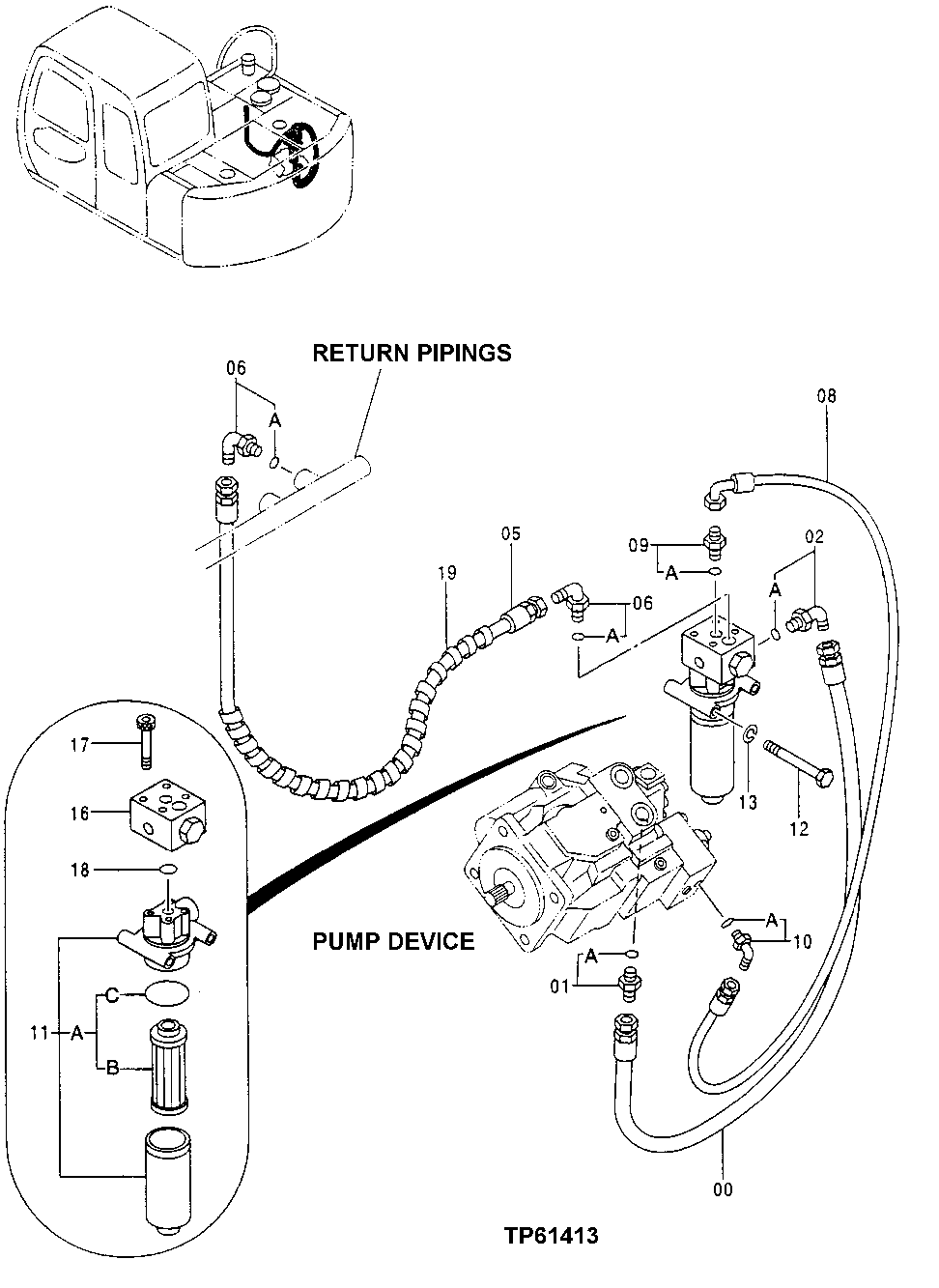

Запчасти John Deere 0 173 - Pilot Hoses and Filter At Pump 3360 Hydraulic System

0

AP36458

Hydraulic Hose

1шт.

1

X8-10F5OX

Adapter Fitting

SUB FOR TH101006

1шт.

1A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

2

4154672

Elbow Fitting

SUB FOR TH101008

1шт.

2A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

5

AP35892

Hydraulic Hose

1шт.

6

4200471

Elbow Fitting

SUB FOR TH108399

2шт.

6A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

8

AP35895

Hydraulic Hose

1шт.

9

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

9A

M800650

Packing

1шт.

10

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

10A

M800650

Packing

1шт.

11

4330227

Filter Head

SUB FOR AT213834

1шт.

11A

AT186554

Filter Element

SUB FOR AT214263 OR AT147821

1шт.

11B

Filter Element

1шт.

11C

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

12

19M8343

Cap Screw

M10 X 120

2шт.

13

12M7066

Lock Washer

10 mm

2шт.

16

4378759

Pressure Relief Valve

SUB FOR AP35560

1шт.

17

AT213613

Screw

4шт.

18

4506416

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") SUB FOR TH102561

1шт.

19

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

2шт.
