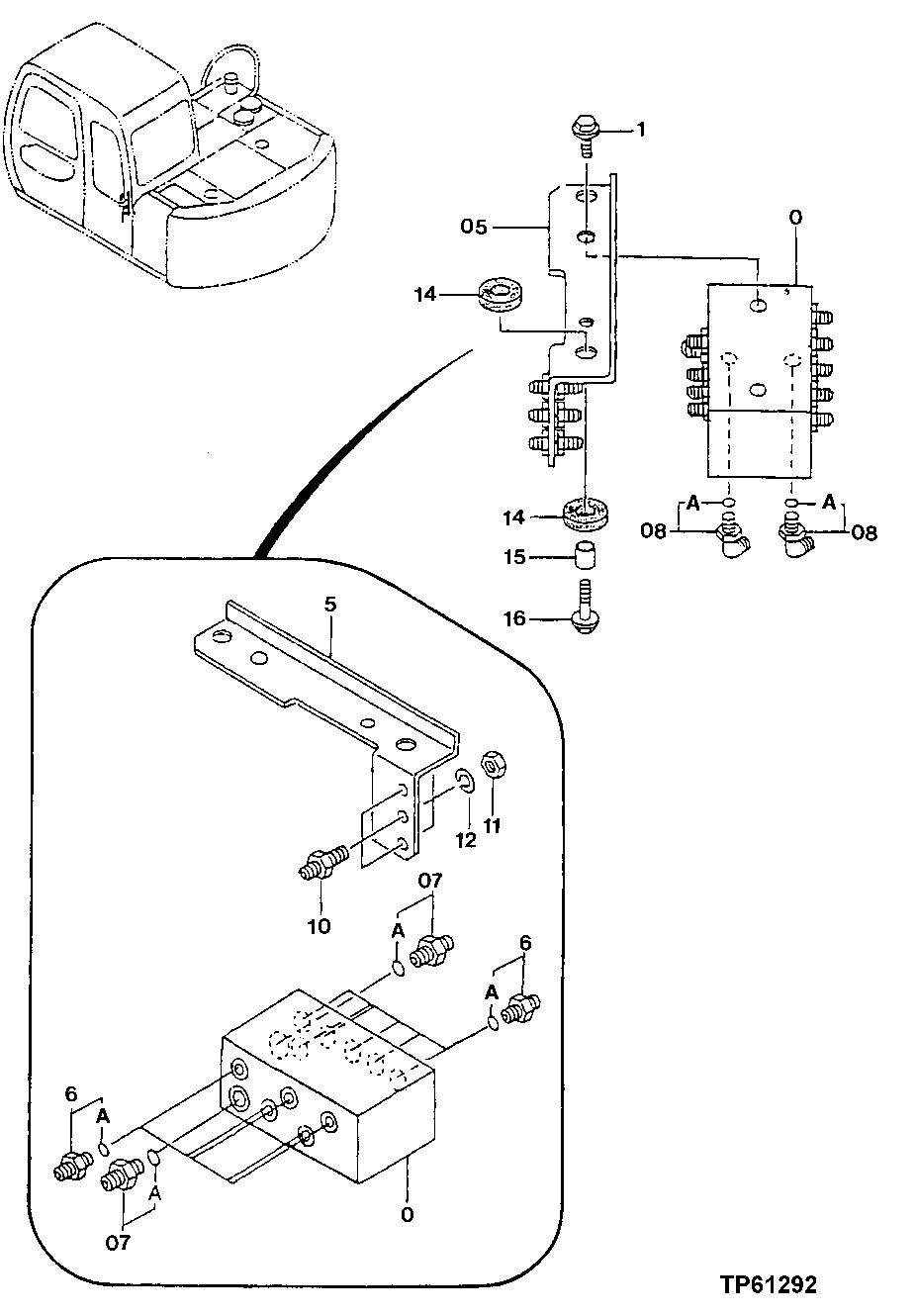

Запчасти John Deere 0 172 - PILOT SYSTEM FLOW REGULATING VALVE AND MOUNTING BRACKETS 3360 Hydraulic System

0

4405297

Hyd Actuated Control Valve

(SUB FOR AT250660) (FLOW CONTROL)

1шт.

1

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

5

3084285

Bracket

(SUB FOR AT250583)

1шт.

6

4200465

Adapter Fitting

(SUB FOR TH108328)

11шт.

6A

M800650

Packing

1шт.

7

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

8A

M800650

Packing

1шт.

10

4374276

Adapter Fitting

(SUB FOR AT250640)

3шт.

11

14H934

Nut

7/16"

3шт.

12

12M7014

Lock Washer

12 mm

3шт.

14

4284208

Isolator

(SUB FOR AT200487)

4шт.

15

4283526

Spacer

10.400 X 15 X 18.500 mm (0.409" X 0.591" X 0.728") (SUB FOR AT200486)

2шт.

16

19M7358

Cap Screw

M10 X 40 (SUB FOR AT200009 OR J031040, USE ALONG WITH 12M7066 , AND 24M7296)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.
