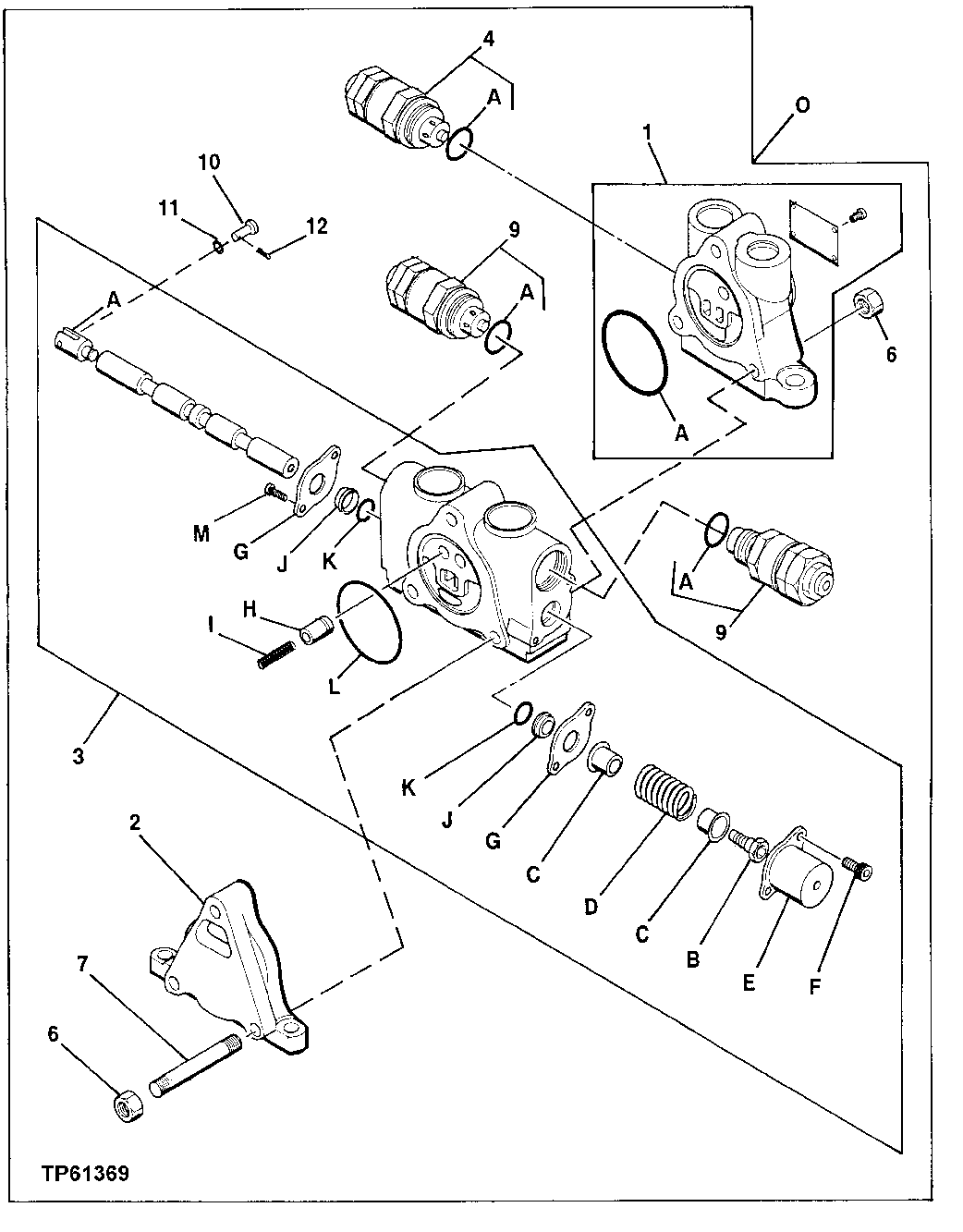

Запчасти John Deere 0 171 - CONTROL VALVE COMPONENTS (SPOOL VALVE, RELIEF VALVE) 3360 Hydraulic System

0

4368270

Hyd Actuated Control Valve

(WITHOUT OFFSET BOOM) (SUB FOR AP35928 ( CONTAINS ALL ITEMS ON THIS PAGE - ADDITIO NAL COMPONENTS LISTED ON PREVIOUS PAGES))

1шт.

4401863

Hyd Actuated Control Valve

(WITH OFFSET BOOM) (ADDITION AL COMPONENTS ON OTHER PAGES)

1шт.

1

0651601

Port Plate

(SUB FOR AT250514)

1шт.

1A

CH17260

Packing

1шт.

2

0295601

Flow Control Hyd. Valve

(SUB FOR TH106884)

1шт.

3

0651603

Spool Valve

(SUB FOR AT250515)

1шт.

3A

0219003

Yoke

(SUB FOR TH106886)

1шт.

3B

0219004

Screw

(SUB FOR AT250461)

1шт.

3C

0219005

Retainer

(SUB FOR AT250462)

2шт.

3D

0429408

Spring

(SUB FOR AT250467)

1шт.

3E

0219007

Cap

(SUB FOR AT250463)

1шт.

3F

0429306

Screw

(SUB FOR AT250466)

2шт.

3G

0219008

Plate

(SUB FOR TH106889)

2шт.

3H

0429305

Adapter Fitting

(SUB FOR AT250465)

1шт.

3I

0219010

Spring

(SUB FOR AT250464)

1шт.

3J

0219011

Seal

(SUB FOR TH106891)

2шт.

3K

CH10568

Packing

2шт.

3L

CH17260

Packing

1шт.

3M

21M7278

Screw

M5 X 10

2шт.

4

4360508

Pressure Relief Valve

(SUB FOR AT250611)

1шт.

4A

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

6

14M7273

Nut

M8

6шт.

7

0651604

Stud

(SUB FOR AT250516)

3шт.

9

4360507

Pressure Relief Valve

(SUB FOR AT250612)

2шт.

9A

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

10

0295608

Pin

(SUB FOR TH108148)

1шт.

11

24M7043

Washer

12 X 25 X 3 mm (SUB FO R TH108149 OR 0295609)

1шт.

12

11M7075

Cotter Pin

1.200 X 12 mm

1шт.
